RAM Mounts Round Plate with Ball, C-Size, AMPS Pattern (RAM-202U)

RAM Mounts Round Plate with Ball, C-Size, AMPS Pattern (RAM-202U) combines a C-size (1.5") overmoulded rubber ball with a 63.5 mm (2.5") round plate of powder-coated marine-grade aluminium. The plate is pre-drilled with the universal 4-hole AMPS pattern (30 × 38 mm) and a 3-hole 120° pattern (Ø 46 mm), so it works both as a drill-down base on a dashboard, console, forklift or desk and as an adapter that puts a C-size ball on any cradle or holder with an AMPS pattern. RAM also uses this plate as a component of kits such as RAM-103U-D and RAM-224-3U.

Key Features

• AMPS round plate – Ø 63.5 mm (2.5") with 4-hole AMPS (30 × 38 mm) and 3-hole 120° (Ø 46 mm) patterns
• Two uses – drill-down base on a flat surface or adapter for holders with a matching hole pattern
• C-size (1.5") rubber ball – connects to any RAM C-size double socket arm, with near-infinite adjustment
• Load rating – up to 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use
• Material – powder-coated marine-grade aluminium
• Lifetime warranty – backed by RAM Mounts

Compatibility

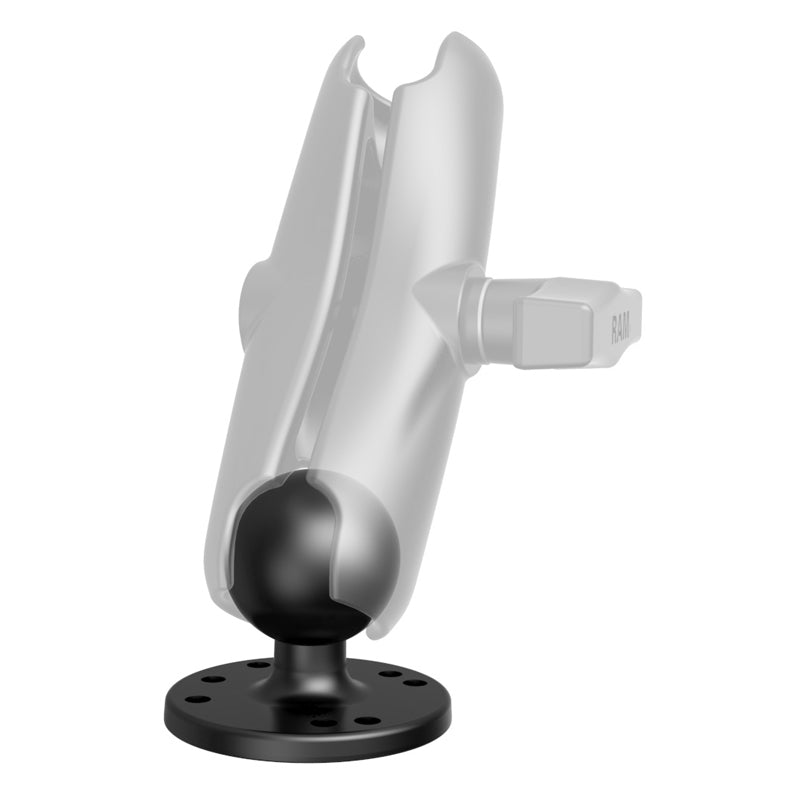

• All RAM C-size (1.5") double socket arms

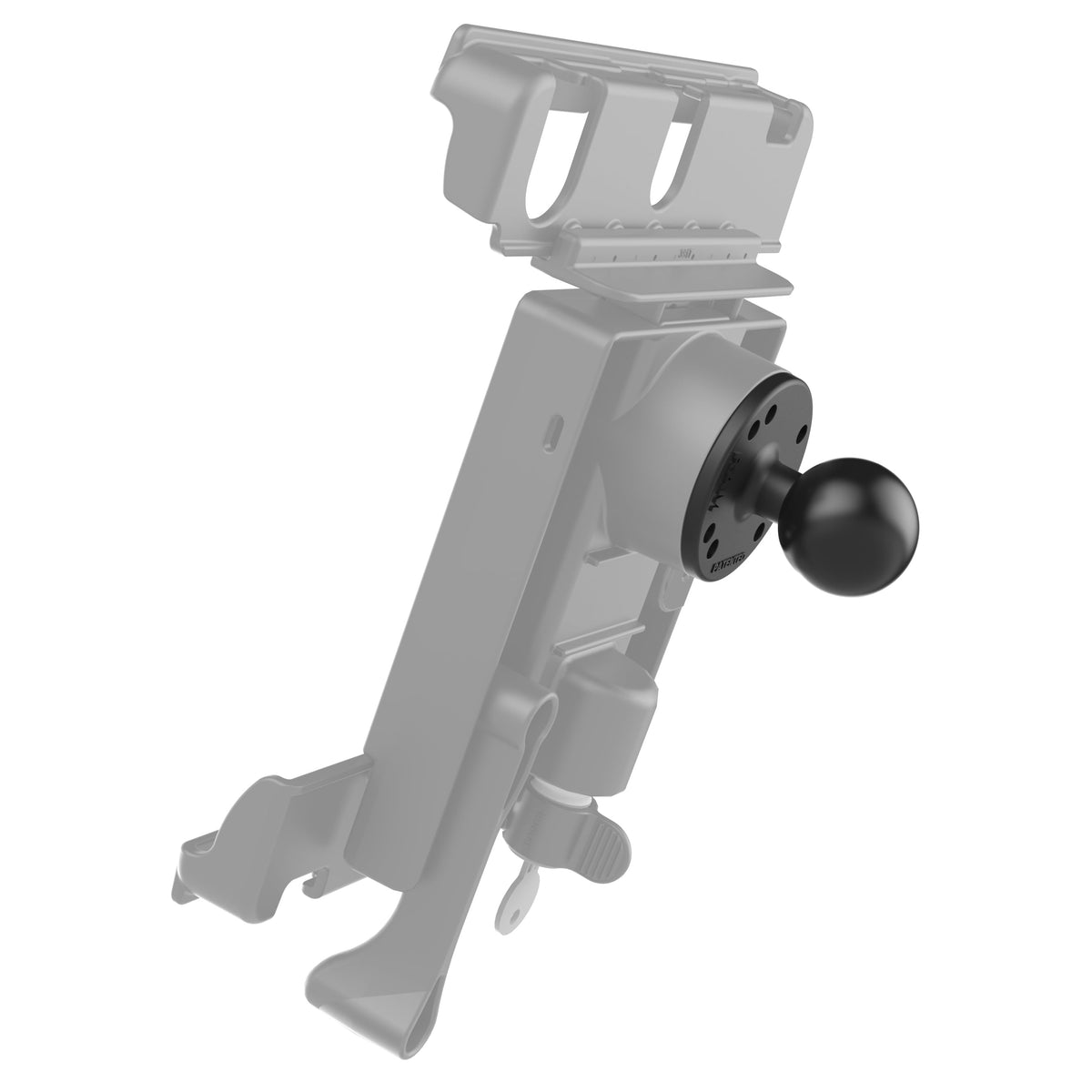

• Device holders and cradles with the 4-hole AMPS pattern (30 × 38 mm)
• Accessories with the 3-hole 120° pattern (Ø 46 mm)
• Flat mounting surfaces (screw-on installation)
