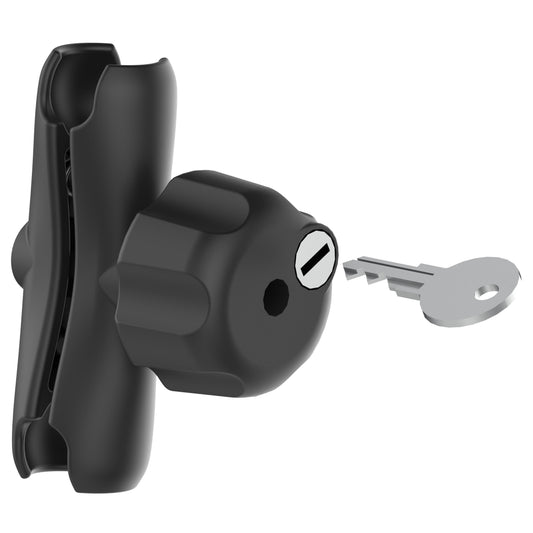

RAM Mounts Double Socket Arm with Key-Lock Knob, C-Size, Medium, 145 mm (RAM-201LU)

RAM Mounts Double Socket Arm with Key-Lock Knob, C-Size, Medium, 145 mm (RAM-201LU) is the connecting link of the RAM ball-and-socket system: it joins two RAM C-size (1.5") ball components – typically a ball base fixed in a vehicle, on a forklift or at a workstation and a device holder or cradle with a matching ball. With 144.5 mm (5.69") overall and 118.4 mm (4.66") between the sockets, it is RAM's standard medium-length arm. A spring inside the arm keeps the sockets open for easy fitting, and turning the knob clamps both ball joints firmly at the angle you need. The supplied key-lock knob with brass insert (2 keys) locks the arm once the device is positioned: when locked, the knob spins freely, so the arm cannot be loosened without the key.

Key Features

• Length – 144.5 mm (5.69") overall, 118.4 mm (4.66") socket to socket
• C-size (1.5") sockets – fit any RAM C-size ball base, adapter or device holder, with near-infinite adjustment
• Load rating – up to 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use
• Material – powder-coated marine-grade aluminium
• Key-lock knob – protects the arm against unauthorised loosening; 2 keys included
• Lifetime warranty – backed by RAM Mounts

Compatibility

• All RAM C-size (1.5") ball bases, ball adapters and device holders

Technical Specifications

More RAM ball bases, socket arms and mounting kits are waiting in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
