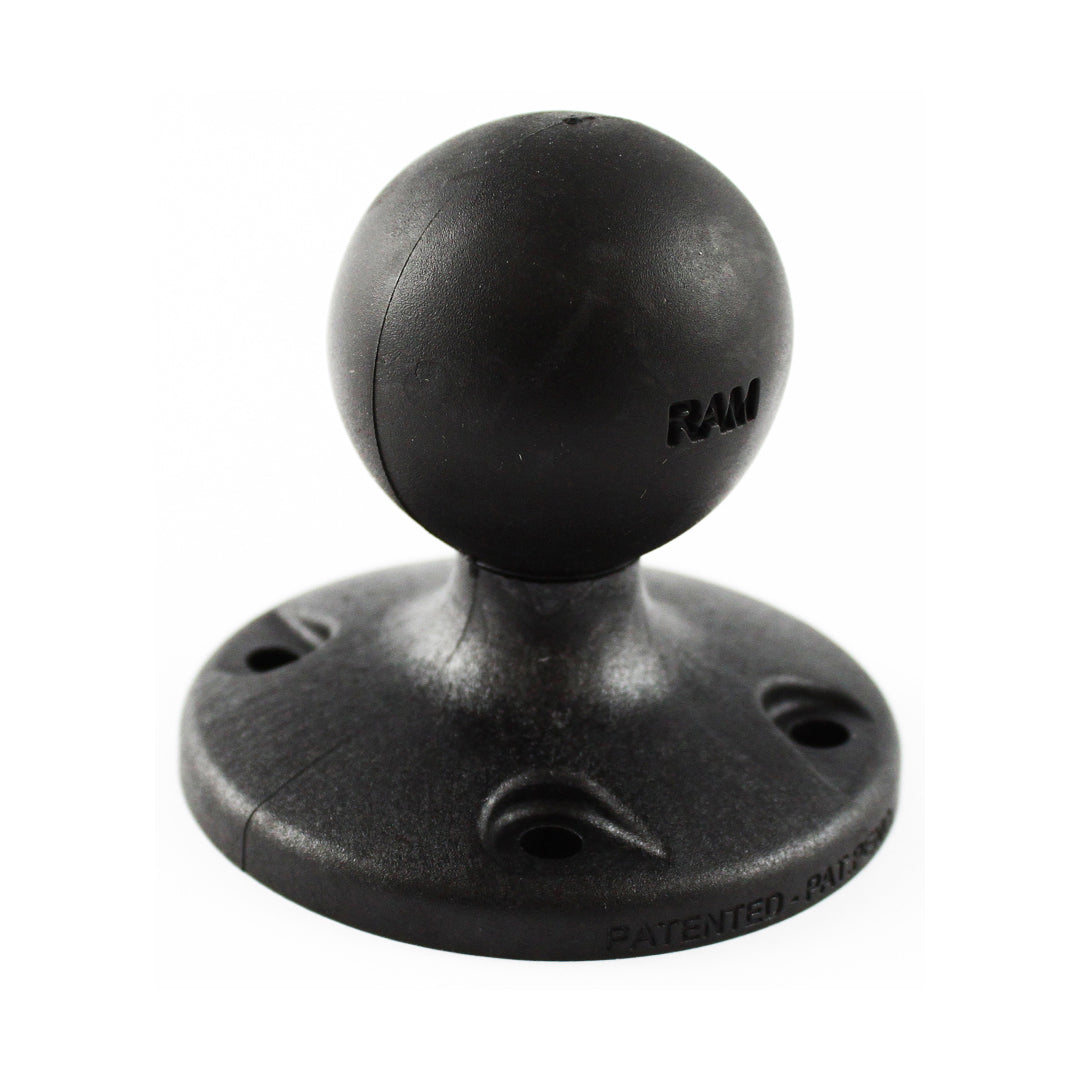

RAM Mounts Composite Round AMPS Plate with Ball, C-Size (RAP-202U)
Regular price
13,12 € +VAT
RAM Mounts Composite Round AMPS Plate with Ball (RAP-202U) is a 63.5 mm (2.5") round composite plate with a C-size 1.5" (38 mm) rubber ball that fits any RAM C-size double socket arm. Its four pre-drilled holes follow the universal AMPS pattern (30 × 38 mm), so it screws straight onto RAM holders and cradles with an AMPS pattern or onto any flat surface. The high-strength composite keeps it light yet durable.
📦 What's in the box – RAP-202U
- Composite Round AMPS Plate with Ball – with C-size 1.5" rubber ball
💡 To get started, you might also consider a medium C-size double socket arm and a second ball base for the mounting surface, such as the aluminium round AMPS plate or the double U-bolt base for rails.
Key Features
- AMPS hole pattern – 4 holes, 30 × 38 mm (1.181 × 1.496"), for RAM holders, cradles and flat surfaces
- C-size ball – 1.5" (38 mm) rubber ball fits any RAM C-size double socket arm; the ball-and-socket joint allows near-infinite adjustment
- Load rating – 4 lb (1.8 kg) standard use, 3 lb (1.4 kg) heavy-duty use
- Lightweight and durable – high-strength composite, backed by RAM's lifetime warranty
Compatibility
- RAM holders and cradles with the 4-hole AMPS pattern (30 × 38 mm)
- Flat surfaces for drill-down installation
- All RAM C-size (1.5") double socket arms and C-size ball components
Technical Specifications
| Part Number | RAP-202U |
|---|---|
| Product Type | Ball plate with AMPS pattern |
| Connection | RAM C-size ball, 1.5" (38 mm) |
| Hole Pattern | 4-hole AMPS, 30 × 38 mm (1.181 × 1.496") |
| Plate Size | Ø 63.5 mm (2.5") |
| Load Rating | 4 lb (1.8 kg) standard use, 3 lb (1.4 kg) heavy-duty use |
| Material | High-strength composite |
| Weight | 0.08 kg (0.17 lb) |
| Warranty | Lifetime warranty (RAM Mounts) |
| In the Box | Composite Round AMPS Plate with Ball |
Looking for a device to mount? Browse our Tablet Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
Available Versions
| Part Number | Ball size | Material | Hole pattern | Price | ||
|---|---|---|---|---|---|---|
 |
RAM-D-254-WD1U | D (2.25") | Aluminum | AMPS + 3-hole 120° | 33,47 €+VATOut of Stock | View |
 |
RAM-D-254U | D (2.25") | Aluminum | AMPS (30 × 38 mm) | 30,06 €+VATIn Stock | |
 |
RAM-D-254U-IN1 | D (2.25") | Aluminum (steel-reinforced) | AMPS (30 × 38 mm) | 36,05 €+VATOut of Stock | View |
 |
RAP-202UViewing | C (1.5") | Composite | AMPS (30 × 38 mm) | 13,12 €+VATOut of Stock |
No matching products.
Accessories
| Product | Price | ||
|---|---|---|---|
 |
RAM Mounts Double Socket Arm, C-Size, Medium, 145 mmRAM-201U | 29,32 €+VATIn Stock | |
 |
RAM Mounts Double Socket Arm, C-Size, Short, 90 mmRAM-201U-B | 26,91 €+VATIn Stock | |
 |
RAM Mounts Double Socket Arm, C-Size, Long, 232 mmRAM-201U-D | 54,73 €+VATIn Stock | |
 |
RAM Mounts Round Plate with Ball, C-Size, AMPS PatternRAM-202U | 16,47 €+VATIn Stock | |
 |
RAM Mounts Double U-Bolt Ball Base for 1"–1.25" (25–32 mm) Rails, C-SizeRAM-235U | 30,92 €+VATIn Stock | |
 |
RAM Mounts Diamond Ball Base with 2-Hole AMPS Pattern, C-SizeRAM-238U | 15,15 €+VATIn Stock |
