RAM Mounts Round Plate with Ball, 7-Hole AMPS & 120° Pattern, D-Size (RAM-D-254-WD1U)
Regular price
33,47 € +VAT

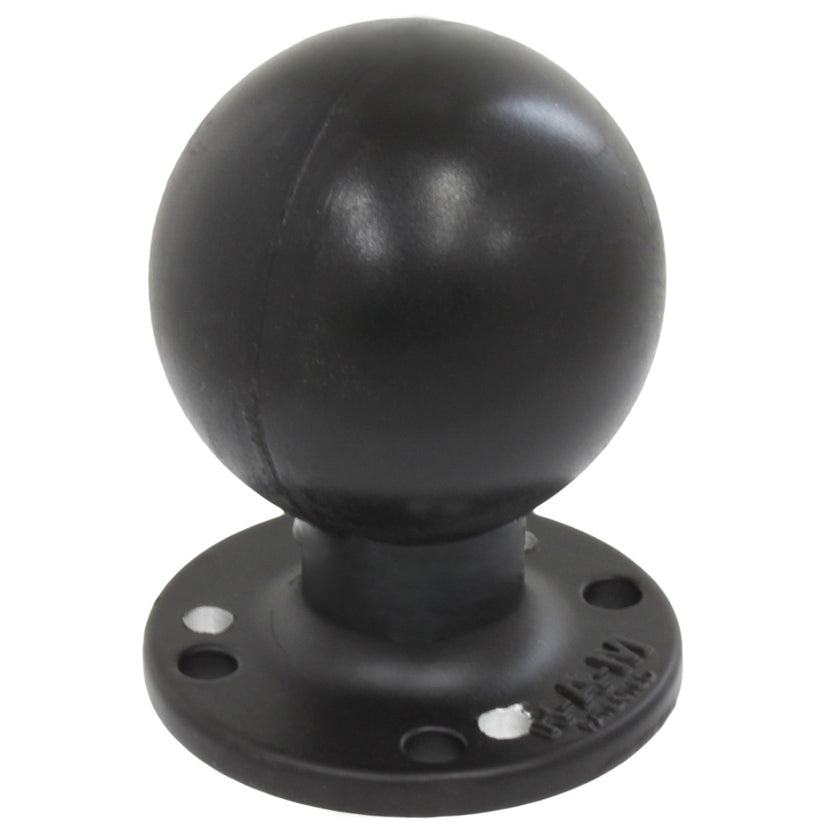

RAM Mounts Round Plate with Ball, 7-Hole AMPS & 120° Pattern (RAM-D-254-WD1U) is a 63.5 mm (2.5") round aluminium plate with a D-size 2.25" (57 mm) rubber ball that fits any RAM D-size double socket arm. Its seven pre-drilled holes combine the 4-hole AMPS pattern (30 × 38 mm) with a 3-hole 120° pattern on a 46 mm (1.812") circle, so it fits RAM holders and cradles as well as flat surfaces. Powder-coated marine-grade aluminium keeps it durable in vehicles, on equipment and outdoors.
📦 What's in the box – RAM-D-254-WD1U
- Round Plate with Ball, 7-Hole AMPS & 120° Pattern – with D-size 2.25" rubber ball
💡 To get started, you might also consider a short D-size double socket arm and a base for the vehicle or workstation side, such as the D-size square post clamp base or the D-size large round plate.
Key Features
- 7-hole plate – 4-hole AMPS (30 × 38 mm) plus 3-hole 120° pattern on a 46 mm (1.812") circle

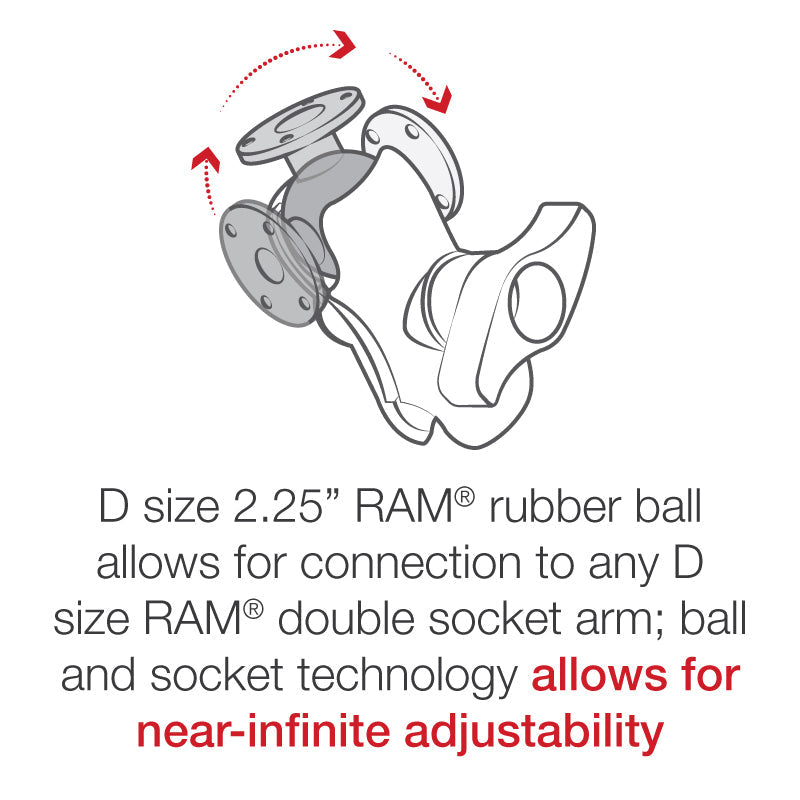

- D-size ball – 2.25" (57 mm) rubber ball fits any RAM D-size double socket arm; the ball-and-socket joint allows near-infinite adjustment
- Load rating – 6 lb (2.7 kg) standard use, 5 lb (2.3 kg) heavy-duty use
- Rugged build – powder-coated marine-grade aluminium, backed by RAM's lifetime warranty
Compatibility
- RAM holders and cradles with the 4-hole AMPS pattern (30 × 38 mm)
- Devices and brackets with a 3-hole 120° pattern on a 46 mm (1.812") circle
- Flat surfaces for drill-down installation
- All RAM D-size (2.25") double socket arms and D-size ball components
Technical Specifications
| Part Number | RAM-D-254-WD1U |
|---|---|
| Product Type | Ball plate with AMPS pattern |
| Connection | RAM D-size ball, 2.25" (57 mm) |
| Hole Pattern | 4-hole AMPS 30 × 38 mm + 3-hole 120° on Ø 46 mm (1.812") |
| Plate Size | Ø 63.5 mm (2.5") |
| Load Rating | 6 lb (2.7 kg) standard use, 5 lb (2.3 kg) heavy-duty use |
| Material | Powder-coated marine-grade aluminium |
| Weight | 0.23 kg (0.5 lb) |
| Warranty | Lifetime warranty (RAM Mounts) |
| In the Box | Round Plate with Ball, 7-Hole AMPS & 120° Pattern |
Looking for a device to mount? Browse our Vehicle Mount Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
Available Versions
| Part Number | Ball size | Material | Hole pattern | Price | ||
|---|---|---|---|---|---|---|
 |
RAM-D-254-WD1UViewing | D (2.25") | Aluminum | AMPS + 3-hole 120° | 33,47 €+VATOut of Stock | |
 |
RAM-D-254U | D (2.25") | Aluminum | AMPS (30 × 38 mm) | 30,06 €+VATIn Stock | |
 |
RAM-D-254U-IN1 | D (2.25") | Aluminum (steel-reinforced) | AMPS (30 × 38 mm) | 36,05 €+VATOut of Stock | View |
 |
RAP-202U | C (1.5") | Composite | AMPS (30 × 38 mm) | 13,12 €+VATOut of Stock | View |
