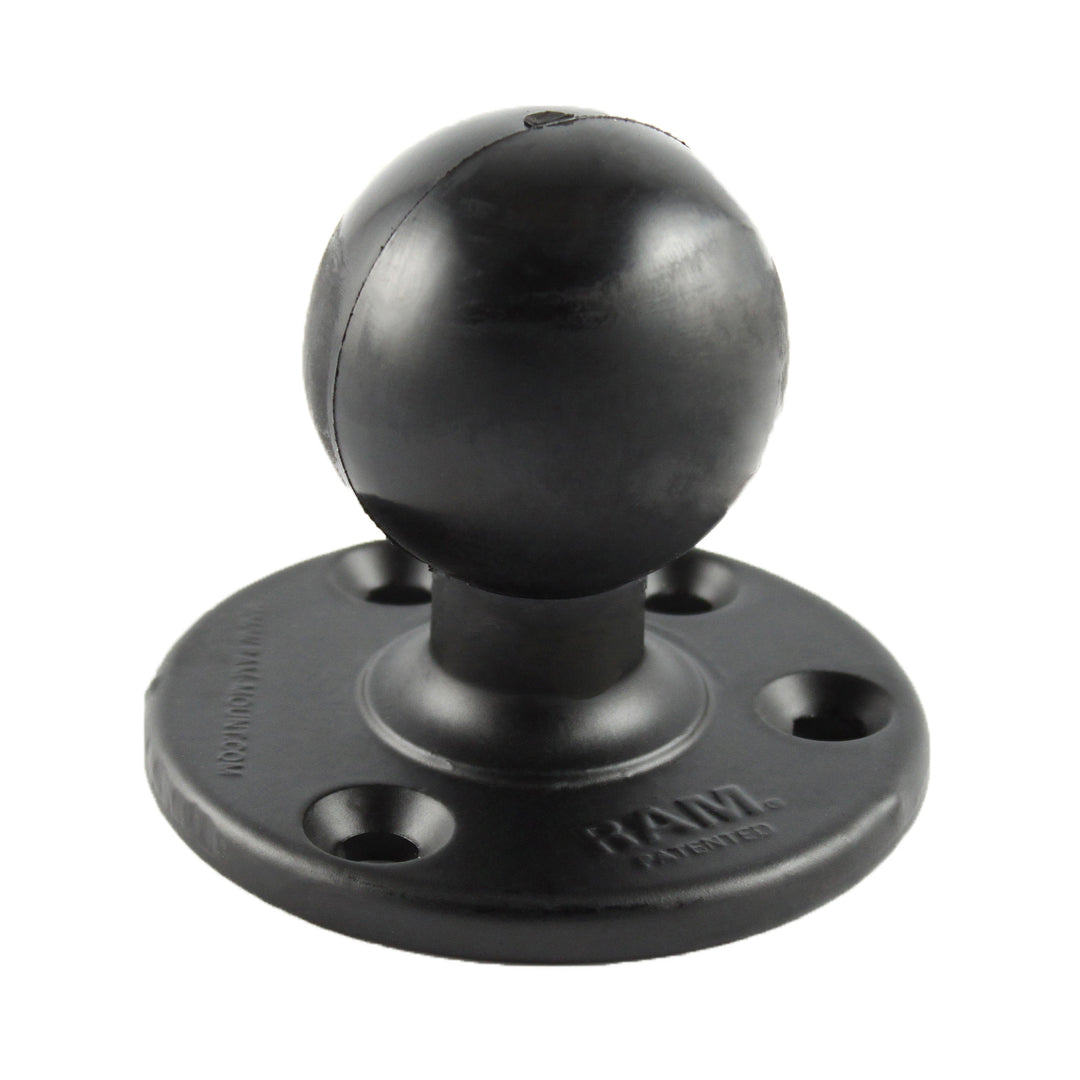

RAM Mounts Large Round Plate with Ball, D-Size (RAM-D-202U)

RAM Mounts Large Round Plate with Ball (RAM-D-202U) is a 93.5 mm (3.68") round aluminium plate with a D-size 2.25" (57 mm) rubber ball that fits any RAM D-size double socket arm. Pre-drilled holes – two at 180° and three at 120° – let you attach it to a device with a matching pattern or drill it down to a dashboard, console, desk or other flat surface for a permanent installation. Powder-coated marine-grade aluminium keeps it durable in vehicles, on equipment and outdoors.

Key Features

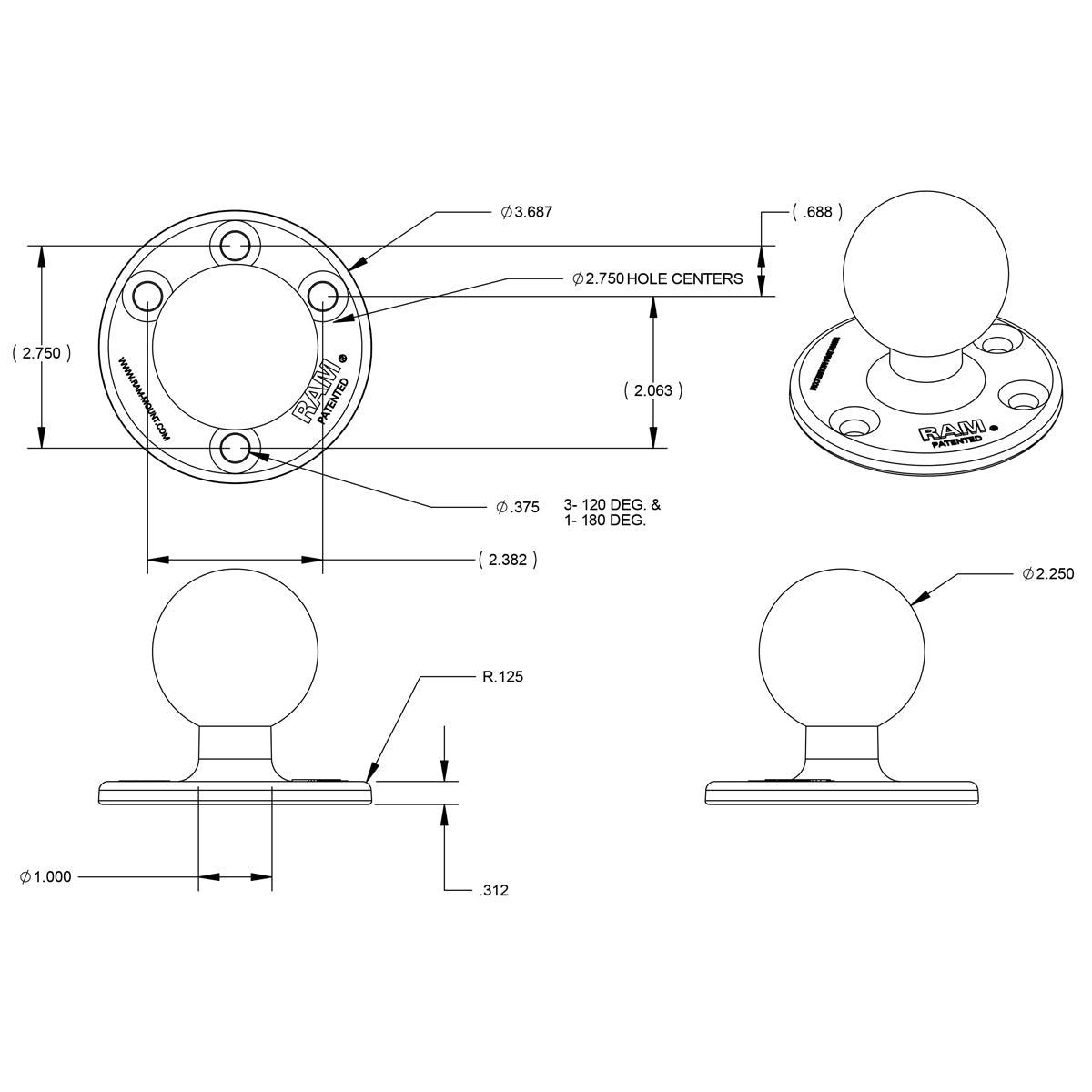

• Large 93.5 mm round plate – pre-drilled holes (2 × 180°, 3 × 120°) for drill-down mounting or devices with a matching pattern
• D-size ball – 2.25" (57 mm) rubber ball fits any RAM D-size double socket arm; the ball-and-socket joint allows near-infinite adjustment
• Load rating – 6 lb (2.7 kg) standard use, 5 lb (2.3 kg) heavy-duty use
• Rugged build – powder-coated marine-grade aluminium, backed by RAM's lifetime warranty

Compatibility

• Devices with a matching hole pattern (2 holes at 180°, 3 holes at 120°)
• Flat surfaces for drill-down installation
• All RAM D-size (2.25") double socket arms and D-size ball components

Technical Specifications
