| Dalies numeris | XD5-43dOEBK |

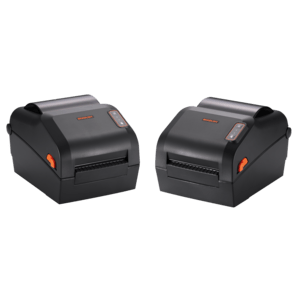

| Modelis | BIXOLON XD5-43d (XD5-40 Series) |
| Spausdintuvo tipas | 4-inch desktop direct thermal label printer |
| Spausdinimo būdas | Direct thermal |
| Skyra | 300 dpi (12 dots/mm) |
| Spausdinimo greitis | Up to 127 mm/s (5 ips) |
| Didž. spausdinimo plotis | 105.7 mm (4.16") |
| Didž. spausdinimo ilgis | 1,000 mm (39.4") |
| Laikmenos plotis | 15–118 mm (0.59"–4.65"), incl. liner |
| Laikmenos storis | 0.06–0.20 mm |
| Ritinėlio skersmuo | Up to 127 mm (5") OD |
| Šerdies dydis | 25.4–38.1 mm (1"–1.5") |
| Laikmenų tipai | Gap (die-cut), black mark, notch, continuous, fanfold |
| Jutikliai | Transmissive gap sensor (fixed), reflective black-mark sensor (adjustable), head-open sensor |
| Sąsajos | USB (Type B), USB host, RS-232 serial, Ethernet 10/100 Mbps |
| Belaidis ryšys | Bluetooth 5.0 (MFi certified) |
| Atmintis | 64 MB SDRAM, 128 MB Flash |
| Realaus laiko laikrodis | Optional |
| Spausdintuvo kalbos | SLCS™, BPL-Z™ (ZPL II compatible), BPL-E™ (EPL compatible), BPL-D™ (optional) |
| Šriftai / simbolių rinkiniai | Bitmap fonts (10 SLCS, 16 BPL-Z, 5 BPL-E, 9 BPL-D), scalable fonts, 23 code pages, Unicode (UTF-8, UTF-16LE/BE) |
| Brūkšniniai kodai | 1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8/13, Industrial/Interleaved/Standard 2 of 5, LOGMARS, MSI, Plessey, Postnet, GS1 DataBar, UPC-A/E, IMB; 2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39 |
| Ekranas | FSTN LCD, 200 × 100 pixels, with menu buttons |
| Laikmenos apdorojimo parinktys | Tear-off (standard); field-installable peeler and auto cutter (optional) |
| Priedai | Peeler, auto cutter, external paper supply, serial cable |
| Tvarkyklės ir programinė įranga | Windows driver (Europlus / Seagull), Linux/Mac CUPS, virtual COM, OPOS/JPOS, Label Artist™-II, BarTender® UltraLite for BIXOLON, SAP device driver, XPM™/XCM™ management, Android/iOS/Windows/Linux SDKs |
| Maitinimas | External AC/DC power adapter, 100–240 V AC, 50/60 Hz; ENERGY STAR® certified |
| Matmenys (P × G × A) | 194 × 248 × 169 mm |
| Svoris | 1.89 kg |
| Spalva | Black |
| Darbinė temperatūra | 0–40 °C |
| Laikymo temperatūra | −20–60 °C |
| Drėgmė | Operating 10–80% RH, storage 10–90% RH (non-condensing) |
| Garantija | 36 months |
| Pakuotės turinys | BIXOLON XD5-43d printer (300 dpi, USB, USB host, RS-232, Ethernet 10/100 + Bluetooth 5.0, LCD), external AC/DC power adapter (100–240 V AC), power cord (EU plug), USB cable, quick start guide; drivers and Label Artist-II / BarTender UltraLite software as free download – labels NOT included |
