RAM Mounts Drill-Down Dashboard Mount with Backing Plate, C-Size, Short (RAM-101-B-225B2U)

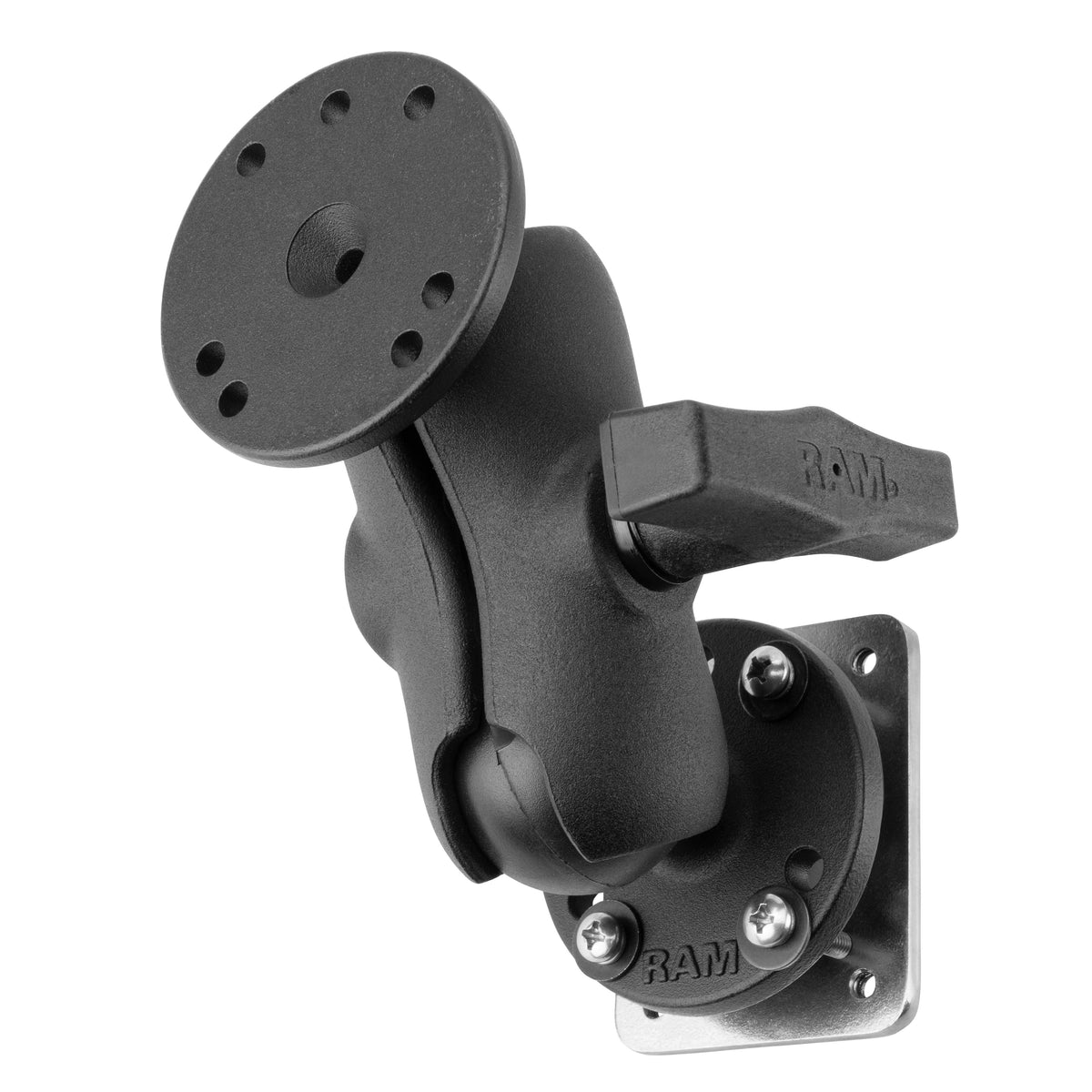

RAM Mounts Drill-Down Dashboard Mount with Backing Plate, C-Size, Short (RAM-101-B-225B2U) pairs any RAM holder or dock with a solid through-bolted dashboard installation. The kit combines two 63.5 mm round C-size (1.5") bases with the universal AMPS pattern, a short 90 mm double socket arm and a 53 × 66 mm steel backing plate with hardware that sits behind the dashboard or panel. The short arm keeps the device close and stable, while the rubber ball-and-socket joints damp shock and vibration in trucks, vans and work vehicles.

Key Features

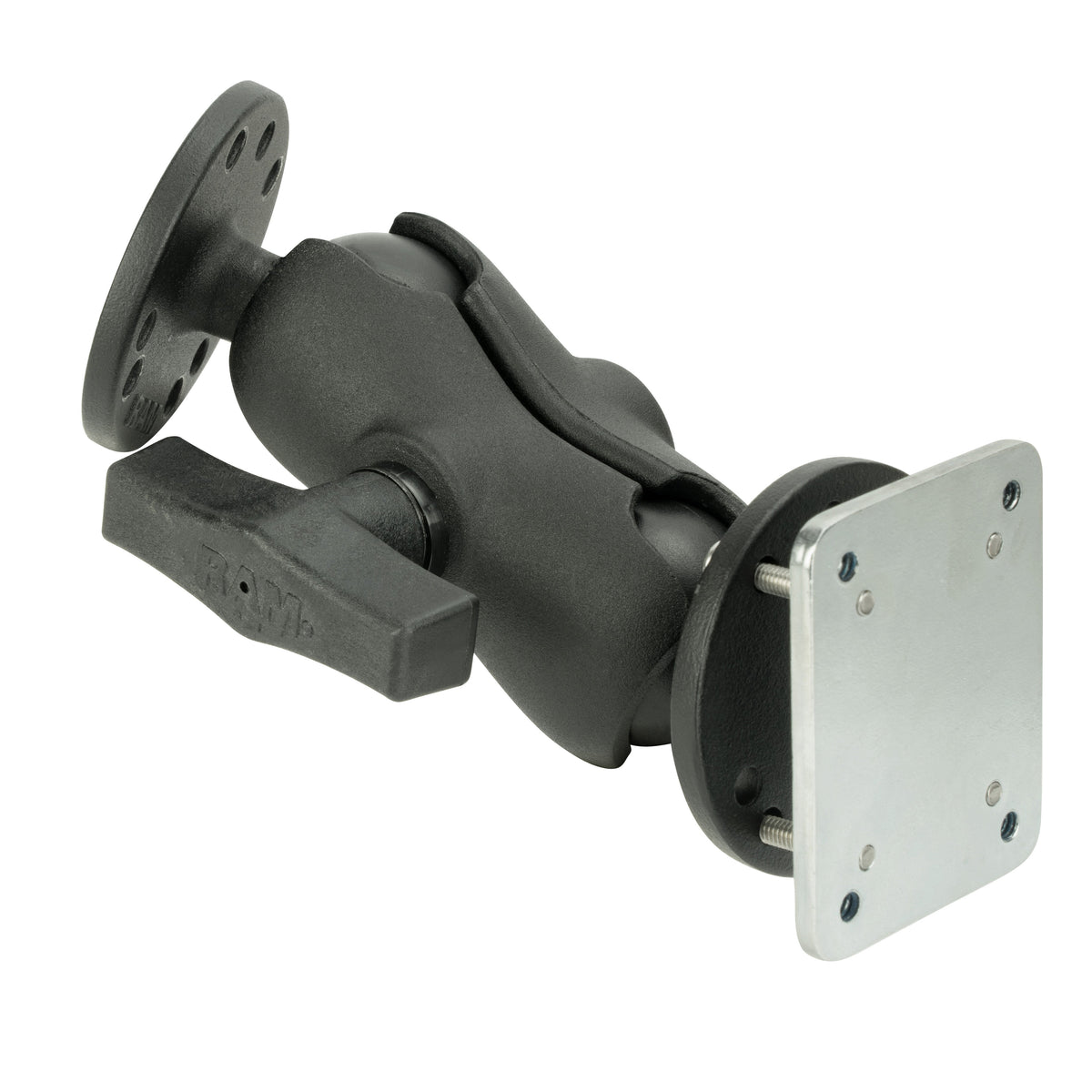

• Drill-down installation – the 53 × 66 mm steel backing plate sits behind the dashboard or panel and bolts to the round AMPS base for a solid through-bolted installation
• Patented ball-and-socket system – C-size (1.5") rubber balls adjust at both ends of the arm and damp shock and vibration
• Universal AMPS pattern – the Ø 63.5 mm round plate has the 4-hole AMPS (30 × 38 mm) and 3-hole 120° (Ø 46 mm) patterns used by most RAM and third-party cradles
• Short double socket arm – 90 mm overall, 64 mm socket to socket, with an easy-to-adjust knob
• Load capacity – 1.8 kg (4 lb) for standard use, 1.4 kg (3 lb) for heavy-duty use
• Durable construction – powder-coated marine-grade aluminium and steel, backed by RAM's lifetime warranty

Compatibility

• Cradles and devices with the AMPS 4-hole pattern (30 × 38 mm)
• Holders with the 3-hole 120° pattern (Ø 46 mm)
• All RAM C-size (1.5") ball bases, adapters and holders

Technical Specifications
