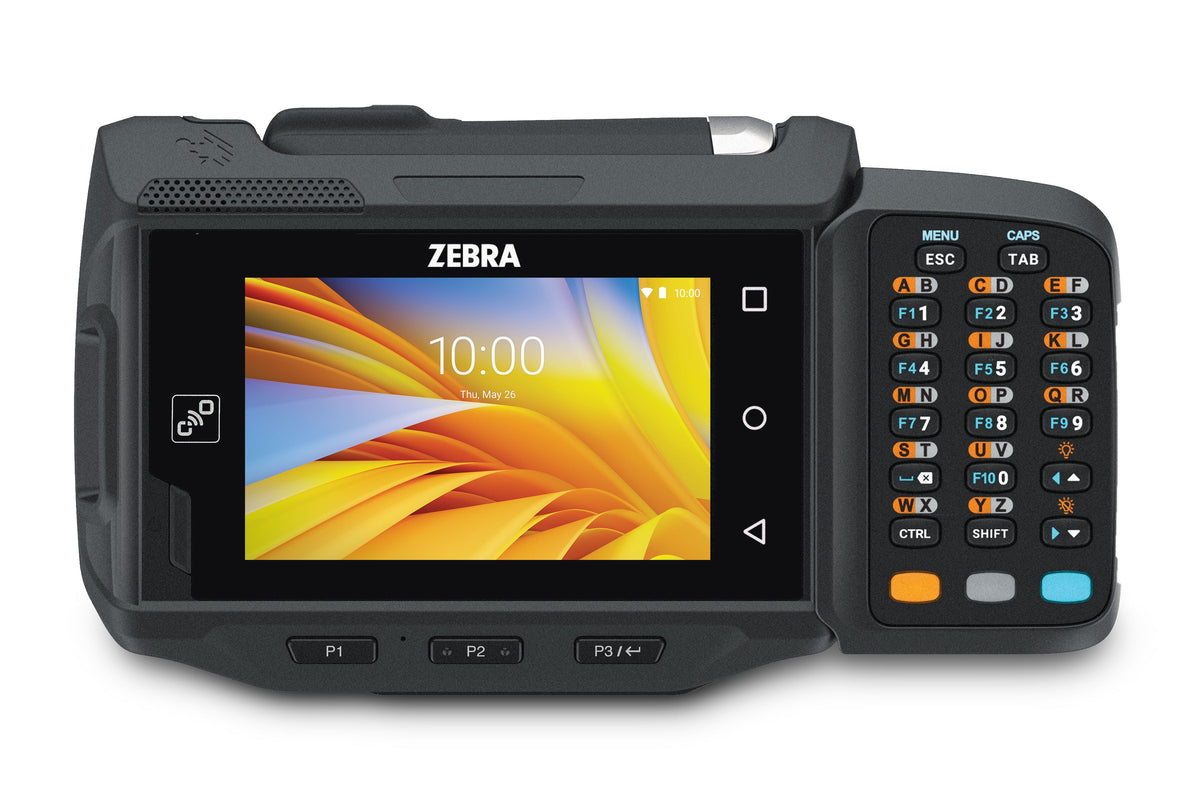

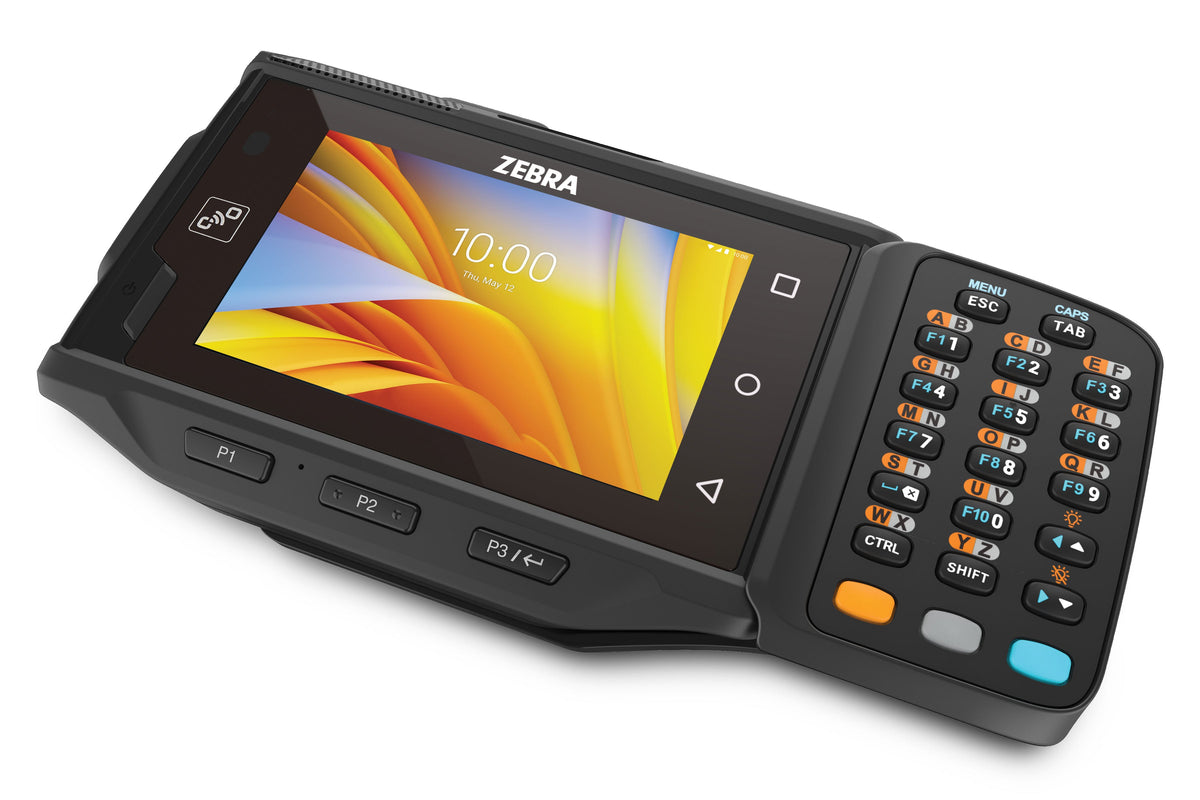

The Zebra WT6300 is a rugged wrist-mounted Android wearable computer for hands-free work in warehouses, distribution, retail backrooms and manufacturing. It combines a 3.2" touchscreen, a Qualcomm Snapdragon 660 octa-core processor, 3 GB RAM / 32 GB Flash, Wi-Fi 5 (2x2 MU-MIMO), Bluetooth 5.0 and NFC tap-to-pair for Zebra ring scanners and headsets, and works from −30 °C to +50 °C. It ships with Android 10 and is upgradeable to Android 14. This version, WT63B0-KS0QNERW, has the alphanumeric/function keypad fitted and the standard 3350 mAh battery.
📦 What's in the box – WT63B0-KS0QNERW
- ✅ Zebra WT6300 – keypad (20 keys), 3.2", Wi-Fi 5, Bluetooth 5.0, NFC
- ✅ Battery – standard 3350 mAh Li-ion, user-replaceable
- ❌ Wrist mount – NOT included – choose strap type and size – see the options below
- ❌ Charging cradle – NOT included – needed to charge the battery – see the options below
- ❌ Ring scanner – NOT included – pair a Zebra Bluetooth ring scanner with one NFC tap – see the tips below
⚠️ Please note: no charger, charging cable or cradle is included. To charge the WT6300, please order separately: the Zebra CRD-NGWT-1S1BU-01 charging cradle with the Zebra PWR-BGA12V50W0WW power supply, the Zebra CBL-DC-388A1-01 DC cable and the Zebra 50-16000-220R mains cord. Also not included: wrist mount with strap – please choose: Zebra SG-NGWT-WRMTS-02 (S/M), Zebra SG-NGWT-WRMTL-02 (M/L) or Zebra SG-NGWT-WRMTXL-01 (XL).
💡 Useful extras: a spare battery for hot-swapping (Zebra BTRY-NWTRS-33MA-02); the Zebra BTRY-NGWT-50MA-01 extended battery for multi-shift use; multi-slot charging cradles for teams (Zebra CRD-NGWT-5S5BC-02 or Zebra CRD-NGWT-10SCH-02); spare battery chargers (Zebra SAC-NWTRS-4SCH-01 or Zebra SAC-NWTRS-20SCH-01); a Zebra Bluetooth ring scanner, paired with one NFC tap (Zebra RS5100); the corded RS5000 ring scanner (Zebra RS5000-LCFSWR).
Interactive 3D Model
Drag to rotate, scroll or pinch to zoom. Official Zebra 3D viewer – open in full screen ↗
Key Features
- Hands-free comfort – compact 121 × 89 mm design worn on the forearm with micro-adjustable dial or Velcro wrist mounts.
- Touch or keypad – 3.2" capacitive touchscreen with glove and stylus support; optional alphanumeric/function keypad for keyed data entry.
- Ring scanner ready – corded RS4000/RS5000 or Bluetooth RS5100/RS6000 ring scanners, paired with an NFC tap.
- Voice-directed picking – speaker, microphone, PTT and wired or Bluetooth headsets; supports third-party VDP clients.
- Freezer-tough – operates from −30 °C to +50 °C, IP65, 1.2 m drops to concrete, 1,000 tumbles; hot-swap PowerPrecision+ batteries.
- Secure and manageable – Android 10 upgradeable to Android 14 with LifeGuard updates, Zebra Mobility DNA and FIPS 140-2 validation.
Ideal Applications
- Warehouse picking, packing and staging
- Receiving, put-away and replenishment
- Truck loading/unloading and returns
- Retail back-of-store and online order picking
- Manufacturing inventory and parts tracking
All WT6300 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Keypad | Battery | |
|---|---|---|---|
| WT63B0-TS0QNERW | Touch only | 3350 mAh (Standard) | View product |
| WT63B0-KS0QNERW (this version) | Keypad (20 keys) | 3350 mAh (Standard) | Viewing |
| WT63B0-TX0QNERW | Touch only | 5000 mAh (Extended, freezer-rated) | View product |
Technical Specifications
| Part Number | WT63B0-KS0QNERW |
|---|---|
| Model | Zebra WT6300 wrist-mounted wearable computer (touch + keypad) |
| Operating System | Android 10, upgradeable to Android 14 (LifeGuard updates with Zebra OneCare) |
| Processor | Qualcomm Snapdragon 660 octa-core 2.2 GHz |
| Memory (RAM / Flash) | 3 GB RAM / 32 GB Flash |
| Display | 3.2" WVGA (800 × 480), LED backlight, optically bonded |
| Touch Panel | Capacitive; fingertip, glove and conductive stylus; Corning Gorilla Glass |
| Keypad | Alphanumeric/function keypad fitted (KYPD-WT6XANFASM-01 type) |
| Buttons | Volume up, volume down, enter; three programmable function keys |
| Compatible Scanners | Corded ring scanners RS4000, RS5000; Bluetooth ring scanners RS5100, RS6000 (NFC tap-to-pair) |
| Wi-Fi | Wi-Fi 5, IEEE 802.11a/b/g/n/ac/d/h/i/r/k/w/v/mc, 2x2 MU-MIMO; WPA3; fast roaming 802.11r / OKC / CCKM |
| Bluetooth | Bluetooth 5.0 + BLE, Class 1 |
| NFC | ISO 14443 A/B, FeliCa, ISO 15693; P2P and HCE |
| Mobile Data (WWAN) | Not available – Wi-Fi only |
| Voice & Audio | Integrated speaker and microphone, PTT, wired and Bluetooth headsets, third-party VDP clients |
| Ports | USB 2.0 high speed (host and client) |
| Sensors | 3-axis accelerometer with gyroscope |
| Battery | Standard 3350 mAh PowerPrecision+, hot swap |
| Charging | Via charging cradle – not included |
| Dimensions | 121 × 89 × 20 mm (34 mm at the battery) |
| Weight | 256 g with standard battery |
| Drop Spec | Multiple 1.2 m drops to concrete across the operating temperature range (MIL-STD-810G) |
| Tumble Spec | 1,000 tumbles at 0.5 m |
| Sealing | IP65 |
| Operating Temperature | −30 °C to +50 °C |
| Storage Temperature | −40 °C to +70 °C |
| Humidity | 5–95% non-condensing |
| Certifications | FIPS 140-2 (custom SKU); Secure Boot, Verified Boot |
| Colour | Black |
| Warranty | 12 months (Zebra 1-year hardware warranty); Zebra OneCare service plans available from Zebra |
| In the Box | Zebra WT6300 wearable computer (WT63B0-KS0QNERW, touch + 20-key keypad), 3350 mAh battery – wrist mount / strap, charging cradle + power supply and ring scanner NOT included (order separately) |
The WT6300 succeeds the WT6000; its successor with a larger 4.7" display is the WT6400. Related Zebra wearables: Zebra WT6400, Zebra WT6000 and Zebra WT5400. Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
Available Versions
| Part Number | Keyboard | In the Box | Price | ||
|---|---|---|---|---|---|
 |
WT63B0-KS0QNERWViewing | Function alphanumeric (20 keys) | + battery (3350 mAh) | 3.047,66 €+VATIn Stock | |
 |
WT63B0-TS0QNERW | Touch only (no keypad) | + battery (3350 mAh) | 2.316,91 €+VATOut of Stock | View |
 |
WT63B0-TX0QNERW | Touch only (no keypad) | + freezer battery (5000 mAh) | 2.731,83 €+VATOut of Stock | View |
No matching products.
Accessories
| Product | Price | ||
|---|---|---|---|
 |
Zebra single slot cradle, USBCRD-NGWT-1S1BU-01 | 310,41 €+VATIn Stock | |
 |
Zebra power supply, 12 V, 4.16 A, 50 WPWR-BGA12V50W0WW | 55,05 €+VATIn Stock | |
 |
Zebra DC line cord, for 1-slot cradles and 4-slot chargersCBL-DC-388A1-01 | 10,10 €+VATOut of Stock | View |
 |
Zebra power cord, C13, EU, 1.8 m, for PWRS-14000-148R50-16000-220R | 11,25 €+VATIn Stock | |
 |
Zebra power cord, UK, 1.8 m, for PWRS-14000-148R50-16000-219R | 16,86 €+VATIn Stock | |
 |
Zebra micro USB cable, ActiveSync, 1.22 m, for cradles25-124330-01R | 11,25 €+VATIn Stock | |
 |
Zebra USB cableCBL-NGWT-USBCHG-01 | 140,48 €+VATIn Stock | |
 |
Zebra wrist mount, S/MSG-NGWT-WRMTS-02 | 136,39 €+VATOut of Stock | View |
 |
Zebra wrist mount, M/LSG-NGWT-WRMTL-02 | 136,39 €+VATIn Stock | |
 |
Zebra wrist mount, XLSG-NGWT-WRMTXL-01 | 163,69 €+VATIn Stock | |
 |
Zebra wrist strap S/MSG-NGWT-WSTPST-01 | 81,84 €+VATOut of Stock | View |
 |
Zebra hand strap M/LSG-NGWT-WSTPLN-01 | 81,84 €+VATOut of Stock | View |
 |
Zebra hand strap XLSG-NGWT-WSTPXL-01 | 103,65 €+VATOut of Stock | View |
 |
Zebra mounting cleatACC-WT6XCLTMNT-01 | 42,81 €+VATIn Stock | |
| Zebra batteryBTRY-NWTRS-33MA-02 | 139,86 €+VATIn Stock | ||
 |
Zebra spare battery, extendedBTRY-NGWT-50MA-01 | 168,60 €+VATOut of Stock | View |
 |
Zebra charging station, 5 slotsCRD-NGWT-5S5BC-02 | 1.062,15 €+VATOut of Stock | View |
 |
Zebra 5-Slot Ethernet CradleCRD-NGWT-5S5BE-02 | 1.574,56 €+VATOut of Stock | View |
 |
Zebra charging station, 10 slotsCRD-NGWT-10SCH-02 | 1.062,15 €+VATOut of Stock | View |
 |
Zebra power supply, 12 V, 9 A, 108 WPWR-BGA12V108W0WW | 118,00 €+VATIn Stock | |
 |
Zebra DC line cord, for multi-slot cradlesCBL-DC-381A1-01 | 29,23 €+VATIn Stock | |
 |
Zebra battery charging station, 4-slotSAC-NWTRS-4SCH-01 | 384,05 €+VATOut of Stock | View |
 |
Zebra battery charging station, 20 slotSAC-NWTRS-20SCH-01 | 1.678,24 €+VATOut of Stock | View |
 |
Zebra 8-slot battery charging stationSAC-HS3100-B8W8-01 | 1.052,18 €+VATIn Stock | |
 |
Zebra Hip-mountSG-NGWT-HPMNT-01 | 75,06 €+VATOut of Stock | View |
 |
Zebra keyboardKYPD-WT6XANFASM-01 | 387,72 €+VATOut of Stock | View |
 |
Zebra RS5000, short cable, WT6000, 2D, kitRS5000-LCFSWR | 944,95 €+VATIn Stock | |
 |
Zebra RS5100 Wireless Ring Barcode ScannerRS51C0-LBSNWR | 825,19 €+VATIn Stock | |
 |
Zebra RS5100 Wireless Ring Barcode ScannerRS51C0-TBDNWR | 861,59 €+VATIn Stock | |
 |
Zebra headset adapter cable, longCBL-NGWT-AUQDLG-02 | 113,37 €+VATOut of Stock | View |
 |
Zebra HS3100 headset, Bluetooth, over-the-headHS3100-OTH | 547,94 €+VATOut of Stock | View |
 |
Zebra HS3100 headset, Bluetooth, behind-the-neck, leftHS3100-BTN-L | 556,35 €+VATIn Stock |
