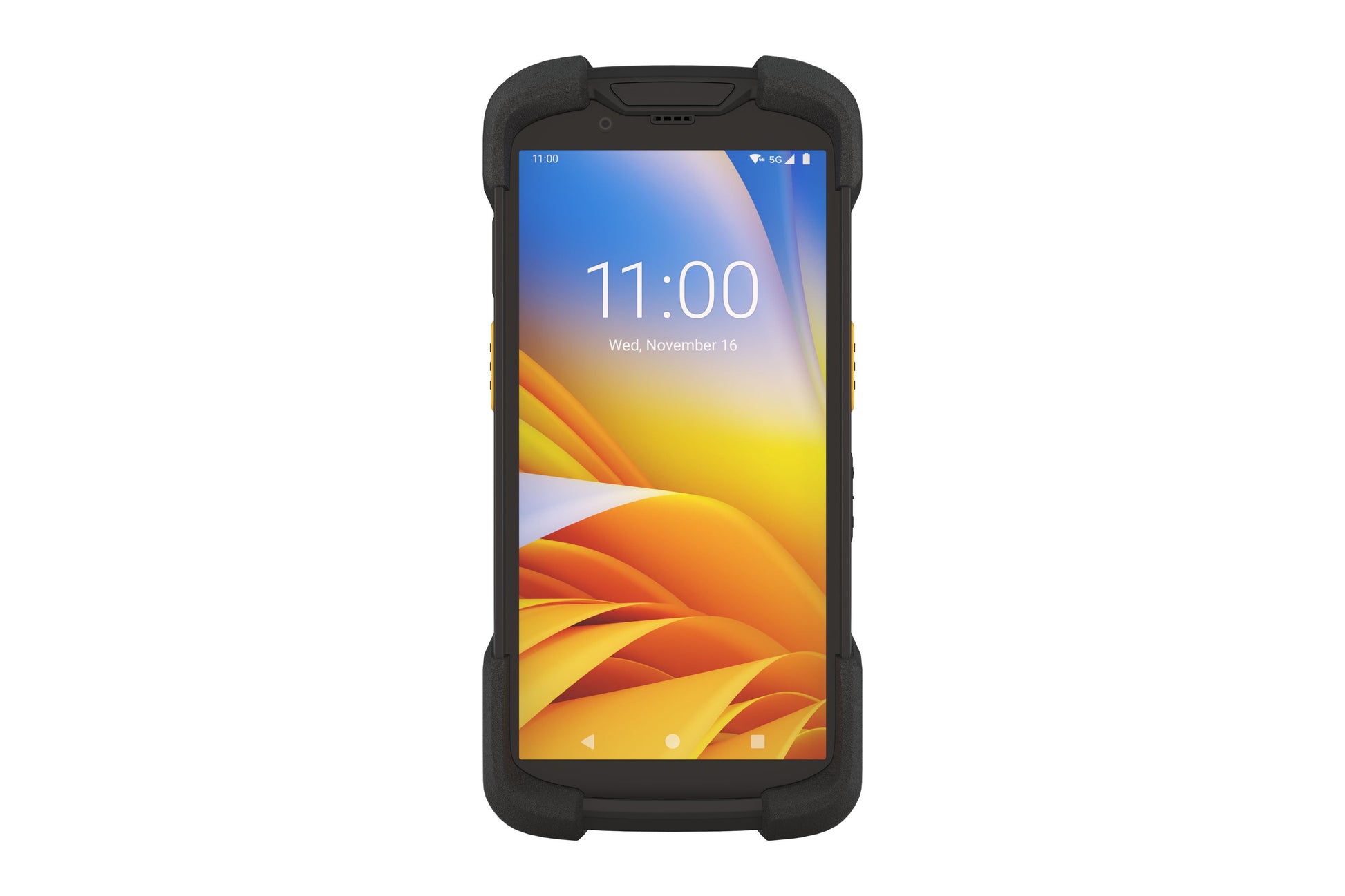

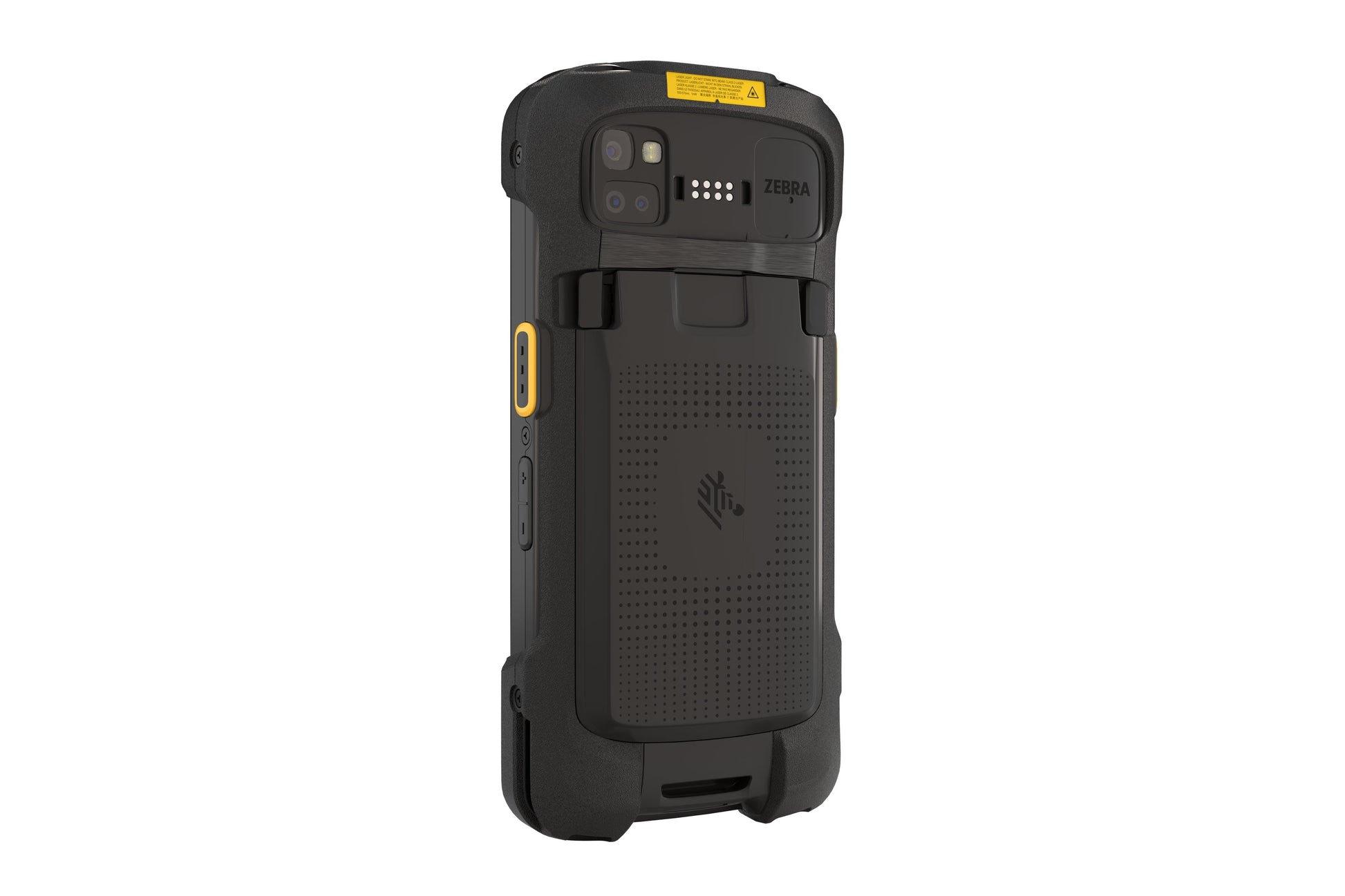

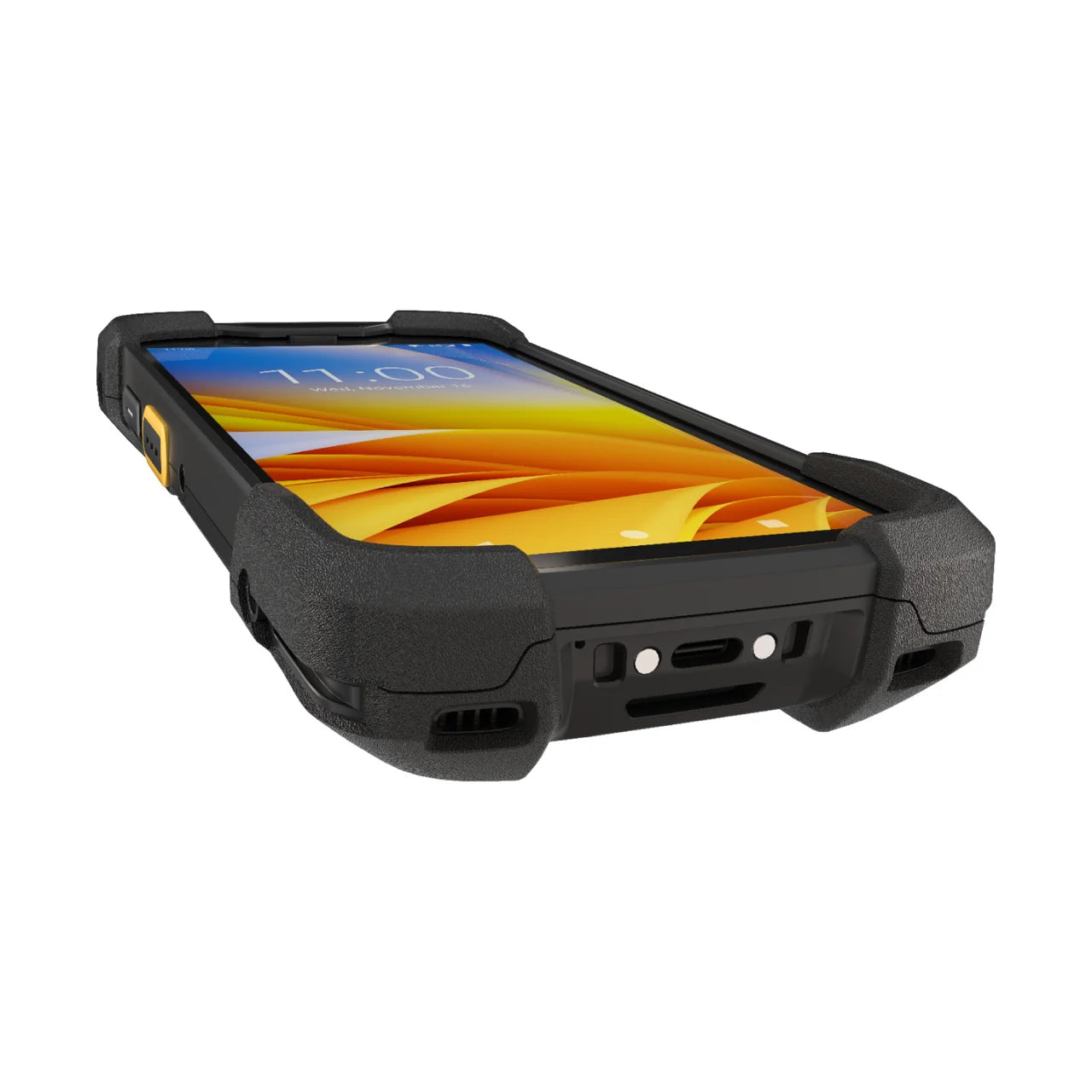

Zebra TC73 Terminal (TC7301-0T1J4B1000-A6)

The Zebra TC73 is an ultra-rugged Android mobile computer for warehouses, manufacturing, transport and logistics, parcel delivery and field service – thinner, lighter and tougher than its TC72/TC77 predecessors. It combines a 6" Full HD+ edge-to-edge touchscreen, Qualcomm 6490 octa-core performance, Wi-Fi 6E, Bluetooth 5.2 and NFC with 3 m drop protection and IP65/IP68 sealing. This version, TC7301-0T1J4B1000-A6, is the Wi-Fi-only TC73 model. Configuration: the SE4770 standard-range imager (up to approx. 60 cm), 4 GB RAM / 64 GB Flash, Standard edition (warm-swap battery), standard 4680 mAh battery.

Key Features

• Ultra-rugged, yet thinner and lighter – survives multiple 3.05 m drops to concrete and 2,000 tumbles, IP65 and IP68 sealed; the grip area is nearly 20% thinner than on previous TC7x models.
• 6" Full HD+ edge-to-edge display – 1080 × 2160 pixels, 28% larger than on earlier TC7x devices, Corning Gorilla Glass; works when wet and with gloves or a stylus.
• High-performance scanning – Zebra's SE4770 imager with a wide field of view and maximum motion tolerance; the scan buttons are rated for one million actuations and SimulScan captures several barcodes with one press.
• Wi-Fi-only TC73 – the cost-effective choice for warehouses, plants and distribution centres with Wi-Fi coverage; choose the TC78 for 5G.
• Latest wireless – Wi-Fi 6E with 2x2 MU-MIMO and the 6 GHz band, Bluetooth 5.2 and NFC with contactless payment support.
• Blazing speed – Qualcomm 6490 octa-core 2.7 GHz processor, up to 8 GB RAM / 128 GB Flash and microSD up to 2 TB; upgradeable to Android 16.
• Flexible battery options – standard 4680 mAh, extended 7000 mAh, wireless-charging and BLE batteries with PowerPrecision+ health metrics; fast charging, even with any standard USB-C cable.
• 16 MP rear camera with flash and HDR for proof of delivery and condition (optical image stabilisation and Time-of-Flight sensor on Premium versions), plus an 8 MP front camera for video calls.
• Crystal-clear voice – three microphones with noise cancellation, dual speakers, HD Voice and a dedicated push-to-talk button; use it as a PBX handset or two-way radio.
• Zebra Mobility DNA – DataWedge, StageNow, Device Tracker, Workstation Connect and more for easy deployment and management; trigger handle and RFID sled support.

Ideal Applications

• Warehouses and distribution centres: picking, put-away, receiving and inventory
• Manufacturing: line-side replenishment, work-in-progress tracking and quality control
• Parcel delivery, direct store delivery (DSD) and route accounting
• Field service, utilities and asset maintenance
• Airlines and airports: under-wing operations and baggage handling
• Retail distribution centres and back-of-store operations

All TC73/TC78 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

The TC73 belongs to Zebra's TC73/TC78 series, the successor to the TC72/TC77, with five years of product availability and up to ten years of service and support. Need mobile data on the road? The Zebra TC78 (TC78B1-3T1J4B1A80-A6) adds 5G and GPS. It replaces the Zebra TC77. Prefer a slimmer, lighter device? See the Zebra TC53e/TC58e. Looking for the newest generation? See the Zebra TC701. Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
