| Part Number |
ET60AW-0SQAGSK0C0-NA |
| Model |

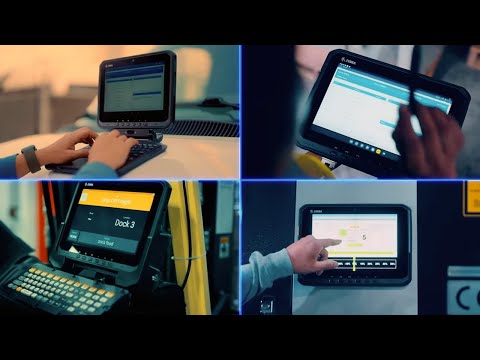

Zebra ET60 (Wi-Fi model) – ET6x series rugged Android tablet, North American regional SKU |
| Operating System |
Android with Google Mobile Services (GMS); upgradeable to Android 16; Zebra LifeGuard security updates |
| Processor |
Qualcomm 6490 octa-core, 2.7 GHz |
| Memory (RAM / Flash) |
8 GB RAM / 128 GB UFS Flash |
| Expansion |
User-accessible microSD slot, up to 2 TB |
| Display |
10.1" WUXGA (1920 × 1200), 1,000 nits, optically bonded |
| Touch Panel |
Multi-mode capacitive touch – bare or gloved finger or conductive stylus (sold separately); Corning Gorilla Glass; water droplet rejection; anti-smudge coating |
| Keypad |
On-screen keyboard; optional 2-in-1 keyboard and vehicle keyboards |
| Buttons |
Power, Scan, Up/Down, three programmable keys |
| Scan Engine |
SE55 1D/2D advanced-range imager with IntelliFocus – from near contact up to 12 m; Gorilla Glass exit window |
| Rear Camera |
16 MP autofocus with LED flash |
| Front Camera |
8 MP with mechanical privacy shade |
| Wi-Fi |
Wi-Fi 6E (IEEE 802.11a/b/g/n/ac/ax), 2x2 MU-MIMO, dual-band simultaneous; WPA3; 802.11r / OKC fast roaming |
| Bluetooth |
Bluetooth 5.2 Class 1, Bluetooth Low Energy |
| NFC |
ISO 14443 A/B, FeliCa, ISO 15693 |
| Mobile Data (WWAN) |
Not available – Wi-Fi only (choose the ET65 for 5G) |
| GPS/GNSS |
Not available (ET65 only) |
| Voice & Audio |
Stereo speakers, two microphones; headsets via USB or Bluetooth |
| Interfaces |
2 × USB 3.1 Type-A, 1 × USB 3.1 Type-C (DisplayPort 1.2, USB PD 3.0 charging), 1 × USB 2.0 host (back I/O), docking connector, keyboard connector |
| Sensors |
Ambient light sensor, eCompass, 3-axis gyroscope, 3-axis accelerometer, humidity sensor (display heating control) |
| Security |
FIPS 140-2 validated, Common Criteria certified; Secure Boot and Verified Boot; CAC support |
| Battery |
8,920 mAh (36 Wh) PowerPrecision+ Li-ion, removable (BTRY-ET6XA-9AH-01); hot-swap with super capacitor |
| Battery Life |
Standard battery approx. 10 h, extended battery approx. 20 h (indoor, WLAN on, 50% backlight) |
| Charging |
Via USB-C (USB PD 3.0) with a 45 W power supply (PWR-BGA15V45W-UC2-WW + mains cord) or the vehicle dock – not included; 4–80% in 2.5 h (standard) / 5.5 h (extended) |
| Docking |
Vehicle dock CRD-ET6X-VEHDK-CON-01 / -PTA-01 (heated connectors, battery-free operation); Workstation Connect cradle CRD-ET6X-1SNWS-01 |
| Dimensions |
275 × 199 × 18.3 mm (W × L × H) |
| Weight |
1,074 g |
| Drop Spec |
1.5 m to concrete, exceeds MIL-STD-810H |
| Sealing |
IP66 (IEC 60529) |
| Operating Temperature |
−20 °C to 55 °C |
| Storage Temperature |
−40 °C to 70 °C |
| Humidity |
5–95% non-condensing |
| Certifications |
MIL-STD-810H; Class I Division 2 (C1D2) hazardous location |
| Software & Management |
Zebra Mobility DNA (DataWedge, StageNow, Device Diagnostics); OCR Wedge (licence); Workstation Connect |
| Colour |
Black |
| Warranty |
36 months (Zebra 3-year hardware warranty); Zebra OneCare service plans available |
| In the Box |
Zebra ET60 rugged tablet (ET60AW-0SQAGSK0C0-NA), standard 8,920 mAh battery (BTRY-ET6XA-9AH-01), Google Mobile Services (GMS) licence preinstalled, regulatory guide – 45 W USB-C power supply (PWR-BGA15V45W-UC2-WW), mains power cord and stylus NOT included (order separately) |
