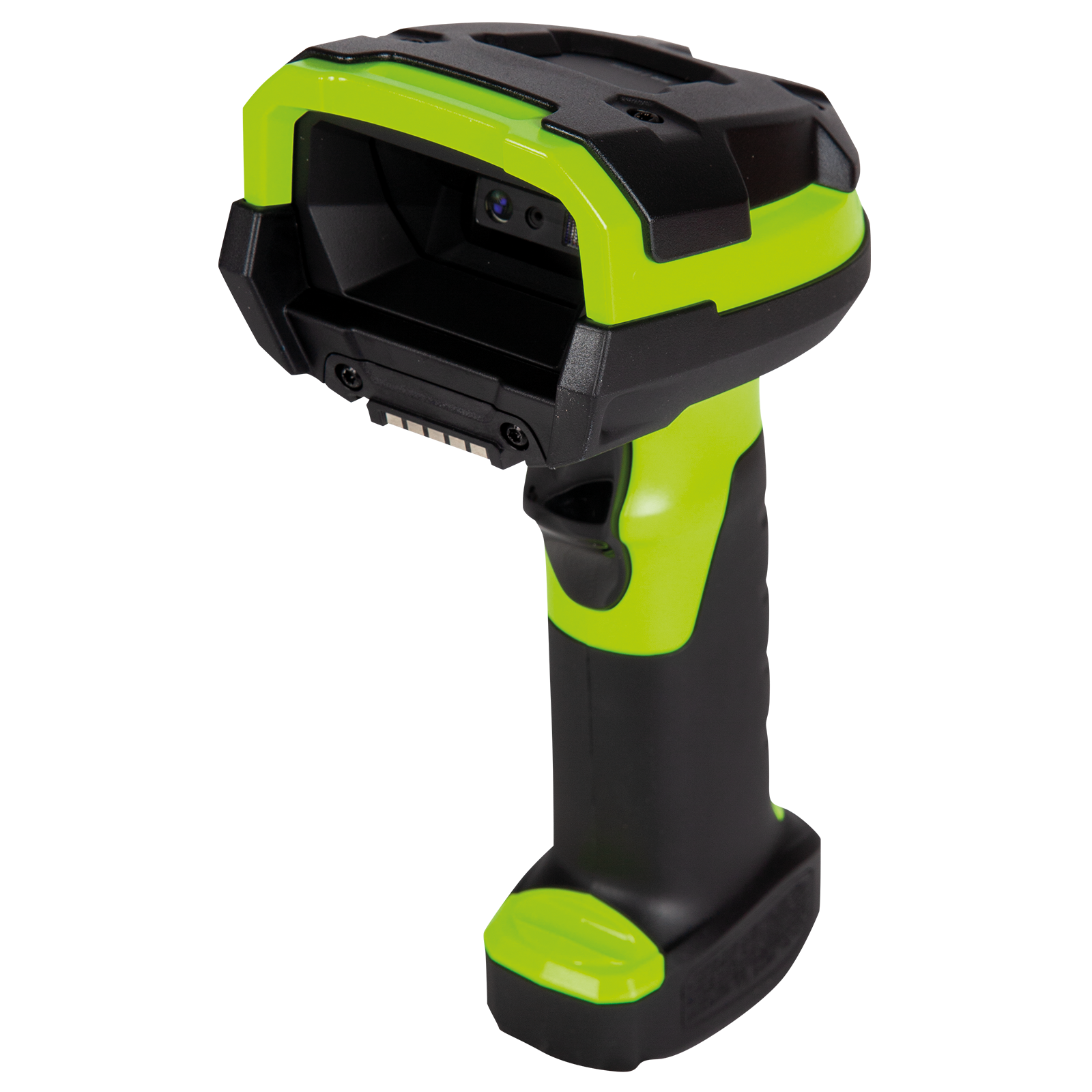

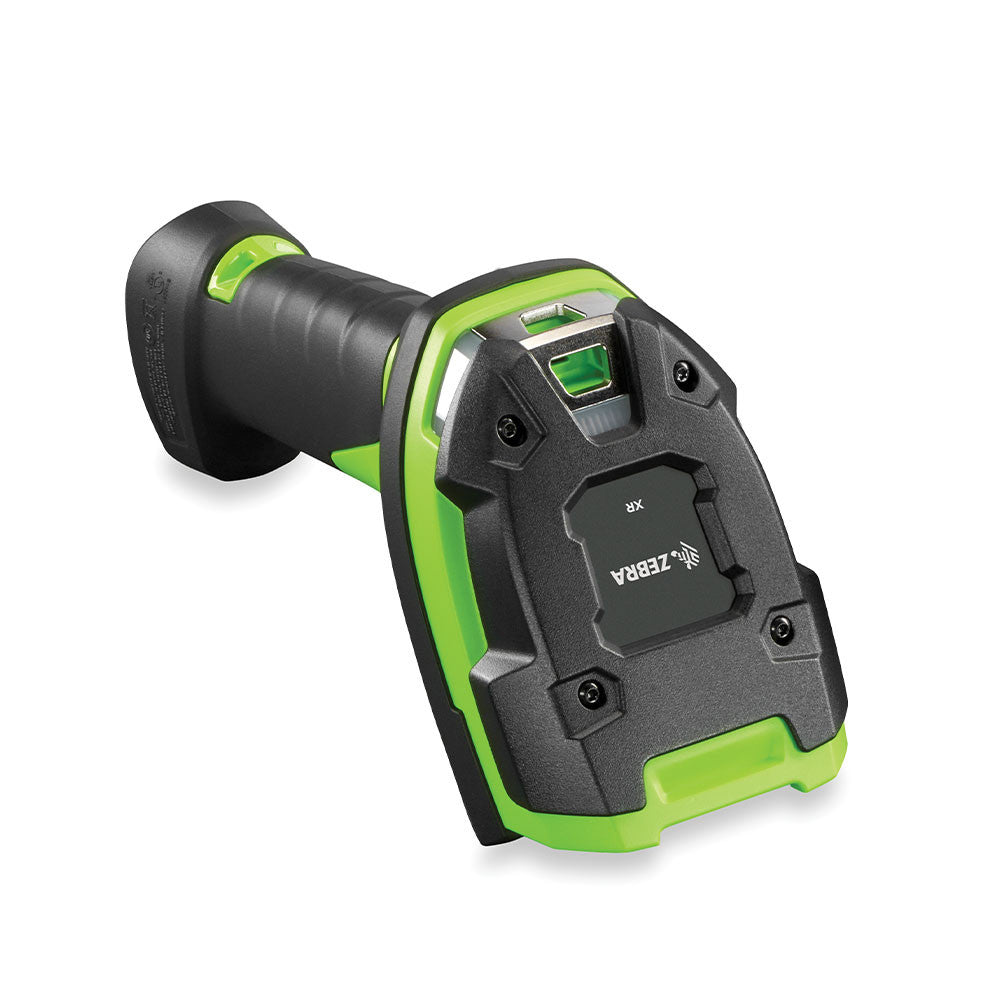

Zebra DS3608 Industrial 2D Barcode Scanner (DS3608-XR3RF50BZVW)

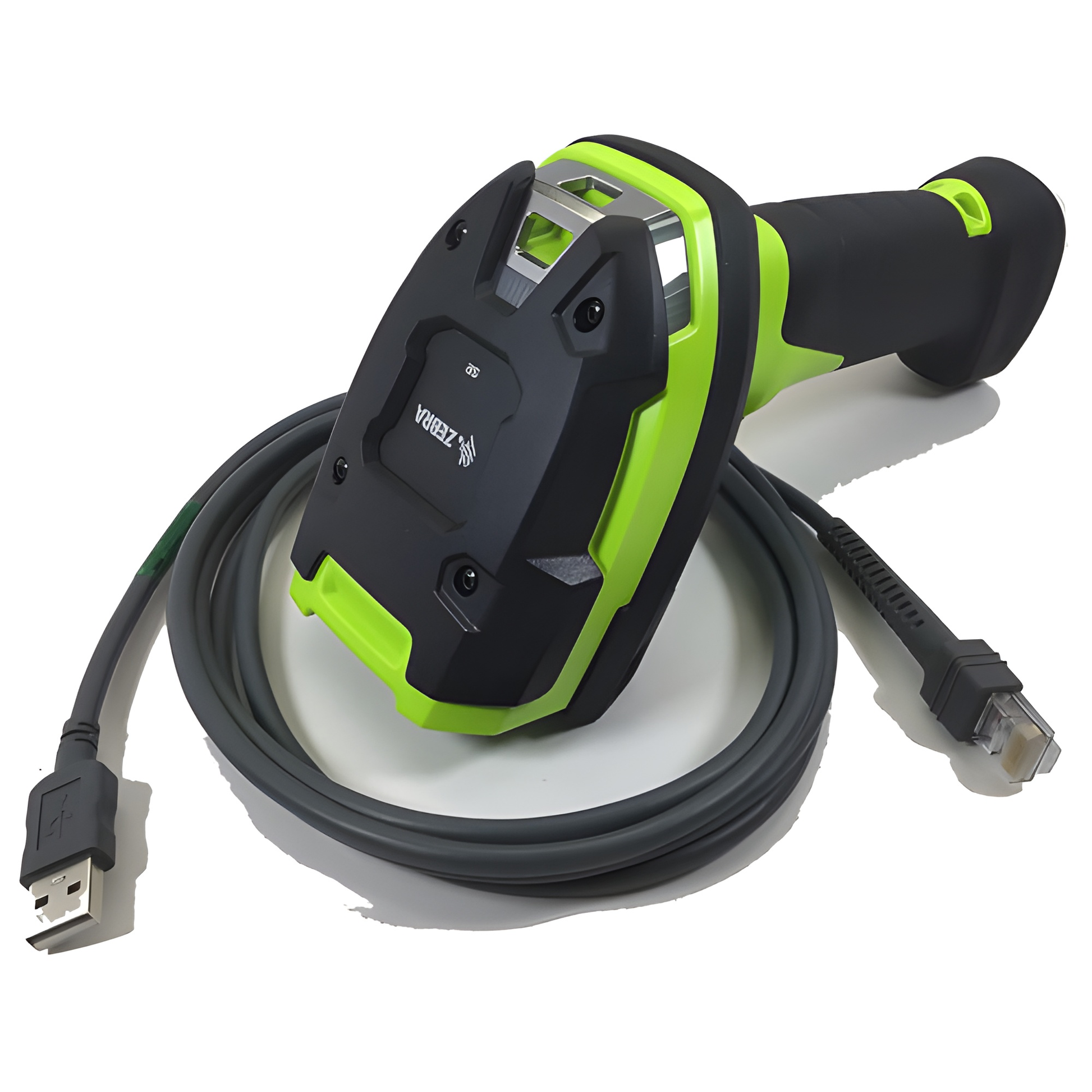

The Zebra DS3608 is an ultra-rugged corded 2D handheld scanner built for warehouses, manufacturing plants, cold storage and outdoor yards. It reads virtually every 1D and 2D barcode – including damaged, dirty, shrink-wrapped and poorly printed codes – and survives multiple 3 m drops to concrete, 7,500 tumbles and full submersion in water (IP65 and IP68 sealing). The scanner is backed by a 3-year (36-month) Zebra warranty. This version, DS3608-XR3RF50BZVW, has the Extended Range (XR) engine (reads from 5 cm to over 30 m, with a green laser aimer) and is supplied as a Siemens PROFINET Industrial Ethernet kit – with an RS232 cable and the Zebra EA3600 Ethernet adapter for direct connection to PLCs.

Key Features

• Virtually indestructible – withstands multiple 3 m (10 ft) drops to concrete and 7,500 tumbles from 1 m – the highest drop and tumble specifications in its class.
• IP65 and IP68 sealing – dust-tight, protected against water jets and fully submersible, so the scanner can be hosed down and used outdoors in rain and snow.
• Works from −30 °C to 50 °C – in freezers and cold stores, on outdoor docks and yards and in hot production halls.
• Extended Range (XR) engine – dual near and far sensors with IntelliFocus read barcodes from 5 cm up to 32 m (100 mil Code 39), from a label in the hand to the top rack shelf. The green laser aimer is up to 7× more visible than a red aiming dot, even in direct sunlight.
• FIPS 140-3 certified – the XR version is certified compliant with FIPS 140-3 for government and other security-sensitive environments.
• Ready for the plant floor – the included EA3600 adapter connects the scanner directly to your PROFINET PLC network over RJ45, without third-party protocol converters.
• PRZM intelligent imaging – reads damaged, dirty, poorly printed, low-contrast and shrink-wrapped barcodes at the first attempt, as well as Digimarc digital watermarks.
• Multi-Code Data Formatting and Label Parse+ – capture up to 20 barcodes with one trigger pull and automatically parse GS1 data such as expiry dates and lot numbers.
• Clear feedback in noisy environments – Direct Decode Indicator, bright wrap-around LEDs, a loud beeper and vibration confirm every good read.
• Flexible connectivity – USB, RS232 and keyboard wedge, plus direct Industrial Ethernet (EtherNet/IP, PROFINET, Modbus TCP, TCP/IP) to PLCs via the Zebra EA3600 adapter – no third-party converters needed.
• Free management tools – configure with 123Scan, manage remotely with Scanner Management Service (SMS) and integrate using the Zebra Scanner SDK and Network Connect (Zebra DataCapture DNA).

Ideal Applications

• Warehouses and distribution centres – receiving, put-away, picking, cycle counting and shipping
• Manufacturing and automotive – work-in-process, parts tracking and quality control, including direct PLC connection on production lines
• Cold storage and food processing – freezer rooms, wash-down areas and loading docks
• Transport, ports and yards – outdoor scanning in rain, snow and direct sunlight
• Forklift and vehicle-mounted scanning – with the rugged holder and forklift power accessories

All DS3608 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? Choose SR for everyday 1D/2D scanning at short to medium distances, HP for a longer reach plus OCR, HD for very small, high-density codes, and XR to scan everything from 5 cm to over 30 m – from the hand to the top shelf. The DS3608 uses dedicated DS3600-series cables, so if you do not already have one, pick a version with a USB cable included, or one of the Industrial Ethernet kits for direct PLC connection. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
