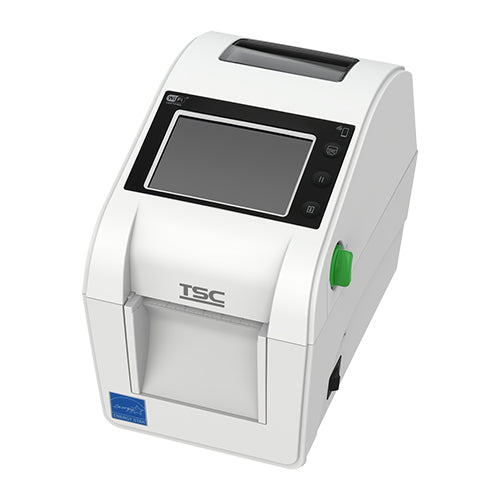

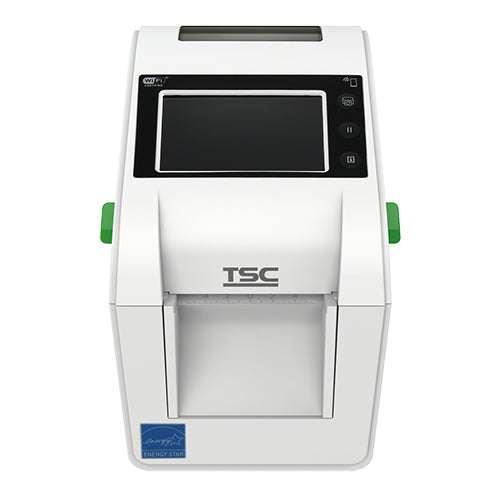

TSC DH220LNHC Desktop Label Printer (DH220LNHC-A001-0012)

The TSC DH220LNHC (DH220LNHC-A001-0012) is a 2-inch healthcare desktop label printer for direct-thermal printing at 203 dpi and up to 203 mm/s (8 ips), with a max. print width of 54 mm. Its white, antibacterial and disinfectant-ready housing with sealed buttons and an IEC 60601-1 medical-grade power supply suit hospitals, laboratories and pharmacies. A 3.5" colour touch display makes setup and status checks quick. A factory-fitted guillotine cutter cuts labels and wristbands to length. A built-in HF RFID encoder (13.56 MHz, ISO/IEC 15693, 14443 A, NFC) encodes RFID labels and wristbands as they print. It holds large label rolls up to 165 mm (6.5") OD, handles labels, tags and patient wristbands 10–60 mm wide, speaks TSPL-EZD with automatic EPL, ZPL and DPL emulation and connects via USB 2.0, RS-232, 10/100 Ethernet and USB host. Supplied with power supply, EU power cord and USB cable – ready to print.

Key Features

• Direct thermal at 203 dpi – up to 203 mm/s (8 ips), max. print width 54 mm, labels up to 25.4 m long
• Healthcare design: white antibacterial, disinfectant-ready enclosure with an easy-to-clean surface and sealed buttons
• IEC 60601-1 certified medical-grade power supply for safe use in clinical environments
• Large 165 mm (6.5") label rolls on 25.4–38.1 mm cores, media 10–60 mm wide: die-cut, continuous, black-mark, fanfold and notched labels, tags and patient wristbands
• 3.5" colour touch display (480 × 320) with feed and reprint buttons
• Factory-fitted guillotine cutter (full and partial cut) for labels, tags and wristbands
• Built-in HF RFID encoder (13.56 MHz; ISO/IEC 15693, ISO/IEC 14443 A, ISO/IEC 18092 NFC) – calibrate, read and write RFID labels and wristbands
• TSPL-EZD firmware with automatic EPL, ZPL/ZPL II and DPL language switching – existing label templates print unchanged
• USB 2.0, RS-232, 10/100 Ethernet and USB host as standard; a Wi-Fi + Bluetooth 5.0 module can be added later
• 256 MB SDRAM, 512 MB Flash, microSD slot (up to 512 GB), real-time clock and buzzer
• Remote management via embedded web page, TSC Console and SOTI Connect; HTTPS, SNMPv3 and 802.1X security
• 3-year TSC printer warranty in EMEA

Ideal Applications

• RFID patient wristbands and asset tags – encoded and printed in one pass
• Hospitals – patient ID wristbands, admission and chart labels
• Laboratories – specimen and sample tube labels
• Pharmacies – medication and prescription labels
• Blood banks and sterile services – traceability labels
• Clinics, care homes and veterinary practices – sample, medication and file labels

All DH220LNHC Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Need a different display, media option or wireless option? All DH220LNHC versions are listed above. Compare other models in our Desktop Label Printers collection or contact our team for volume pricing.
