RAM Mounts Key-Locking Powered Dock with Heated Pins for Honeywell CT40/CT45/CT47 (RAM-HOL-HON12PHLU)

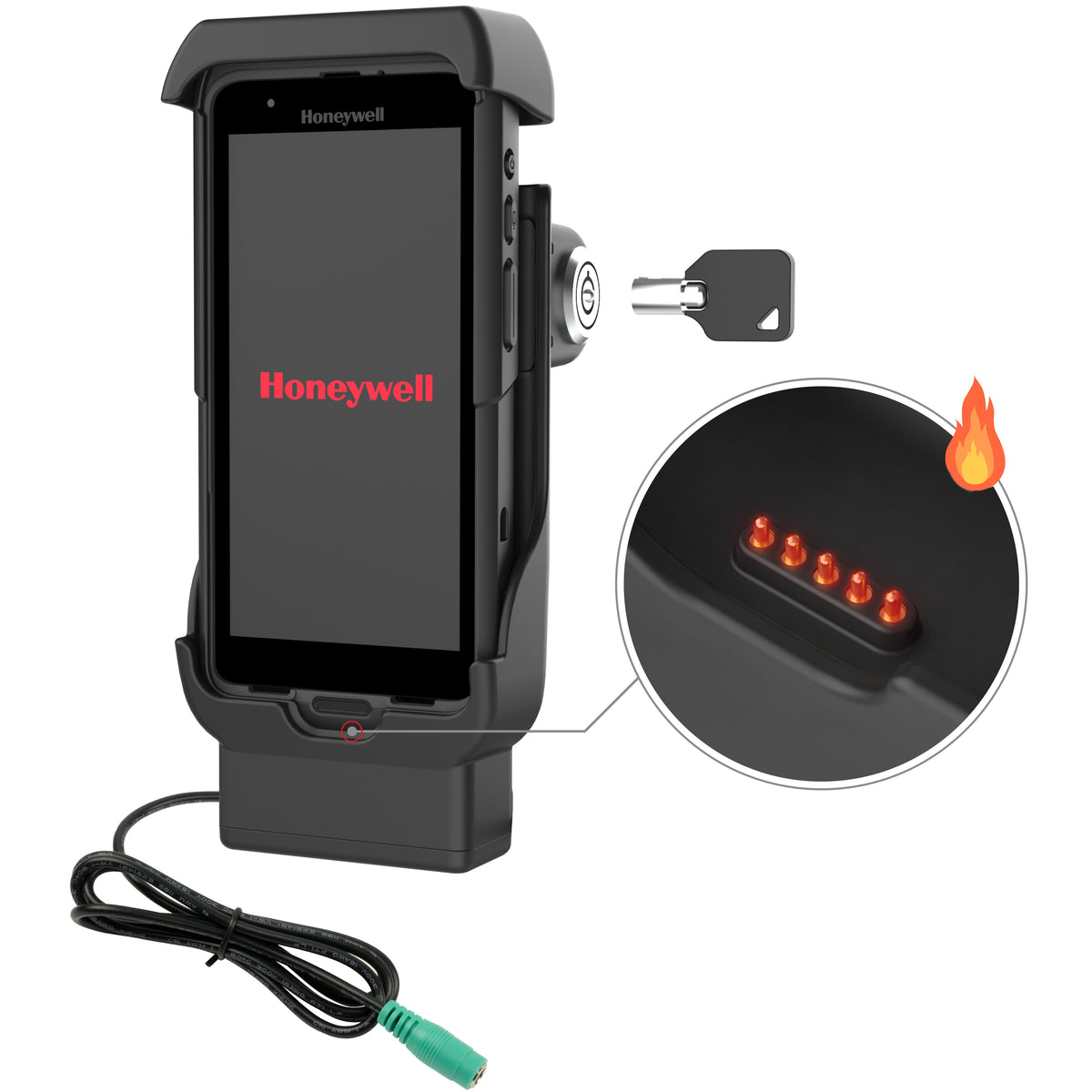

RAM Mounts Key-Locking Powered Dock with Heated Pins (RAM-HOL-HON12PHLU) is a spring-loaded Form-Fit dock for the Honeywell CT40, CT45 and CT47 mobile computers, supplied with inserts so it fits devices with or without the protective rubber boot. Power reaches the device via a 1 m cable with a female 5.5 mm DC barrel connector (5 V DC input). Heated pogo pins combat ice and keep a secure connection in freezers and other harsh, cold environments. An integrated stylus holder, room for the OEM hand strap and a cut-out in the top cup that keeps the scanner usable make it a practical choice for vehicles, forklifts and workstations.

Key Features

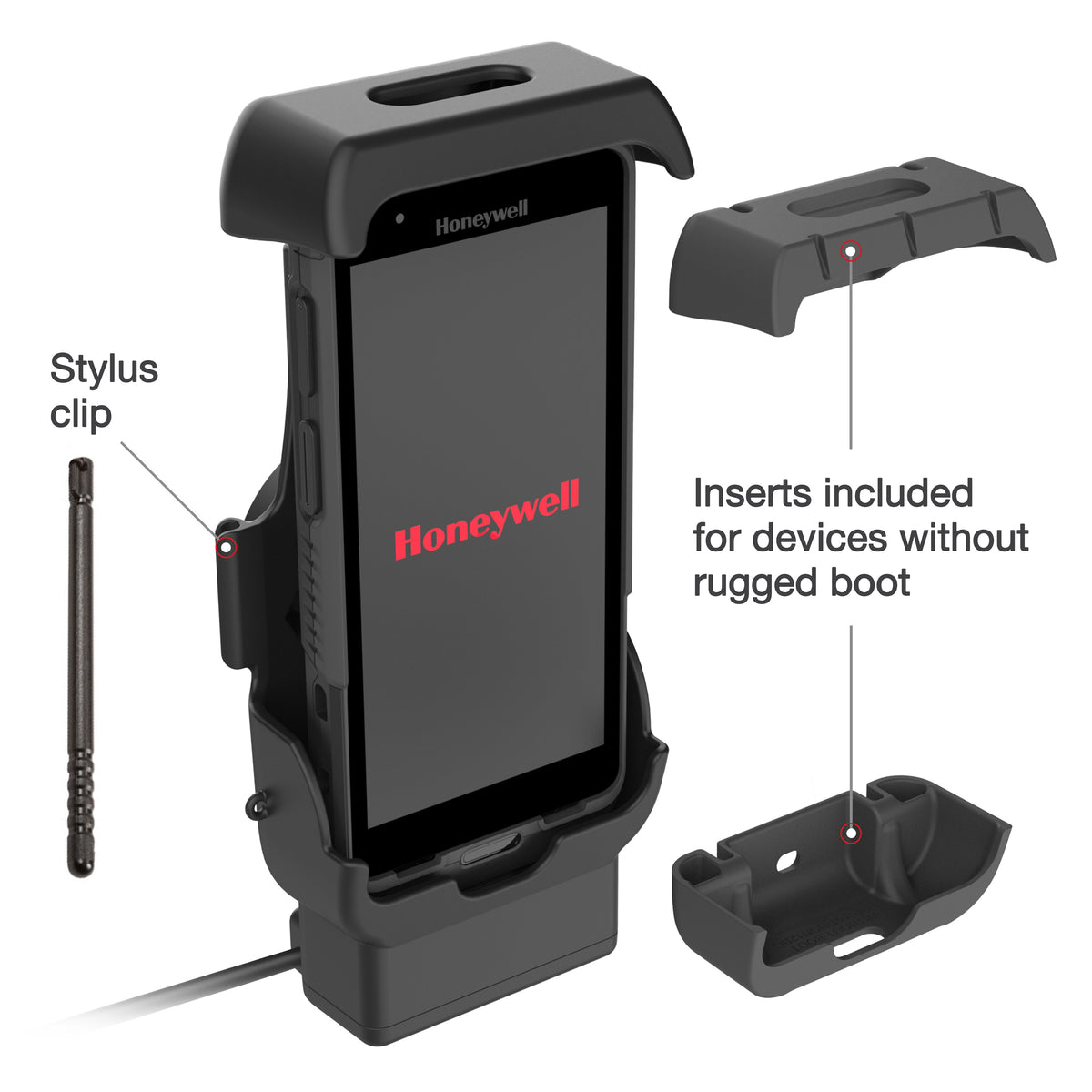

• Spring-loaded Form-Fit design – holds the CT40, CT45 or CT47 with or without the rubber boot (inserts included); integrated stylus holder and a cut-out that keeps the scanner usable

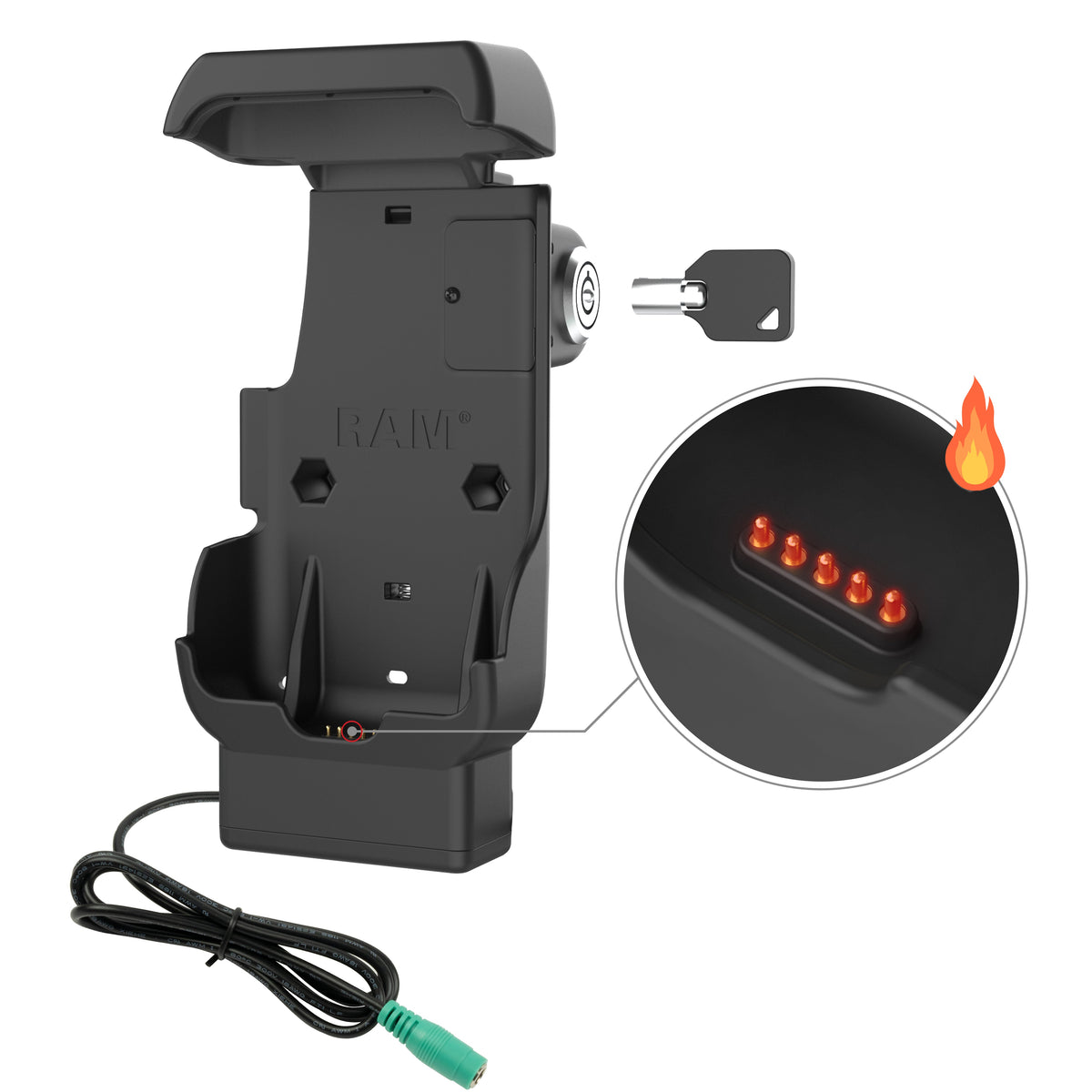

• Key lock – deters theft; 2 keys included

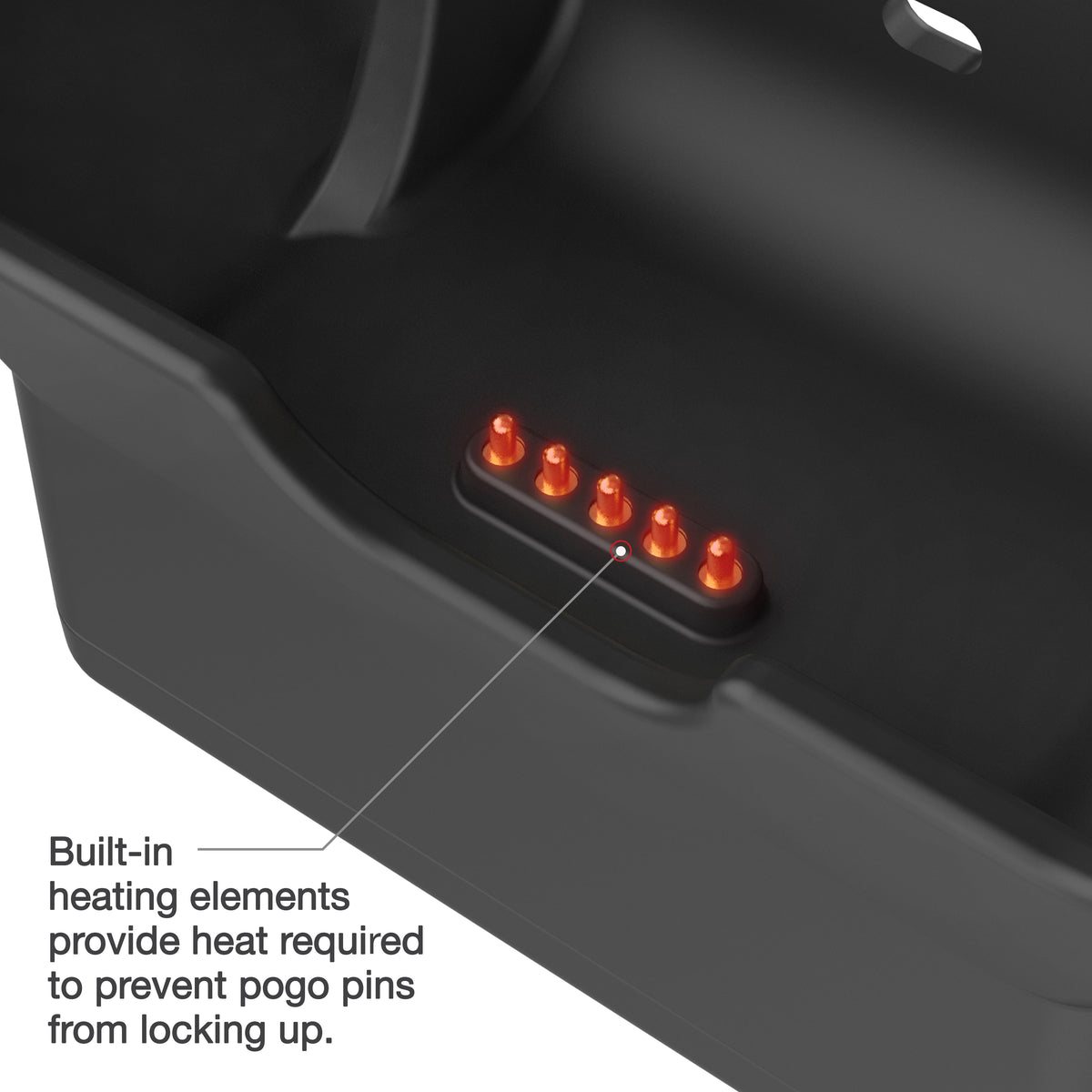

• Charging in the dock – 5 V DC input via a 1 m cable with female 5.5 mm DC barrel connector; pogo pins rated to 100,000 cycles; heated pins prevent icing in cold environments

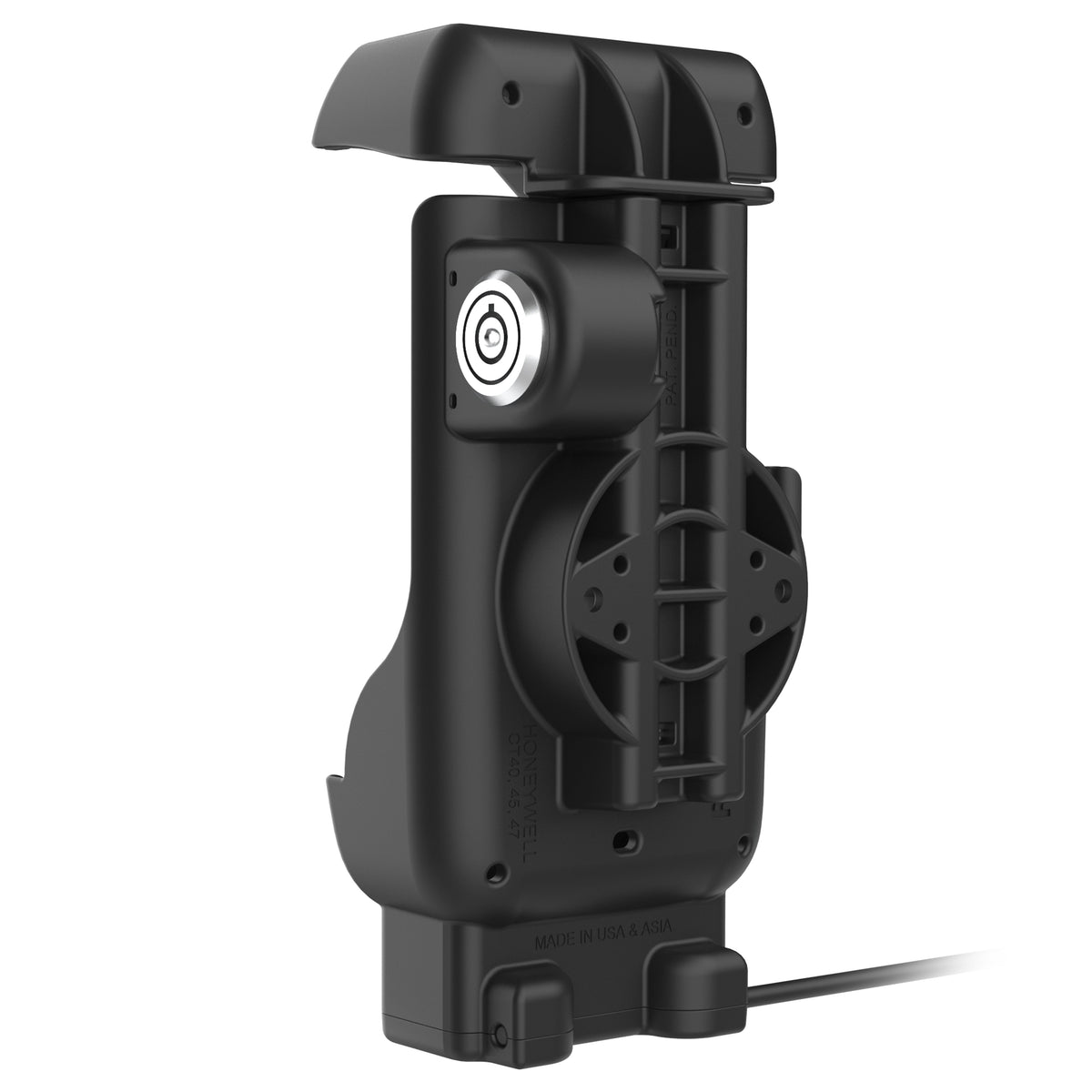

• RAM mounting – 2-hole AMPS pattern (48.6 mm) for RAM diamond bases and a double socket arm
• Built to last – high-strength composite, vibration and shock tested to MIL-STD-810H, backed by a 3-year RAM warranty

Compatibility

• Honeywell CT40 – with or without protective boot
• Honeywell CT45 – with or without protective boot
• Honeywell CT47 – with or without protective boot
• 2-hole AMPS (48.6 mm) for RAM diamond bases

Technical Specifications
