RAM Mounts GDS Dock + USB-A for Zebra TC73/TC78 in IntelliSkin (RAM-GDS-DOCK-V12-ZE35CPDU)
Regular price
147,51 € +VAT
RAM Mounts GDS Powered Dock + USB-A (RAM-GDS-DOCK-V12-ZE35CPDU) is made for the Zebra TC73 and TC78 mobile computers wrapped in the IntelliSkin Next Gen sleeve (RAM-GDS-SKIN-ZE35-NG) and suits vehicles, forklifts and other mobile workstations. Power comes in through a 1 m USB-C cable and reaches the device via built-in pogo-pin contacts, while a USB-A pigtail (500 mA) connects one additional peripheral. One-handed operation makes docking quick, and the top cutout leaves the buttons, ports and scanner accessible without removing the device.
📦 What's in the box – RAM-GDS-DOCK-V12-ZE35CPDU
- GDS Powered Dock + USB-A – for Zebra TC73 & TC78 in IntelliSkin Next Gen, 1 m USB-C input cable, USB-A peripheral pigtail
- Mounting hardware – machine screws (2× #8-32 x 1/2", 2× #8-32 x 5/8", 2× #8-32 x 3/4") and nyloc nuts (2× #8-32)
💡 To get started, you might also consider the IntelliSkin Next Gen sleeve for TC73/TC78 (required for docking), a B-size diamond ball base and a B-size double socket arm, plus a USB-C GDS hardwire charger (10–30 V) or the 30–60 V version for forklifts.
Key Features

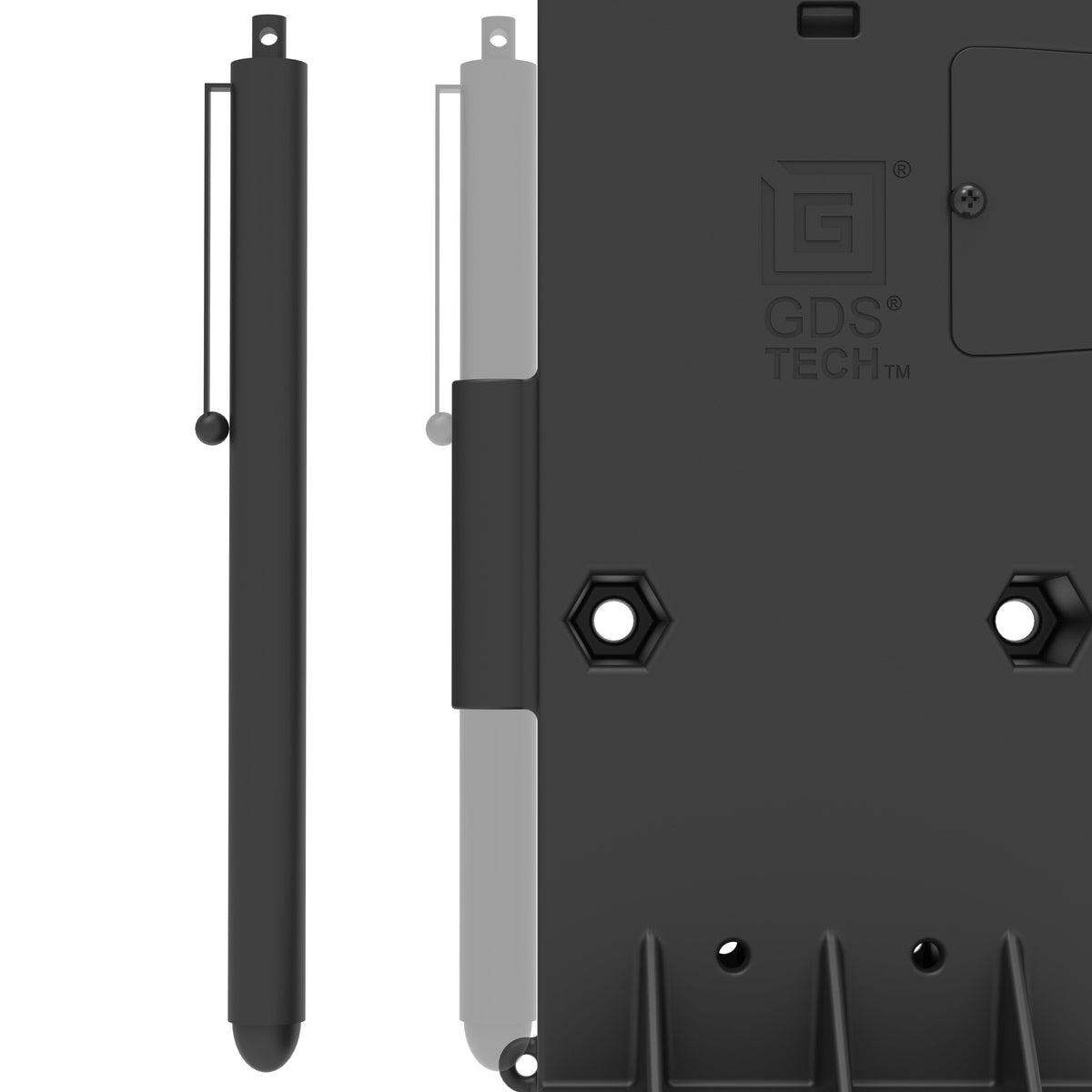

- GDS docking for IntelliSkin – designed for the TC73/TC78 in IntelliSkin Next Gen; spring-loaded, one-handed insertion and removal; integrated stylus holder

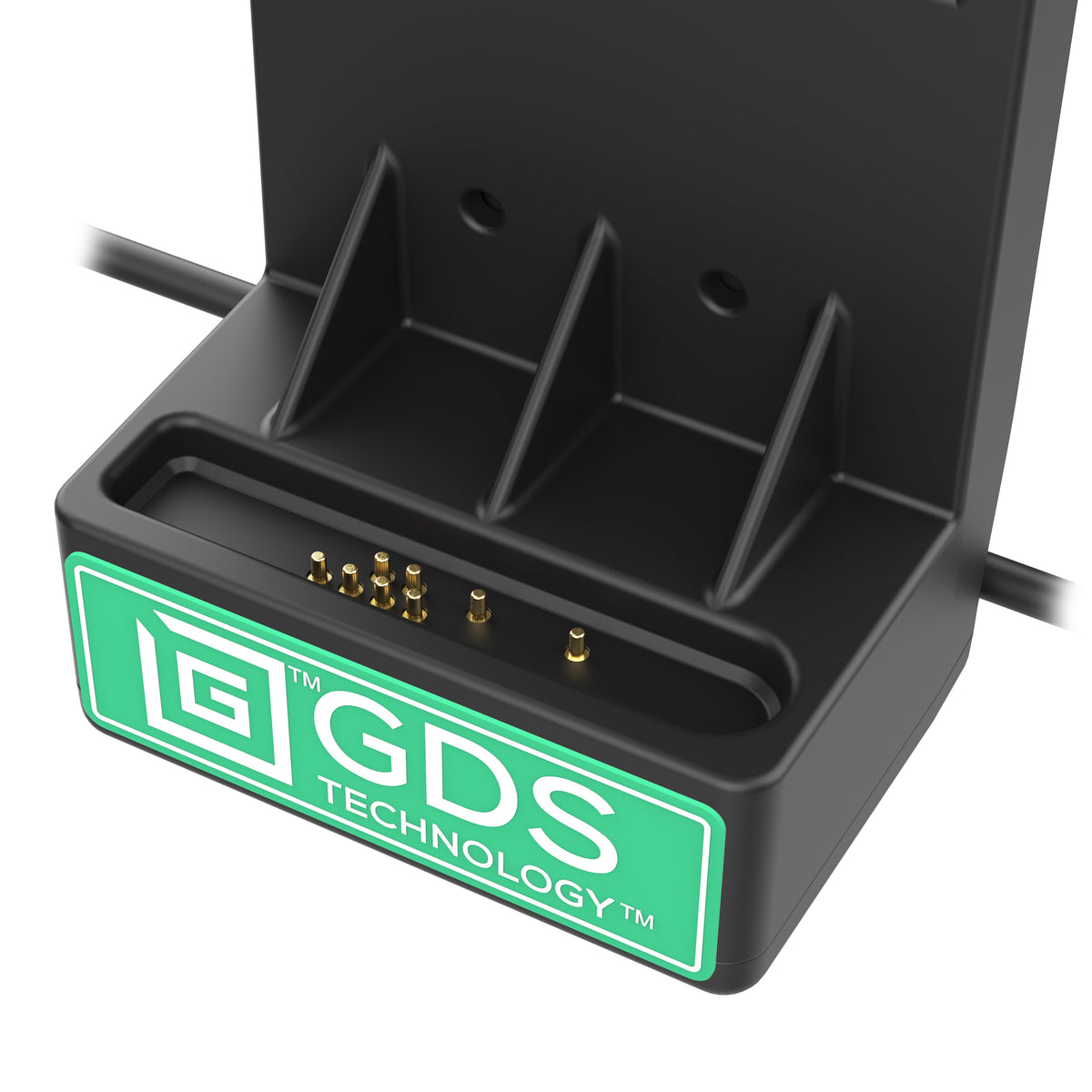

- USB-C power – 1 m USB-C input cable; charging through pogo-pin docking contacts
- USB-A peripheral port – pigtail connector for one additional peripheral, 500 mA output
- Room for accessories – space in the back for extended battery packs and the Zebra hand strap
- Mounting & build – 2-hole AMPS (48.6 mm) pattern for RAM diamond ball bases; high-strength composite, 3-year RAM warranty
Compatibility
- Zebra TC73 in IntelliSkin Next Gen (RAM-GDS-SKIN-ZE35-NG)
- Zebra TC78 in IntelliSkin Next Gen (RAM-GDS-SKIN-ZE35-NG)
- RAM diamond ball bases (2-hole AMPS, 48.6 mm)
Technical Specifications
| Part Number | RAM-GDS-DOCK-V12-ZE35CPDU |
|---|---|
| Product Type | GDS powered vehicle dock (USB-C) |
| Compatible Devices | Zebra TC73, Zebra TC78 in IntelliSkin Next Gen |
| Connection | RAM diamond ball bases (2-hole AMPS, 48.6 mm) |
| Locking | Non-locking |
| Power / Charging | 1 m USB-C input cable; charging via pogo-pin contacts; USB-A peripheral output 500 mA; charger sold separately |
| Material | High-strength composite |
| Weight | 0.31 kg (0.68 lb) |
| Warranty | 3 years (RAM Mounts) |
| In the Box | GDS Powered Dock + USB-A, mounting hardware |
You will find the device and more matching accessories in our Zebra TC73 collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
Available Versions
| Part Number | Locking | Ports / connector | Price | ||
|---|---|---|---|---|---|
 |
RAM-GDS-DOCK-V12-ZE35CPDUViewing | Non-locking | Power + 1× USB-A | 147,51 €+VATOut of Stock | |
 |
RAM-GDS-DOCK-V12-ZE35CPU | Non-locking | Power only | 94,19 €+VATIn Stock | |
 |
RAM-GDS-DOCKL-V12-ZE35CPDHU | Key-locking | Power + 1× USB-A, heated pins | 206,40 €+VATIn Stock | |
 |
RAM-GDS-DOCKL-V12-ZE35CPDU | Key-locking | Power + 1× USB-A | 180,17 €+VATIn Stock | |
 |
RAM-GDS-DOCKL-V12-ZE35CPU | Key-locking | Power only | 126,79 €+VATIn Stock |
