RAM Mounts Form-Fit Holder for Zebra TC22 & TC27 without Boot (RAM-HOL-ZE24-1U)

64,75 € +VAT
Locking
Key-lockingNon-locking
Power
Non-poweredPowered (USB-A)
Device case
Bare deviceWith rugged boot
Notify me when in stock

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

  • Available: Out Of Stock
  • Vendor: RAM MOUNT
  • Type: Holders
  • Barcode: RAM-HOL-ZE24-1U
RAM Mounts Form-Fit Holder for Zebra TC22 and TC27 without Rugged Boot – main product photo
RAM MOUNT
RAM Mounts Form-Fit Holder for Zebra TC22 & TC27 without Boot (RAM-HOL-ZE24-1U)
64,75 € +VAT

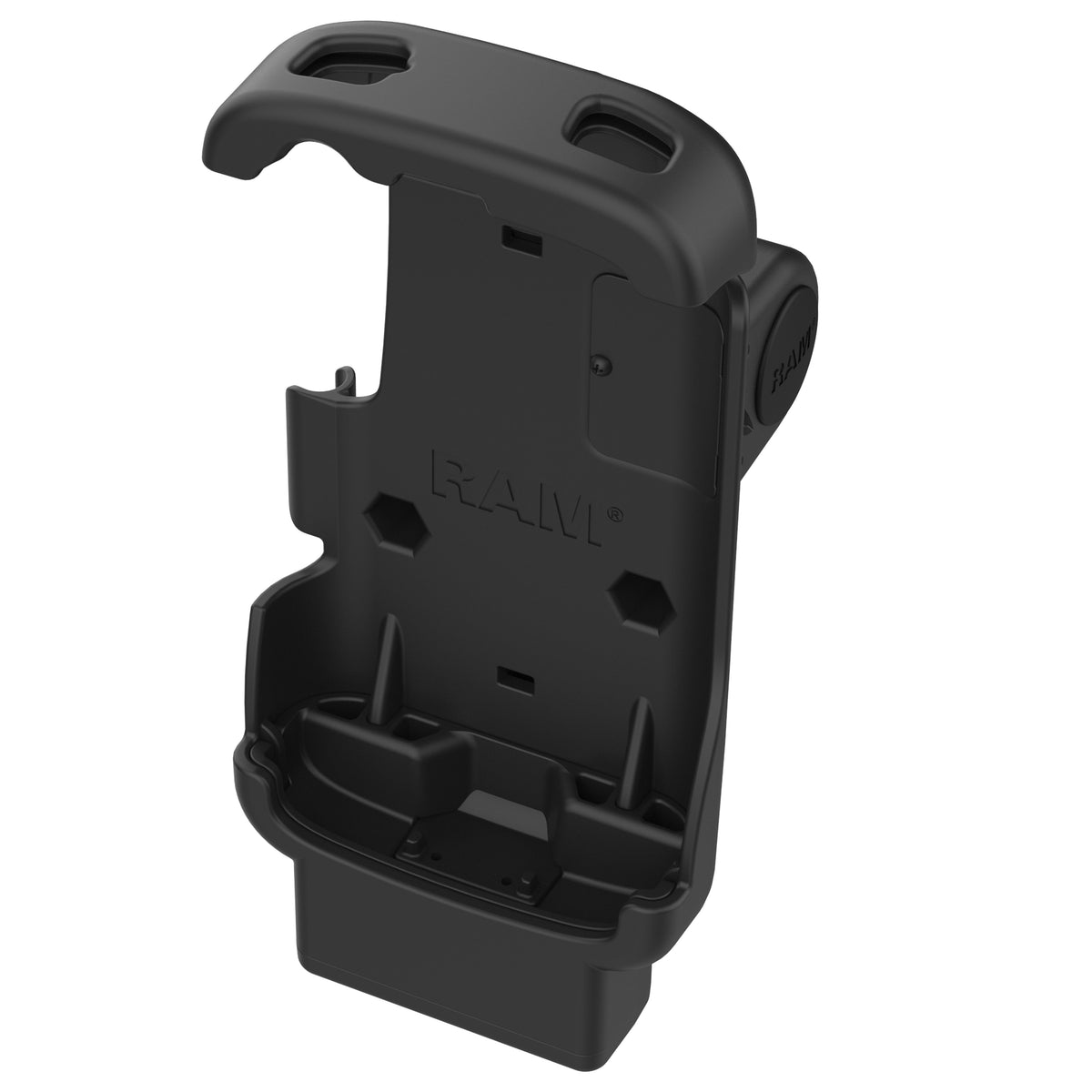

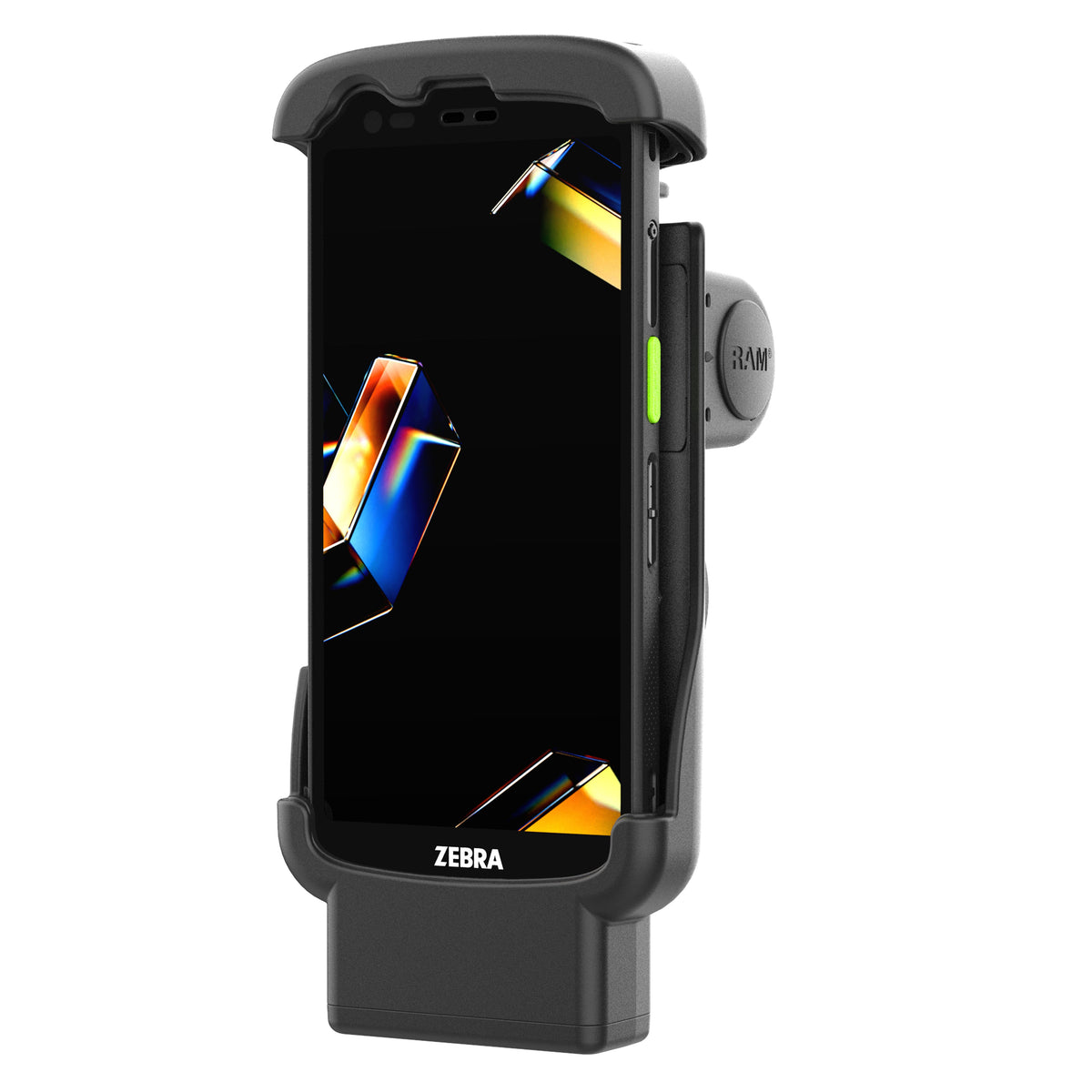

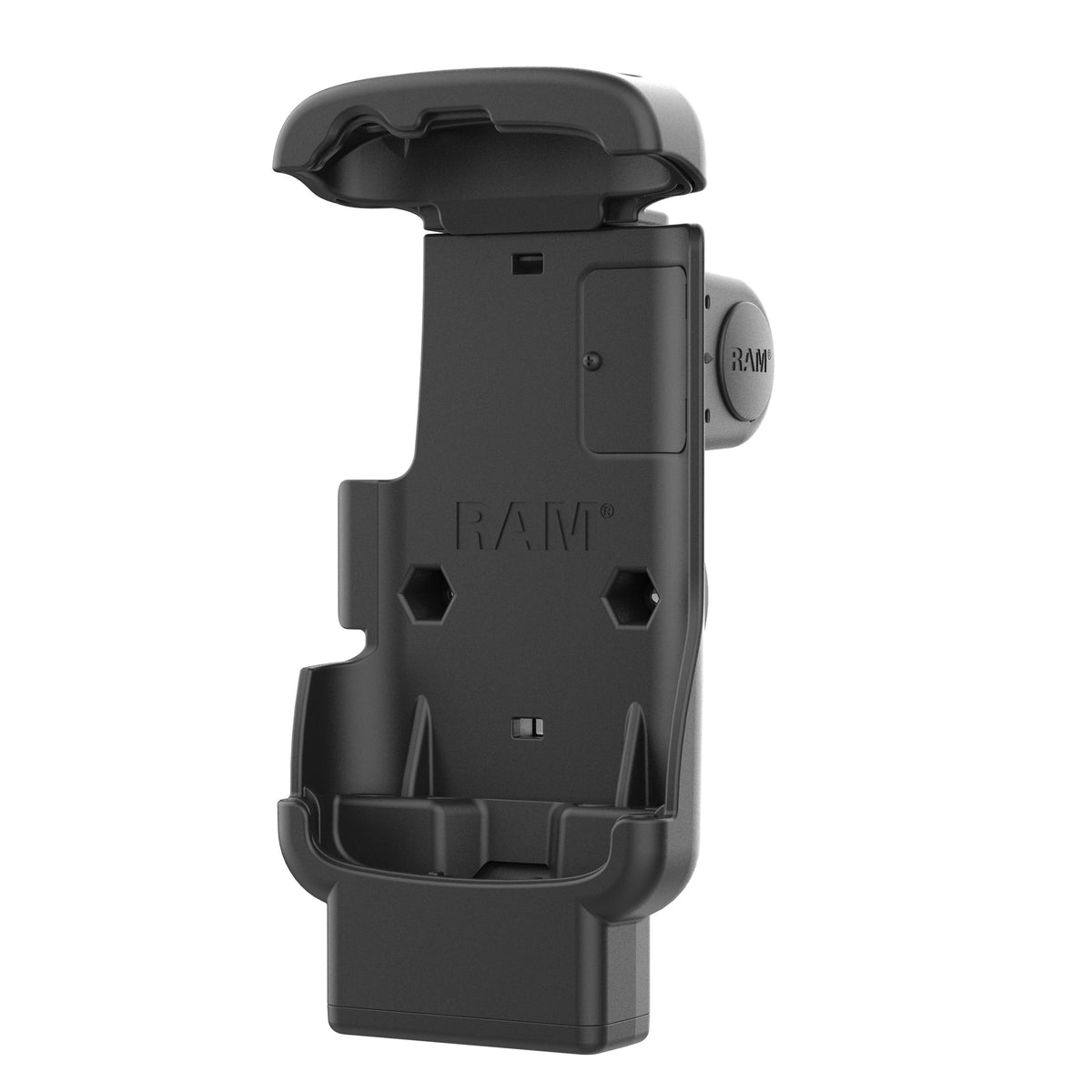

RAM Mounts Form-Fit Holder (RAM-HOL-ZE24-1U) holds the Zebra TC22, TC27 or TC201 handheld computer without the Rugged Boot – in delivery vehicles, forklifts, warehouse carts or at a counter. The spring-loaded cradle grips the device firmly, an integrated stylus holder keeps the stylus at hand and the Zebra hand strap can stay on; top and bottom shims ensure a snug fit without the boot.

📦 What's in the box – RAM-HOL-ZE24-1U

  • Form-Fit Holder – for Zebra TC22, TC27 & TC201 without Rugged Boot

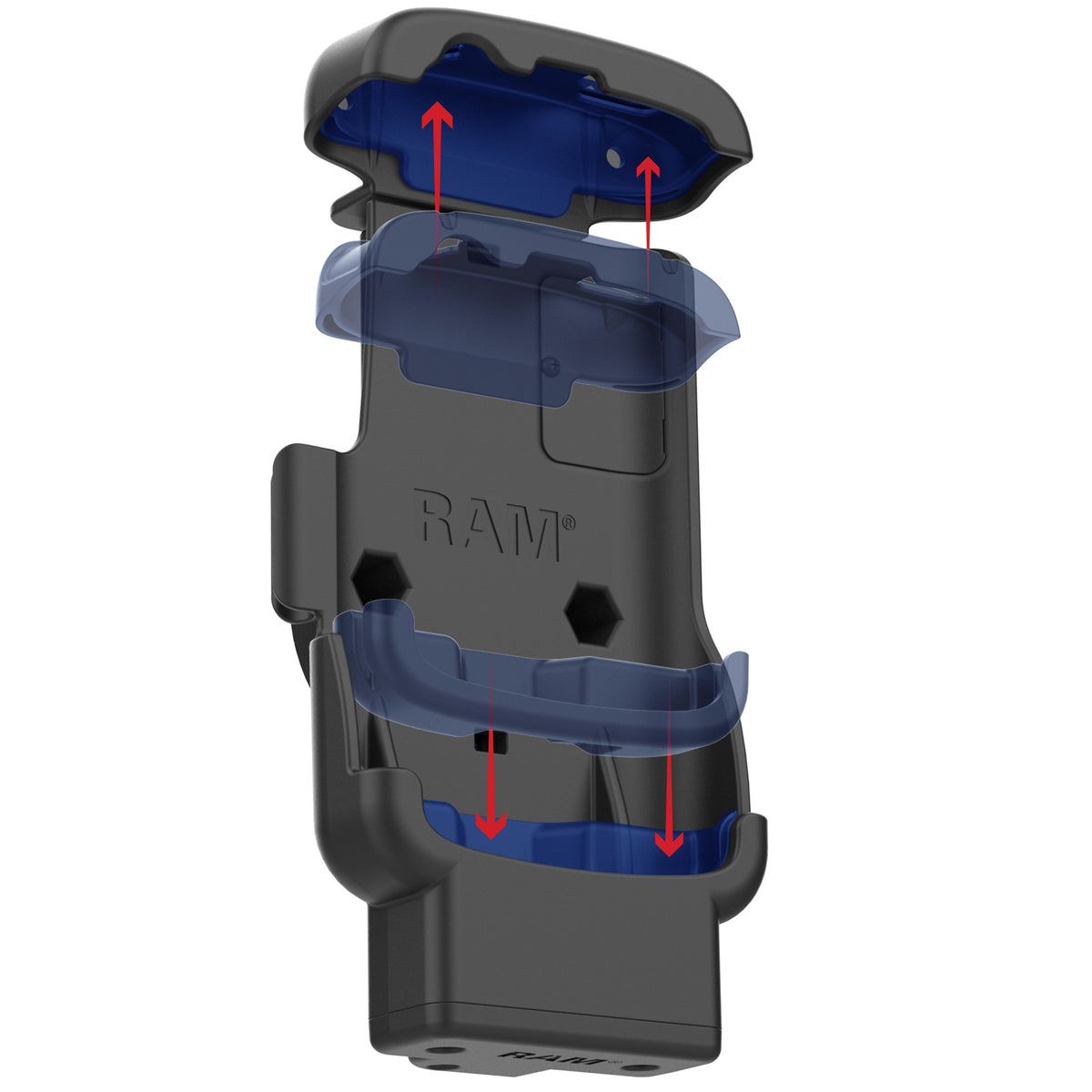

  • Top and bottom shims – for a snug fit without the Rugged Boot
  • Mounting hardware – machine screws (2× #8-32 x 5/8", 2× #8-32 x 3/4") and nyloc nuts (2× #8-32)

💡 To get started, you might also consider a B-size diamond ball base with a B-size double socket arm and a round ball base for the mounting surface.

View accessories →

Key Features

  • Spring-loaded Form-Fit cradle – shaped for the Zebra TC22, TC27 and TC201 without the Rugged Boot; top and bottom shims included

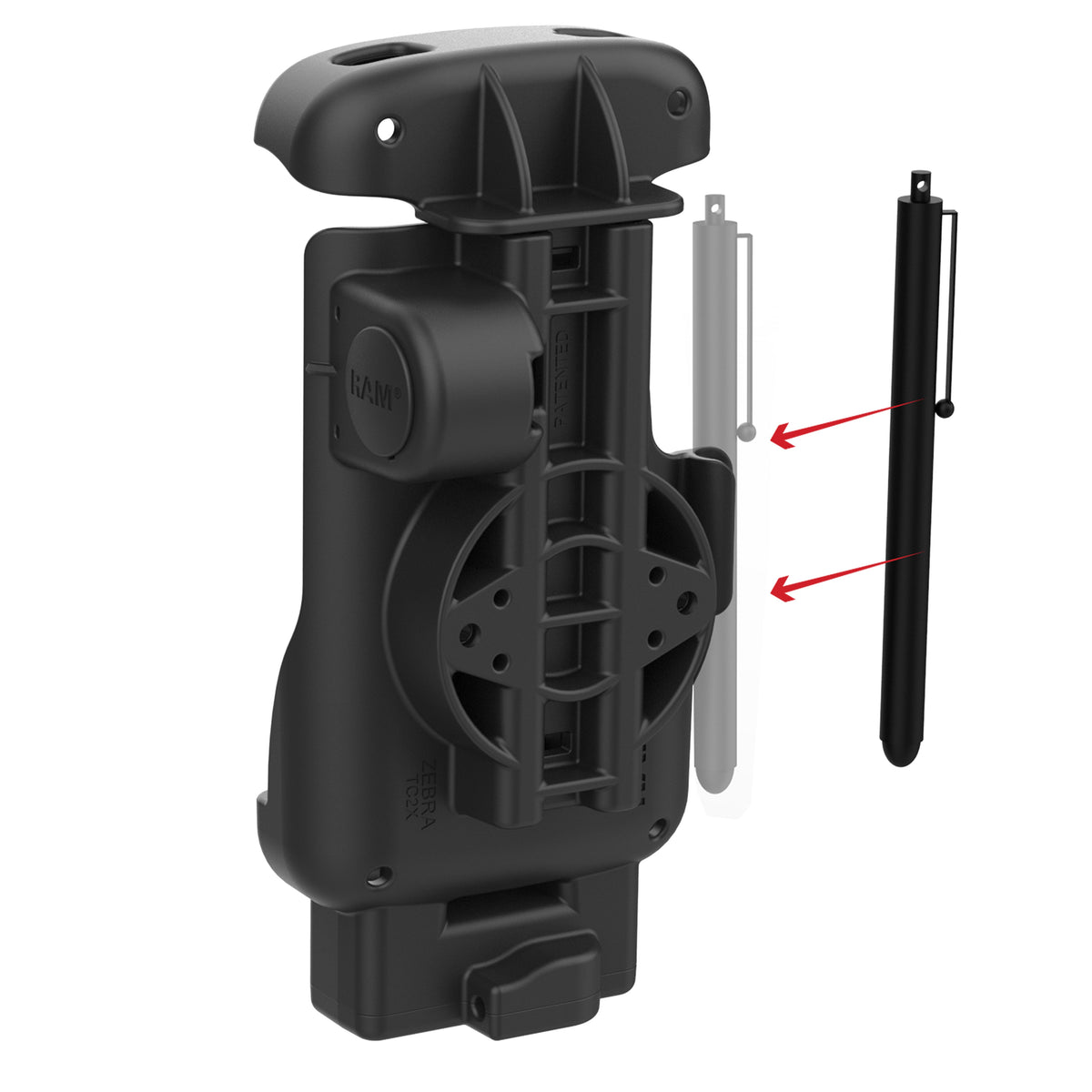

  • Stylus holder & hand strap – integrated stylus holder on the side; the Zebra hand strap fits
  • 2-hole AMPS pattern – 48.6 mm (1.912") diamond pattern for RAM B- or C-size diamond ball bases and double socket arms
  • Durable build – high-strength composite

Compatibility

  • Zebra TC22 (without Rugged Boot)
  • Zebra TC27 (without Rugged Boot)
  • Zebra TC201 (without Rugged Boot)
  • RAM B- or C-size diamond ball bases (2-hole AMPS, 48.6 mm)

Technical Specifications

Part Number RAM-HOL-ZE24-1U
Product Type Spring-loaded Form-Fit holder
Compatible Devices Zebra TC22, Zebra TC27, Zebra TC201 (without Rugged Boot)
Connection RAM B- or C-size diamond ball bases (2-hole AMPS, 48.6 mm)
Locking Non-locking
Power / Charging Non-powered
Material High-strength composite
Dimensions 196 × 93 × 65 mm (H × W × D)
Weight 0.25 kg (0.55 lb)
In the Box Form-Fit Holder, top and bottom shims, mounting hardware

You will find the devices and more matching accessories in our Zebra TC22 and Zebra TC27 collections. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.

Available Versions

Part NumberLockingPowerDevice casePrice
RAM Mounts Form-Fit Holder for Zebra TC22 & TC27 without Boot (RAM-HOL-ZE24-1U) RAM-HOL-ZE24-1UViewingNon-lockingNon-poweredBare device64,75 €+VATOut of Stock
RAM Mounts Key-Locking Form-Fit Holder for Zebra TC22 & TC27 without Boot (RAM-HOL-ZE24L-1U) RAM-HOL-ZE24L-1UKey-lockingNon-poweredBare device125,20 €+VATOut of Stock View
RAM Mounts Key-Locking Form-Fit Holder for Zebra TC22 & TC27 with Boot (RAM-HOL-ZE24LU) RAM-HOL-ZE24LUKey-lockingNon-poweredWith rugged boot88,26 €+VATOut of Stock View
RAM Mounts Form-Fit Powered Dock (USB-A) for Zebra TC22 & TC27 without Boot (RAM-HOL-ZE24P-1U) RAM-HOL-ZE24P-1UNon-lockingPowered (USB-A)Bare device92,58 €+VATOut of Stock View
RAM Mounts Key-Locking Form-Fit Powered Dock (USB-A) for Zebra TC22 & TC27 without Boot (RAM-HOL-ZE24PL-1U) RAM-HOL-ZE24PL-1UKey-lockingPowered (USB-A)Bare device123,46 €+VATOut of Stock View
RAM Mounts Key-Locking Form-Fit Powered Dock (USB-A) for Zebra TC22 & TC27 with Boot (RAM-HOL-ZE24PLU) RAM-HOL-ZE24PLUKey-lockingPowered (USB-A)With rugged boot117,36 €+VATOut of Stock View
RAM Mounts Form-Fit Powered Dock (USB-A) for Zebra TC22 & TC27 with Boot (RAM-HOL-ZE24PU) RAM-HOL-ZE24PUNon-lockingPowered (USB-A)With rugged boot86,48 €+VATOut of Stock View
RAM Mounts Form-Fit Holder for Zebra TC22 & TC27 with Boot (RAM-HOL-ZE24U) RAM-HOL-ZE24UNon-lockingNon-poweredWith rugged boot58,66 €+VATIn Stock
