Panasonic TOUGHBOOK 56 Rugged Laptop, 14" WUXGA, Core Ultra 5 235H, 16GB, 512GB SSD, 4G, Webcam, German QWERTZ Keyboard (FZ-56AZ00DB4)
Regular price
3.259,11 € +VAT

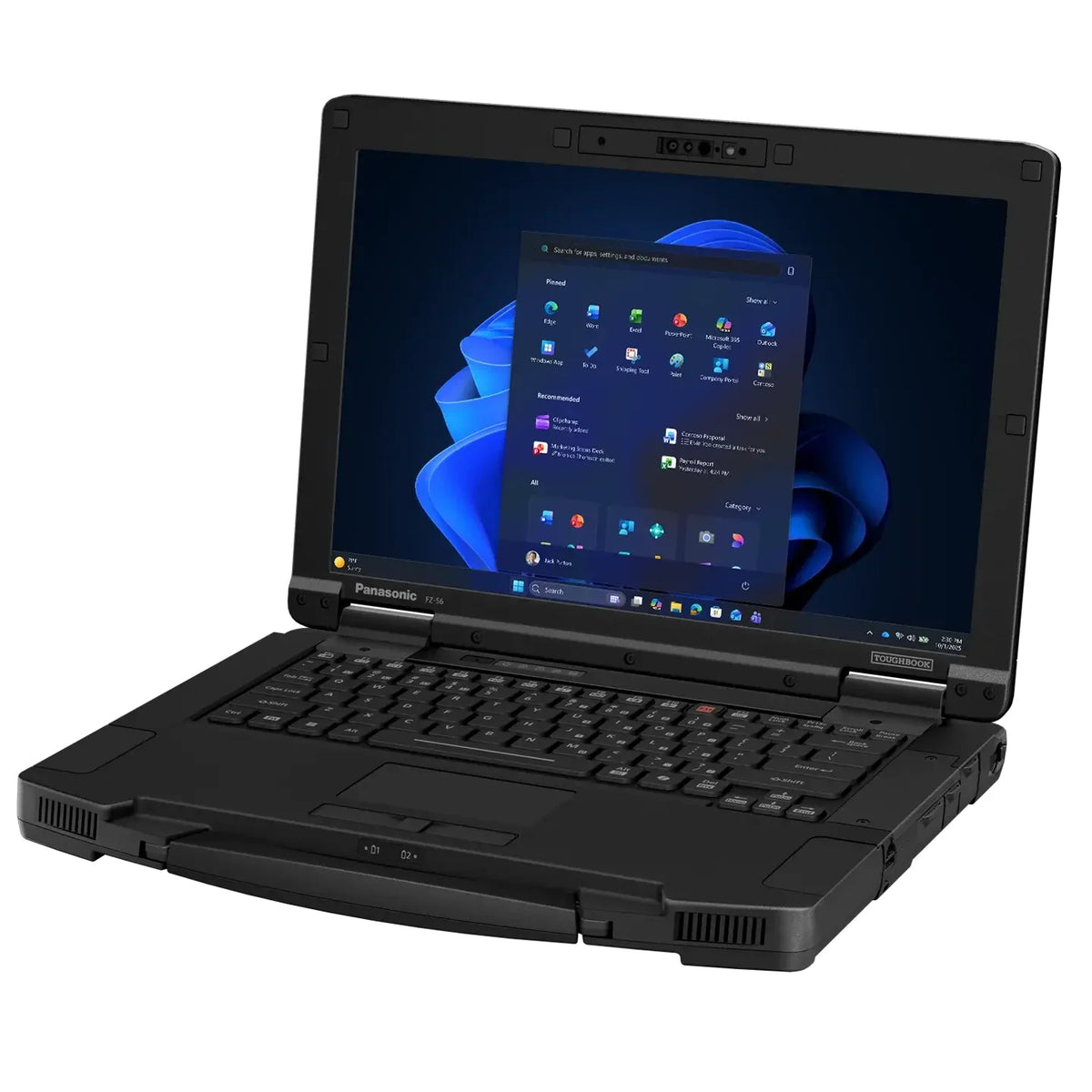

The Panasonic TOUGHBOOK 56 (FZ-56AZ00DB4) is a rugged, modular 14" Windows 11 Pro notebook and the successor to the TOUGHBOOK 55, built for field service, utilities, public safety, automotive testing, transport and logistics teams that need a configurable laptop able to survive daily field use. This configuration combines an Intel Core Ultra 5 235H vPro processor with Intel AI Boost NPU, 16 GB DDR5 RAM, a 512 GB NVMe OPAL SSD, a 14" WUXGA display (350 cd/m²), built-in 4G LTE and a German QWERTZ backlit keyboard in an IP53, MIL-STD-810H tested chassis that survives drops from 91 cm.
Key Features

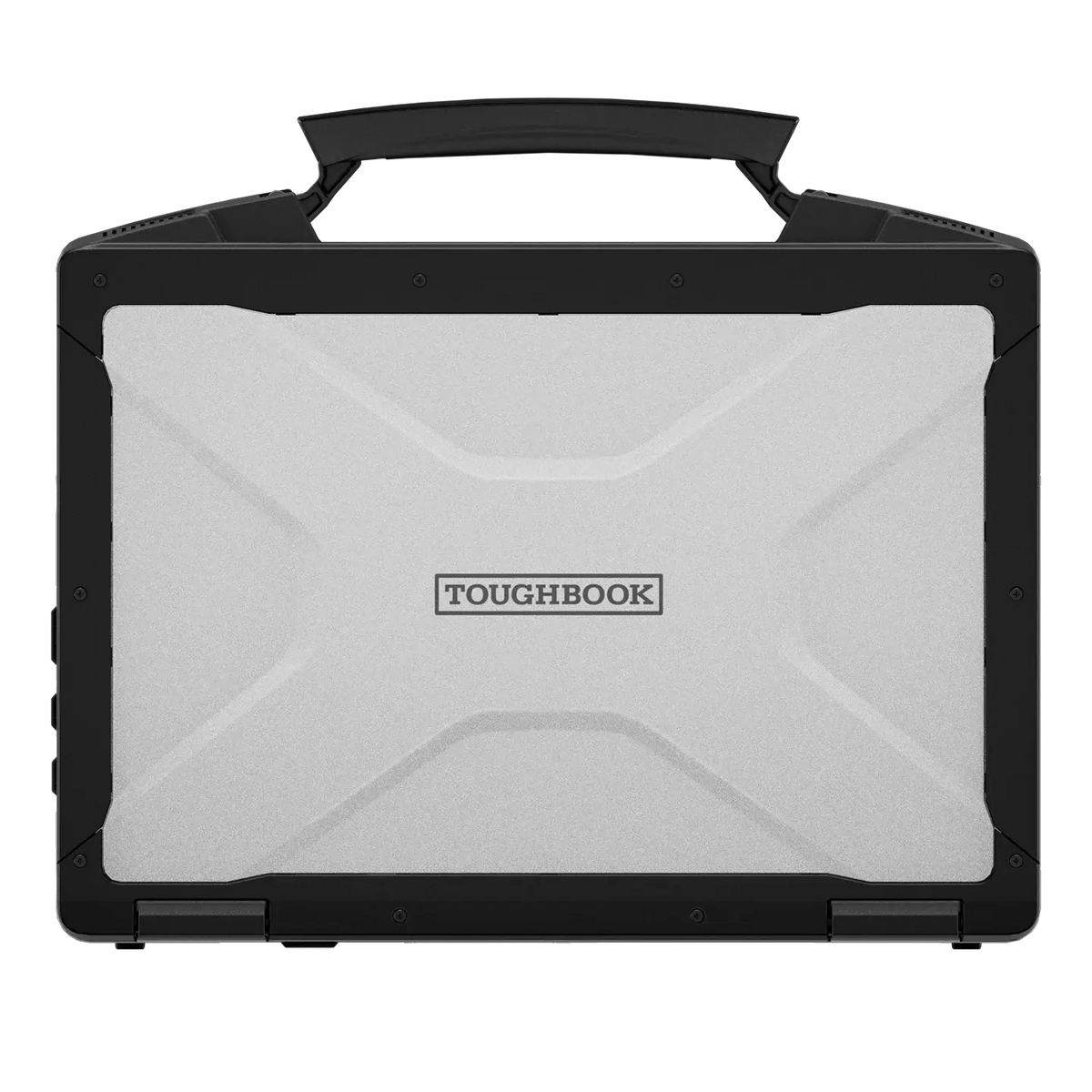

- Built for the field: IP53 dust and water resistance, tested to MIL-STD-810H, 91 cm drop resistance, –29 °C to +60 °C operating temperature and an integrated retractable carry handle.

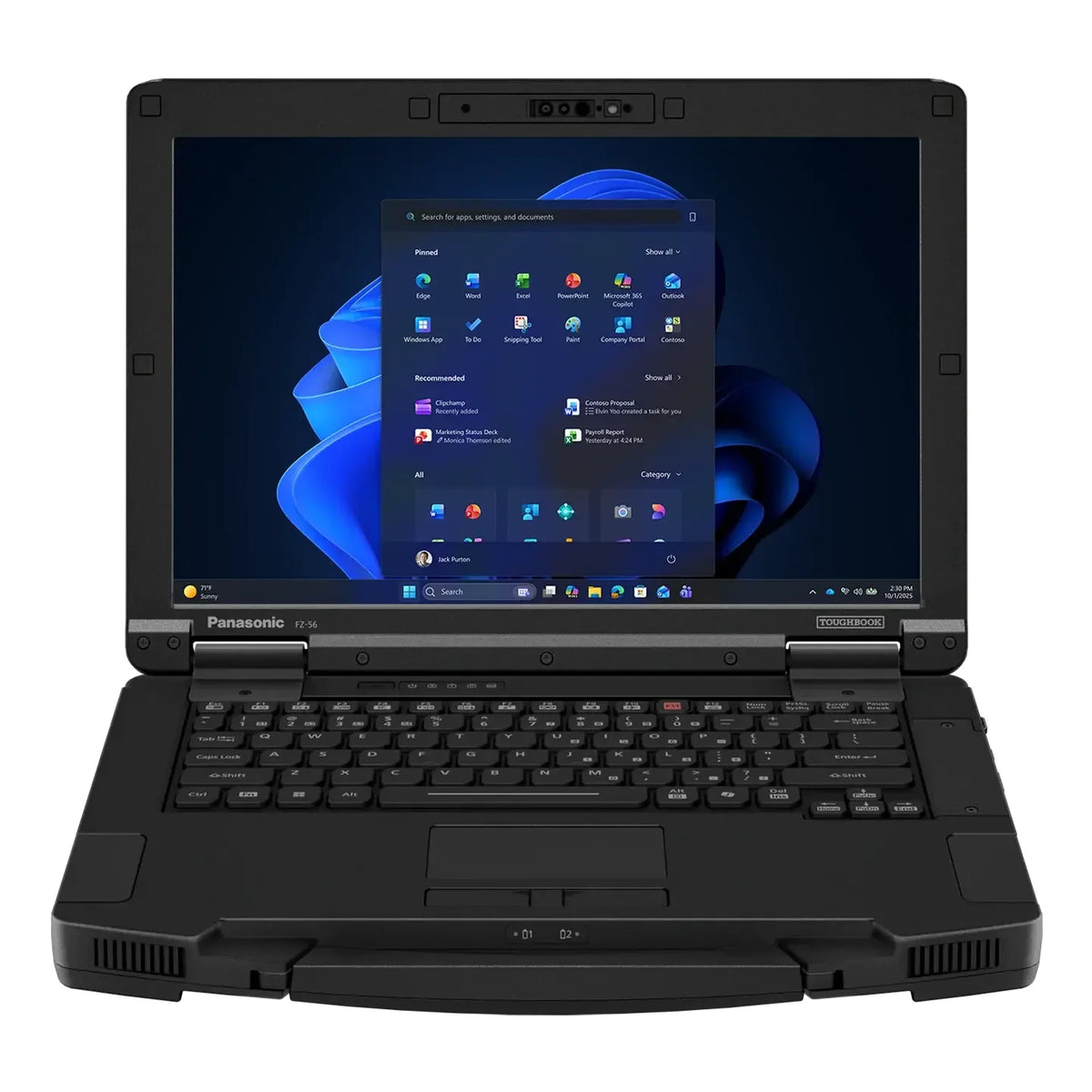

- 14" WUXGA display: 1920 × 1200 (16:10), up to 350 cd/m² – the lighter non-touch configuration, from approx. 2.12 kg.
- AI-ready performance: Intel Core Ultra 5 235H vPro (up to 5.0 GHz, 14 cores) with Intel AI Boost NPU and 16 GB DDR5 RAM, expandable to 64 GB.
- Secure storage: 512 GB NVMe SSD with OPAL self-encryption (max. 2 TB), plus an optional 2nd SSD in the left expansion area.
- Always connected: integrated 4G LTE with SIM/eSIM support, Wi-Fi 7 (Intel BE211) and Bluetooth 5.4.
- Long-shift battery: approx. 12 hours (MobileMark 30) on the standard battery; up to approx. 24 hours with an optional hot-swappable 2nd battery.

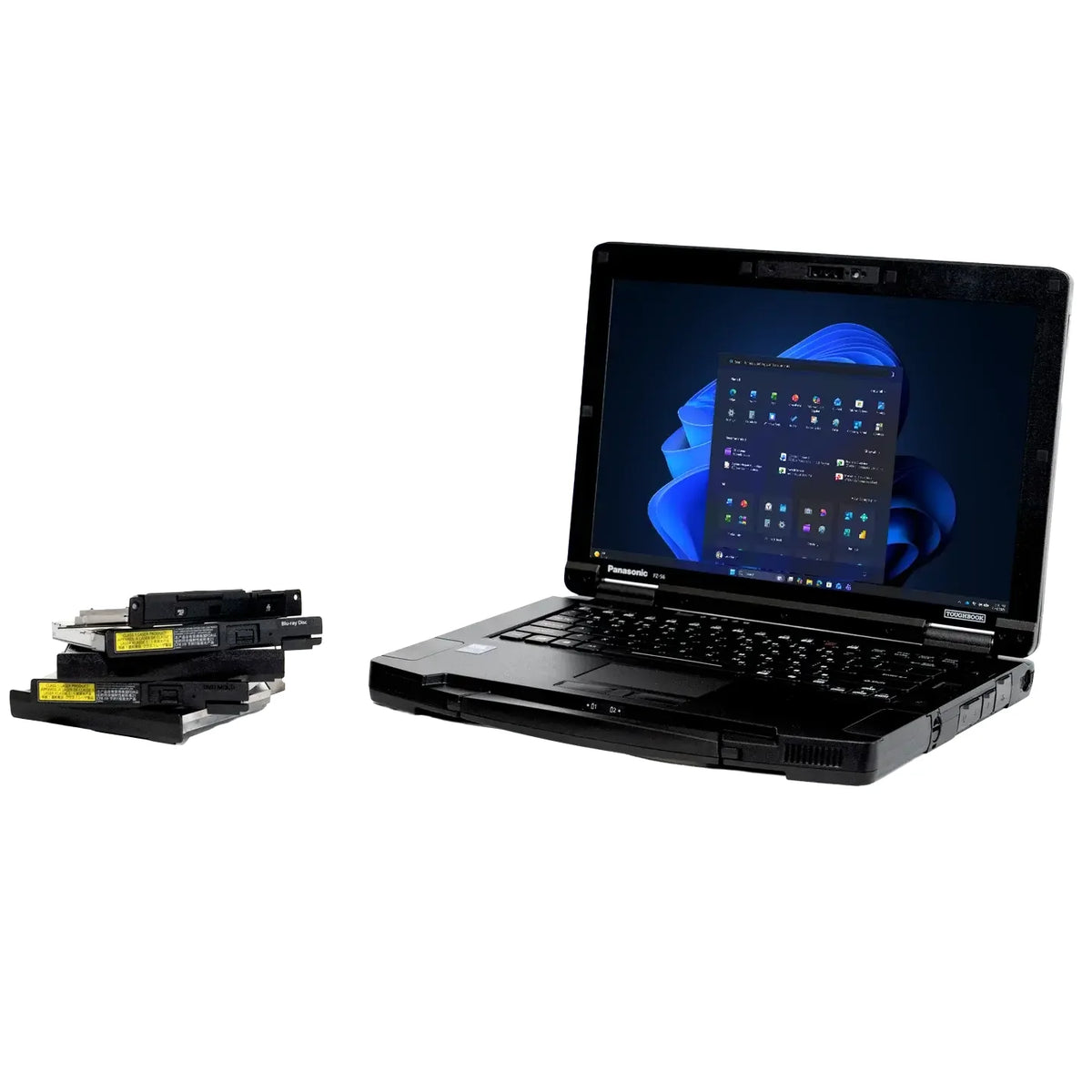

- Modular design: three expansion areas – left (native 10GbE LAN, 2nd SSD or smart card reader), right (2nd battery, fingerprint or smart card reader) and rear (VGA + true serial with USB or LAN, USB-C, or 2.5GbE + microSD).
- German QWERTZ backlit keyboard, 5 MP IR webcam with privacy shutter (Windows Hello), dual microphones with AI noise suppression and Microsoft Secured-core PC security.
Ideal Applications
- Field service and maintenance technicians – diagnostics on site and in vehicles
- Utilities, energy and telecom field crews
- Police, fire and emergency services – in-vehicle computing
- Automotive testing and vehicle diagnostics
- Transport, logistics and fleet operations
Technical Specifications
| Part number | FZ-56AZ00DB4 |
|---|---|
| Model | Panasonic TOUGHBOOK 56 (FZ-56 mk1) |
| Processor | Intel Core Ultra 5 235H vPro (up to 5.0 GHz, 14 cores), Intel AI Boost NPU |
| Operating system | Windows 11 Pro 64-bit |
| Display | 14" (35.6 cm) TFT, 1920 × 1200 WUXGA (16:10), up to 350 cd/m², non-touch |
| Memory | 16 GB DDR5 (max. 64 GB) |
| Storage | 512 GB NVMe OPAL SSD (max. 2 TB) |
| Graphics | Intel Graphics (Intel Arc Graphics with two memory modules) |
| Wireless | 4G LTE (SIM/eSIM), Wi-Fi 7 (Intel BE211), Bluetooth 5.4 Class 1 |
| Interfaces | 2× Thunderbolt 4 (USB-C), 1× USB 3.2 Type-A, 1× HDMI, 1× Gigabit LAN (RJ-45), 1× headset, DC-in |
| Rear expansion | None fitted (optional VGA/serial/USB/LAN, USB-C or 2.5GbE + microSD modules available) |
| Keyboard | German QWERTZ, backlit |
| Camera & audio | 5 MP front webcam with IR and privacy shutter (Windows Hello); 2 microphones with AI noise suppression, MaxxAudio speaker up to 98 dB, headset jack |
| Expansion areas | Left (10GbE LAN, 2nd SSD, smart card reader), right (2nd battery, fingerprint or smart card reader), rear expansion area |
| Battery | Li-ion; approx. 12 h (MobileMark 30), approx. 24 h with optional 2nd battery (hot-swap); charging time approx. 3 h |
| Ruggedness | IP53, MIL-STD-810H, 91 cm drop, –29 °C to +60 °C |
| Security | Microsoft Secured-core PC, TPM 2.0, Intel vPro, OPAL self-encrypting SSD, IR camera (Windows Hello) |
| Dimensions | 345 × 272 × 36.3 mm |
| Weight | from approx. 2.12 kg |
| Colour | Silver / Black |
| Warranty | 36 months |
| In the Box | AC adapter, EU power cord, battery |
Please note: this configuration (FZ-56AZ00DB4) ships with a German QWERTZ keyboard and an EU power cord. Need a different keyboard, display or connectivity option? Compare all configurations in our Rugged Laptops collection or contact our team for project pricing.
