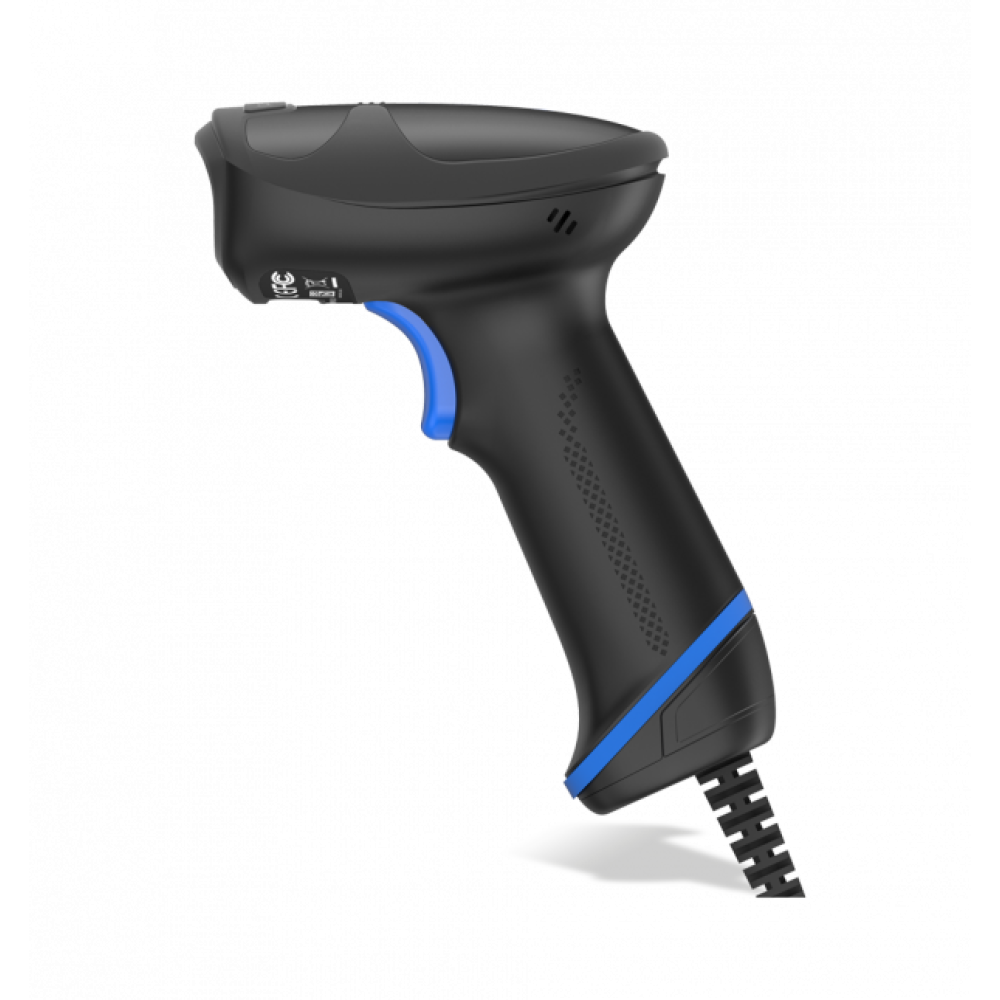

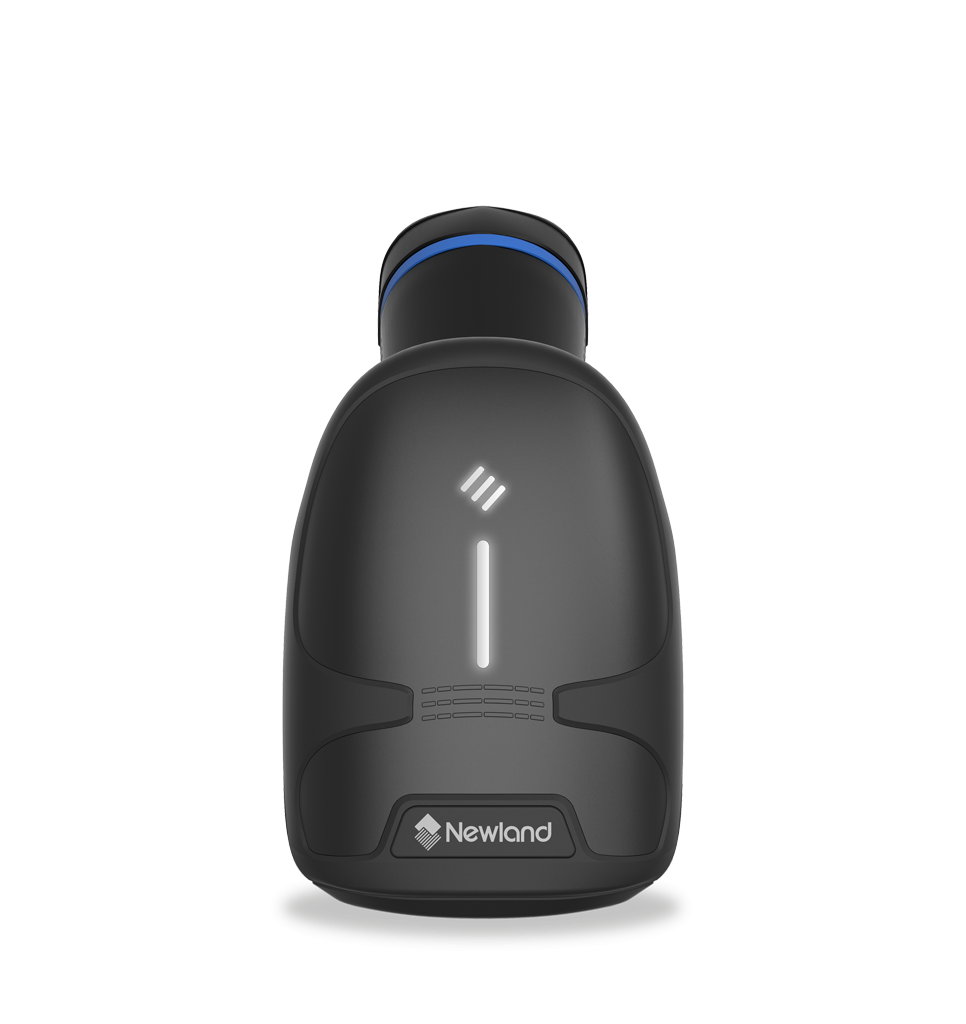

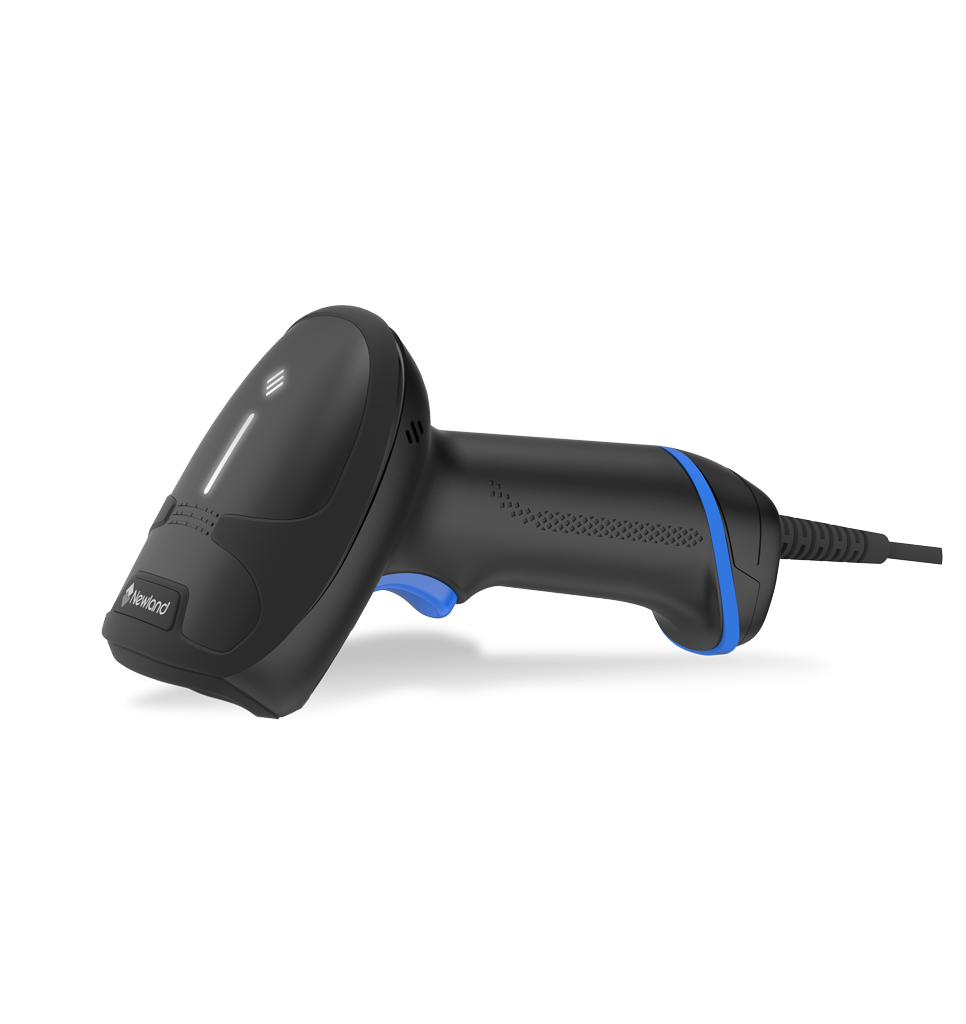

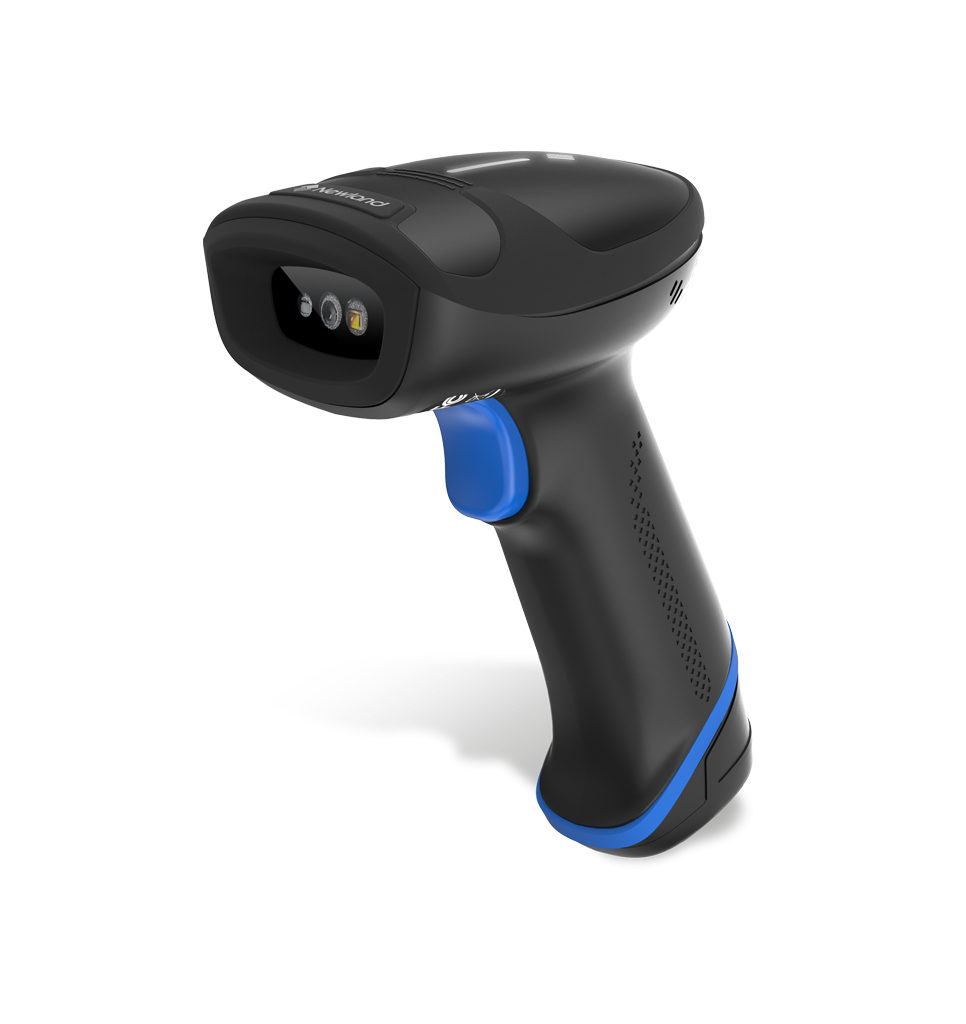

Newland HR33 Marlin Series Barcode Scanner (NLS-HR3300-BT)

The Newland HR33 Marlin is a stylish, well-balanced 2D handheld scanner for demanding everyday scanning. Its 1280 × 800 megapixel CMOS sensor, cross-laser aimer and Newland's latest decoding technology capture all common 1D and 2D barcodes – including QR codes, Data Matrix, PDF417 and DotCode – as well as damaged, distorted and high-density codes, and its OCR function even reads passports. With IP52 sealing, a 1.5 m drop rating, beep, LED and vibration feedback and a 5-year warranty, the HR33 is built for busy counters. It is available as a corded scanner for USB or RS-232 and as a cordless Bluetooth® version. This version, NLS-HR3300-BT, is the cordless Bluetooth kit: it is supplied with a 2600 mAh battery and a charging and communication cradle with fixed USB cable – ready to use, no power supply needed.

Key Features

• Megapixel performance – a 1280 × 800 CMOS sensor and Newland's latest decoding technology read all common 1D and 2D barcodes, including QR Code, Data Matrix, PDF417, Aztec and DotCode, with resolution down to 3 mil – even damaged, distorted or poorly printed codes (15% minimum print contrast).
• Precise cross-laser aimer – the laser aiming pattern makes it easy to pick the right code from a list or from tightly packed labels; depth of field up to 535 mm for EAN-13 and a 48° × 30° field of view.
• Passport OCR and GS1 ready – reads the machine-readable zone of passports and supports GS1 data formats, ideal for ID checks at hotels, banks and pharmacies.
• Triple read confirmation – beep, LED and vibration feedback, so every good read is noticed even in noisy environments.
• Built to last, 5-year warranty – IP52 protection against dust and dripping water, survives 1.5 m drops onto concrete and comes with Newland's 5-year standard warranty.
• EasySet and advanced scripting – configure the scanner with Newland's EasySet software or use advanced scripting to program complex data formatting and commands.
• Bluetooth 5.0 with up to 100 m range – synchronous, asynchronous and batch modes (≥ 16,384 codes in memory) make sure no scan is lost, even out of range.
• Easily replaceable 2600 mAh battery – ≥ 15 hours of continuous operation; the latch-release battery compartment allows a quick swap, and a two-colour low-battery indicator warns you in time.

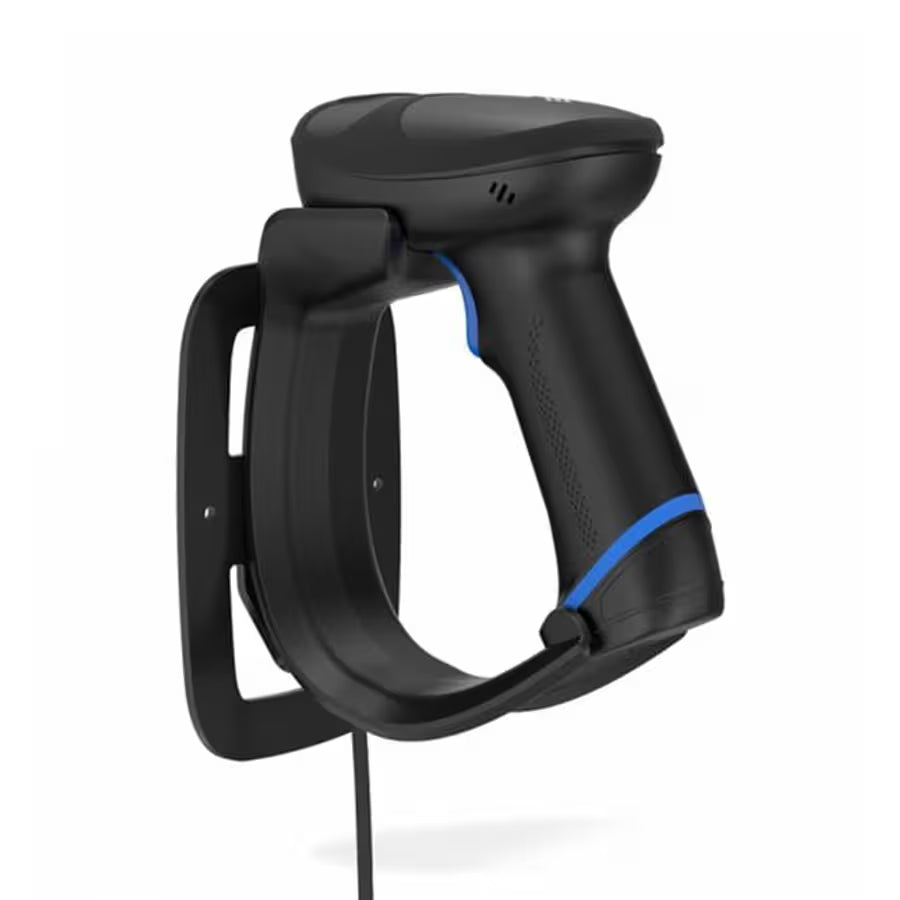

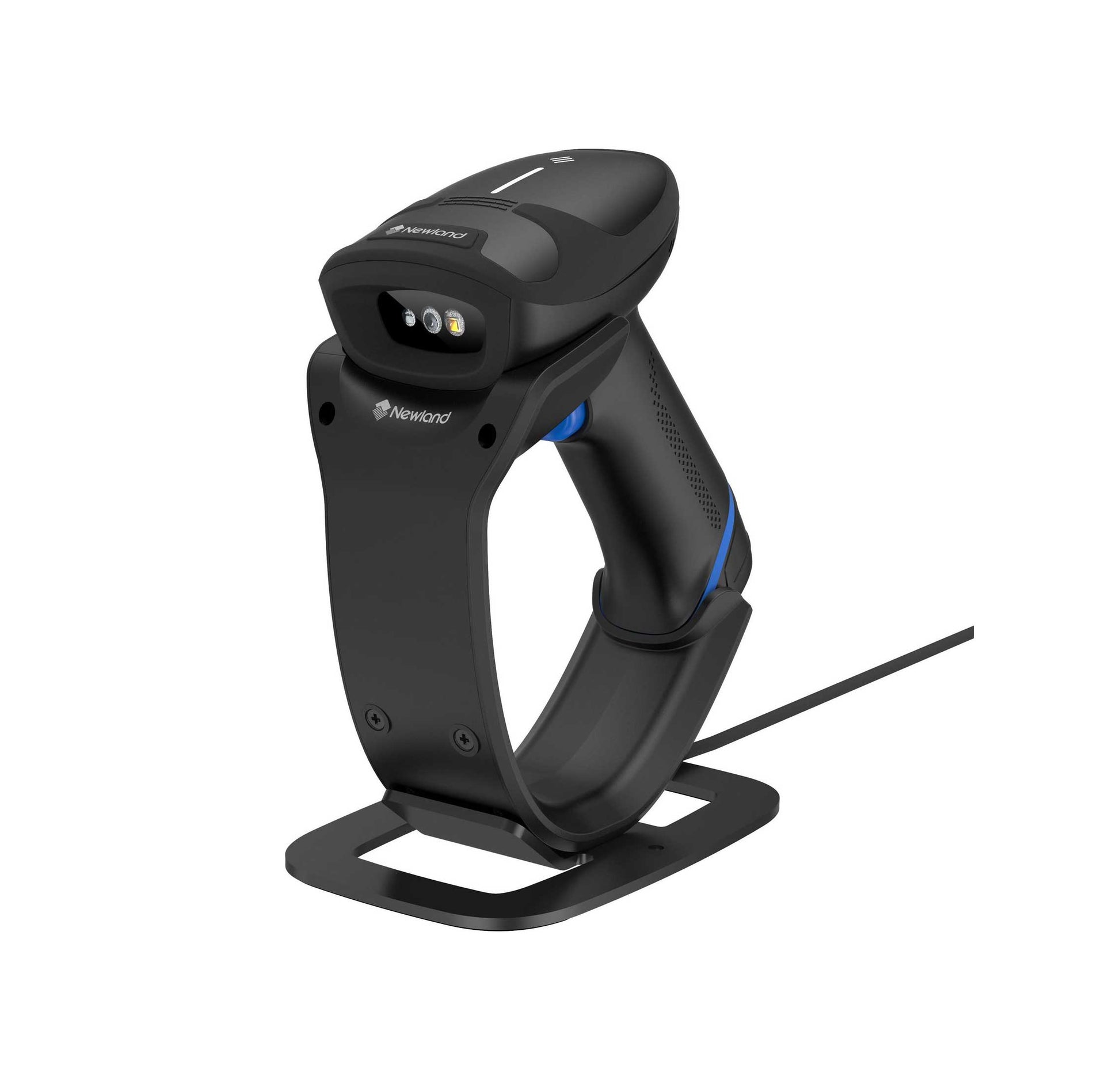

• Magnetic charging contacts – the scanner sits securely in its charging and communication cradle for reliable charging and connection.

Ideal Applications

• Retail checkouts and POS – product barcodes, loyalty cards and coupons
• Healthcare and pharmacies – patient wristbands, medication and sample labels
• Postal services, parcel shops and logistics counters
• Warehousing – goods receiving, picking and inventory
• Banks, hotels and front desks – ID documents with passport OCR

All HR33 Marlin Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? Choose the corded NLS-HR3300-S5 for a simple USB setup, the NLS-HR3300-SA if you also want hands-free scanning with the auto-sense stand, the NLS-HR3300-S8 for POS systems with a serial (RS-232) interface, or the cordless NLS-HR3300-BT to move freely up to 100 m from its cradle. Compare other models in our Cordless / Wireless Barcode Scanners collection or contact our team for volume pricing.
