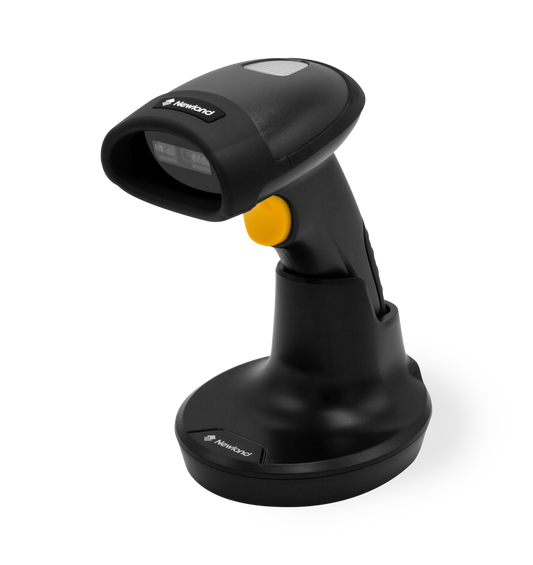

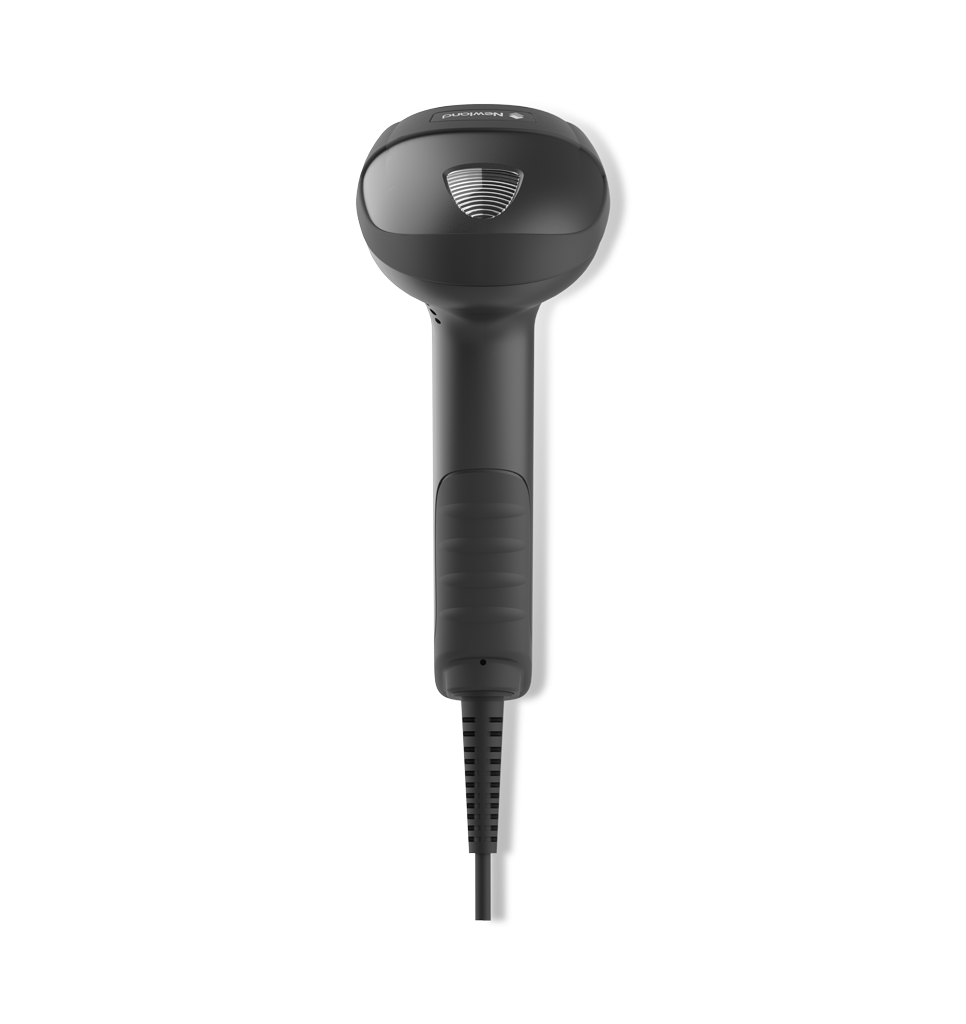

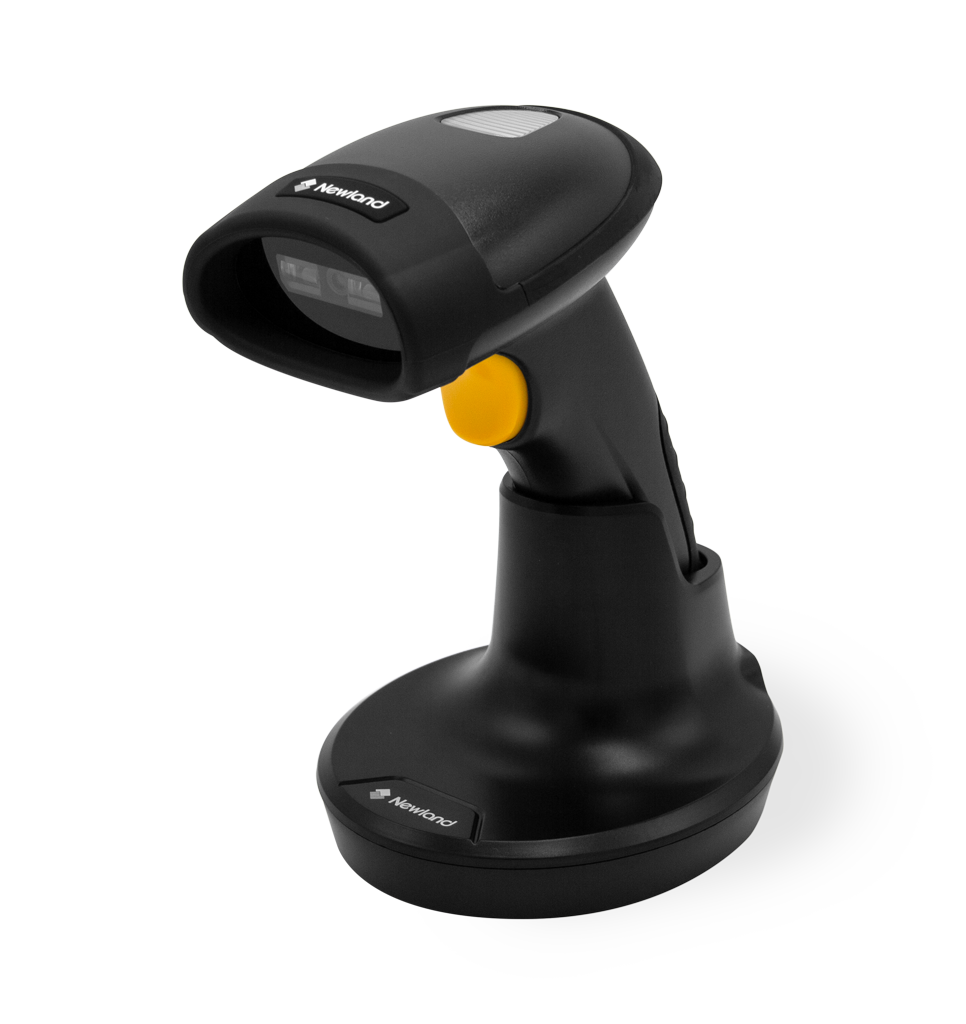

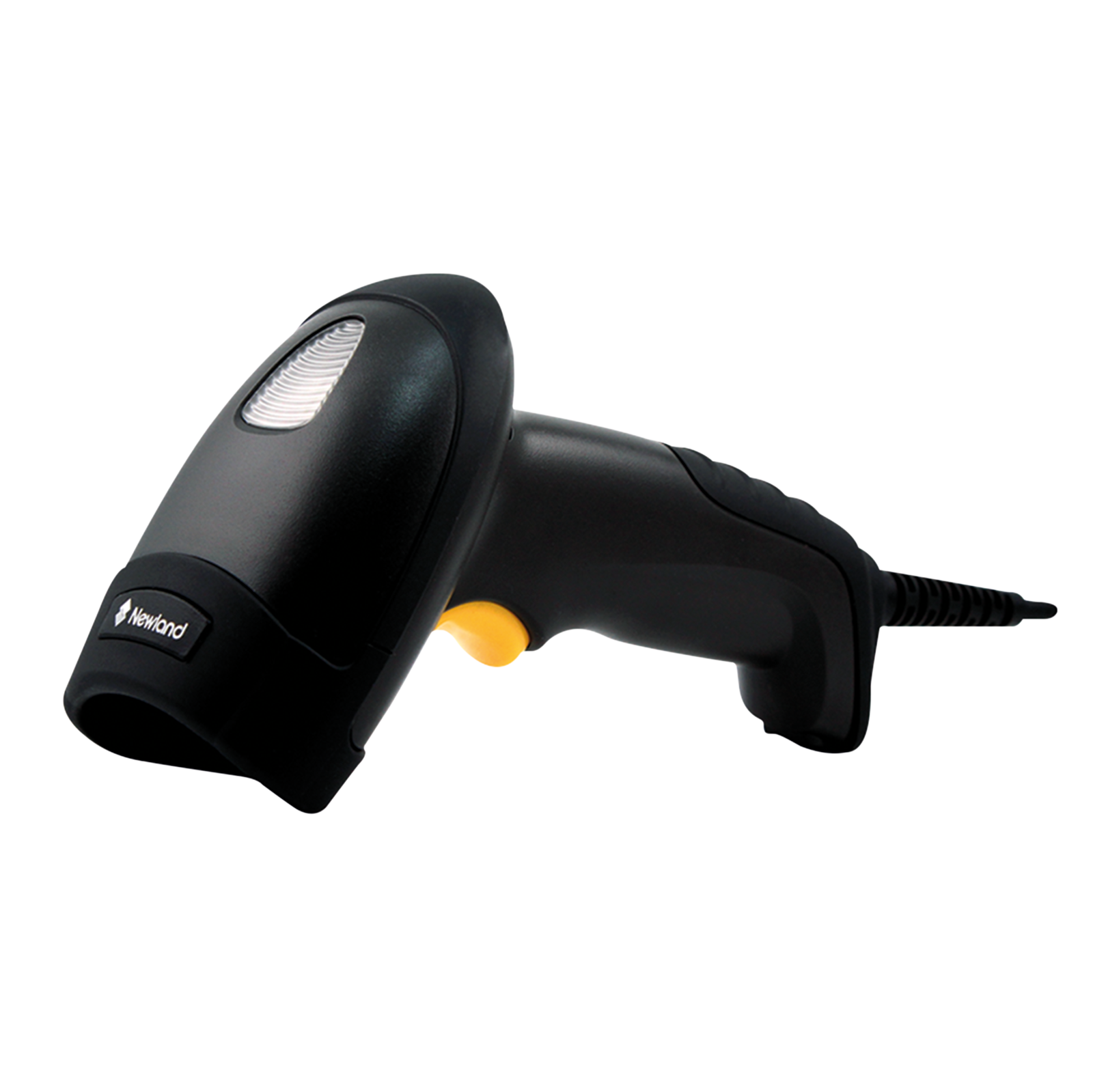

Newland HR15 Wahoo Series Barcode Scanner (NLS-HR1580-BT-SD)

The Newland HR15 Wahoo is a compact, lightweight 1D handheld scanner for everyday barcode scanning at the checkout, in the stockroom and at the service desk. Its 2500-pixel CCD linear imager and Newland's UIMG decoding technology read all major 1D barcodes quickly – also from a distance, with a feel much closer to a laser scanner than a classic CCD reader. The HR15 Wahoo is available as a corded scanner for USB or RS-232 and as a cordless Bluetooth® version with charging and communication stand. Please note: the HR15 reads 1D barcodes (the corded model also reads PDF417 stacked codes) – it does not read QR codes. This version, NLS-HR1580-BT-SD, is the cordless Bluetooth kit: it is supplied with a charging and communication stand and a USB cable – ready to use, no power supply needed.

Key Features

• Fast 1D scanning – a 2500-pixel CCD linear imager with Newland's UIMG decoding technology reads all major 1D barcodes quickly and from a distance, with performance much closer to a laser scanner than a classic CCD reader.
• Lightweight, ergonomic design – the compact HR15 lies comfortably in the hand and enables all-day scanning in scan-intensive situations, reducing fatigue.
• Easy setup with EasySet – Newland's EasySet configuration tool sets up the scanner, clones settings to other devices and prints configuration barcodes.
• Three ways to connect – via the stand with USB dongle and USB cable, via the dongle alone in a free USB port, or by pairing directly with a Bluetooth host; JPOS and OPOS drivers are supported in HID-POS or Newland CDC mode.
• POS stand for hands-free scanning – scan small items without picking up the scanner, then lift it off the stand for larger items – no cable in the way. Bluetooth 5.0 range up to 50 m with batch memory for ≥ 15,000 codes.
• All-day battery – the 2400 mAh battery lasts over 12 hours per charge and charges from empty in under 4 hours; IP42 sealing and 1.5 m drop resistance for daily use.

Ideal Applications

• Retail checkouts and POS – product barcodes, loyalty cards and coupons
• Supermarkets, shopping malls and convenience stores
• Warehouses and stockrooms – goods receiving, picking and inventory
• Healthcare – 1D labels on samples, medication and documents
• Hospitality, ticketing, libraries and service desks

All HR15 Wahoo Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? For a PC or POS with a USB port, choose the NLS-HR1550-35 with coiled USB cable – or the NLS-HR1550-35F if you also want the foldable smart stand for hands-free scanning. For a serial RS-232 connection, the NLS-HR1550-38 includes both the RS-232 cable and the power supply, while for the NLS-HR1550-37 a 5 V power supply has to be ordered separately. To scan without a cable, choose the cordless NLS-HR1580-BT-SD with its charging and communication stand. Need to read QR codes or other 2D codes? Then choose a 2D scanner. Compare other models in our Cordless / Wireless Barcode Scanners collection or contact our team for volume pricing.
