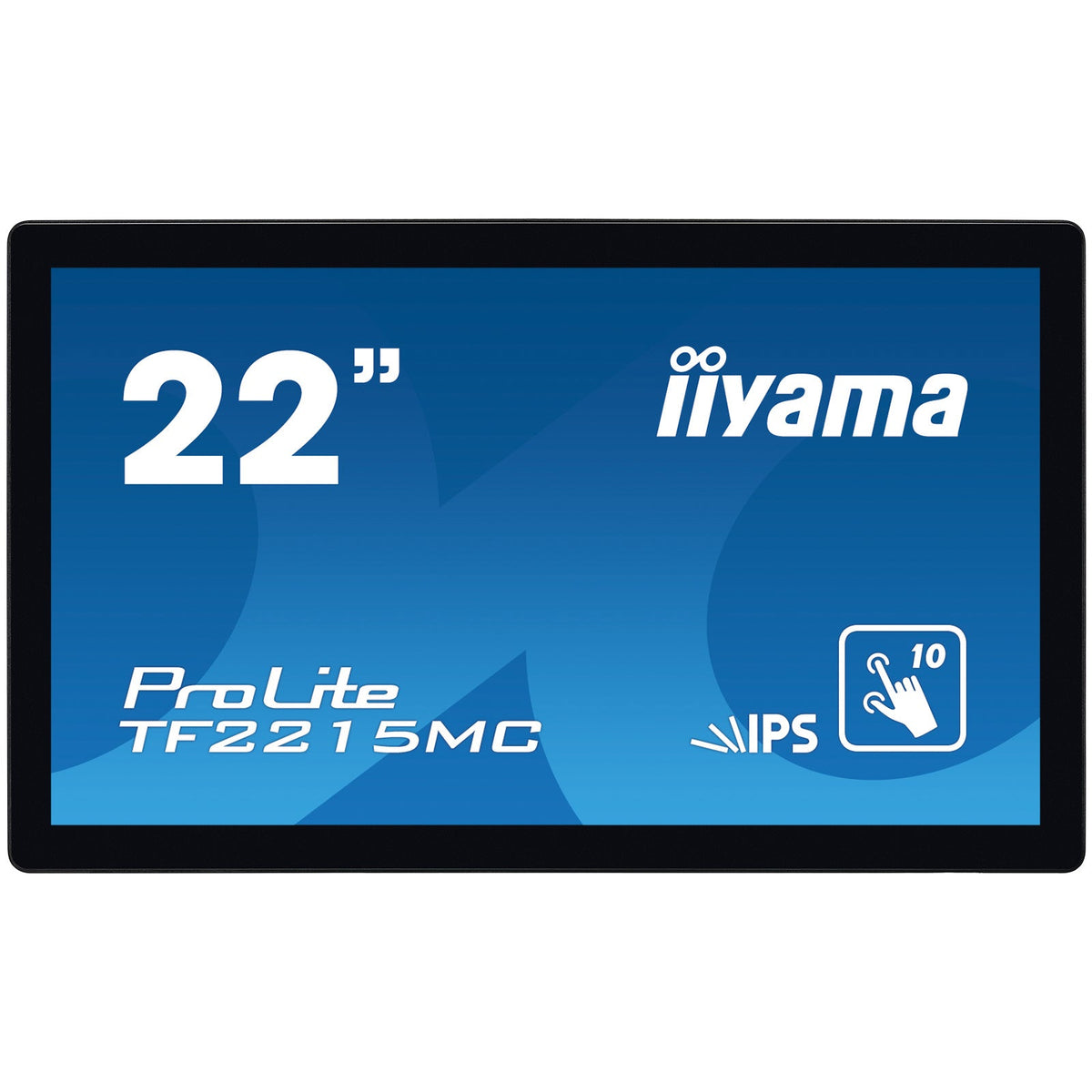

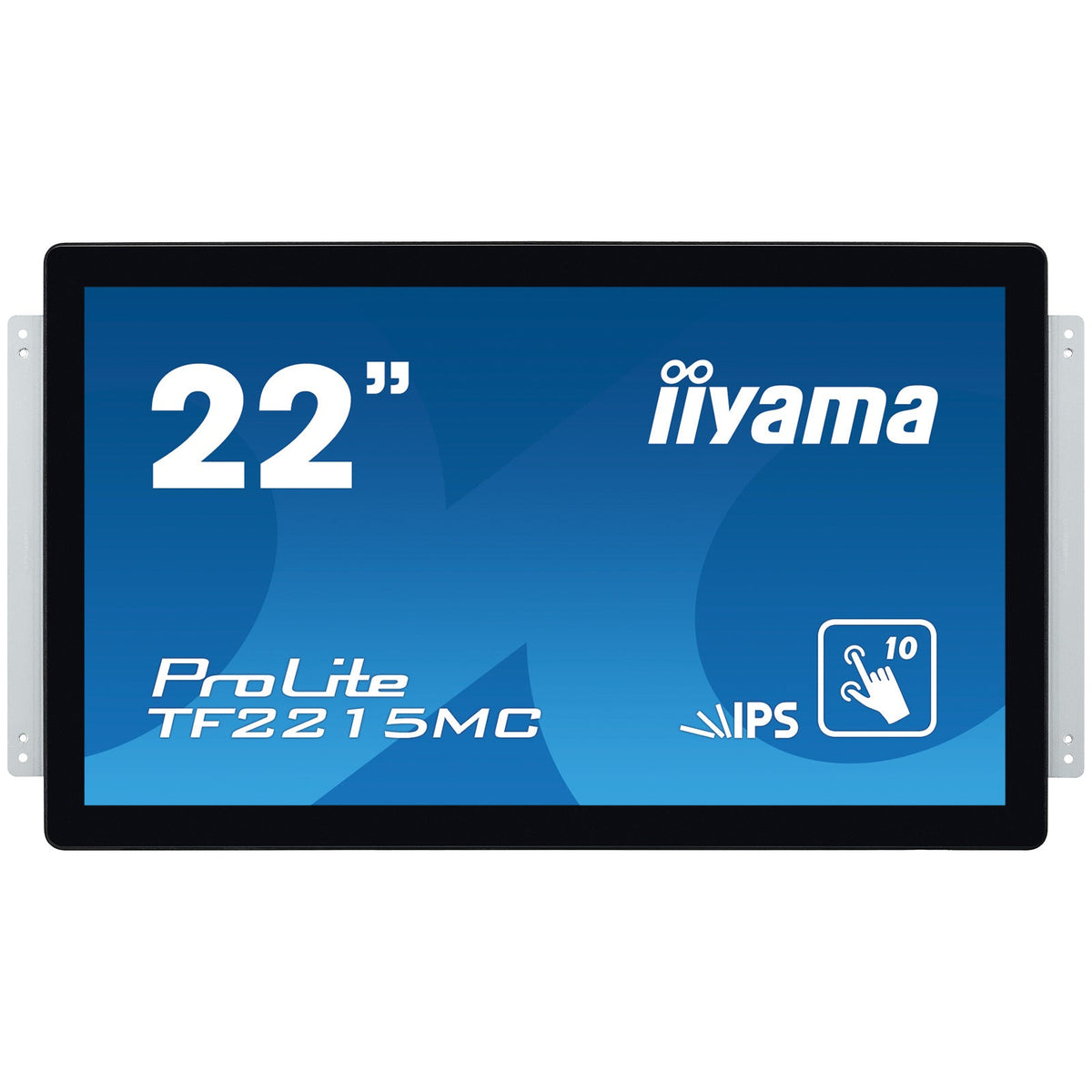

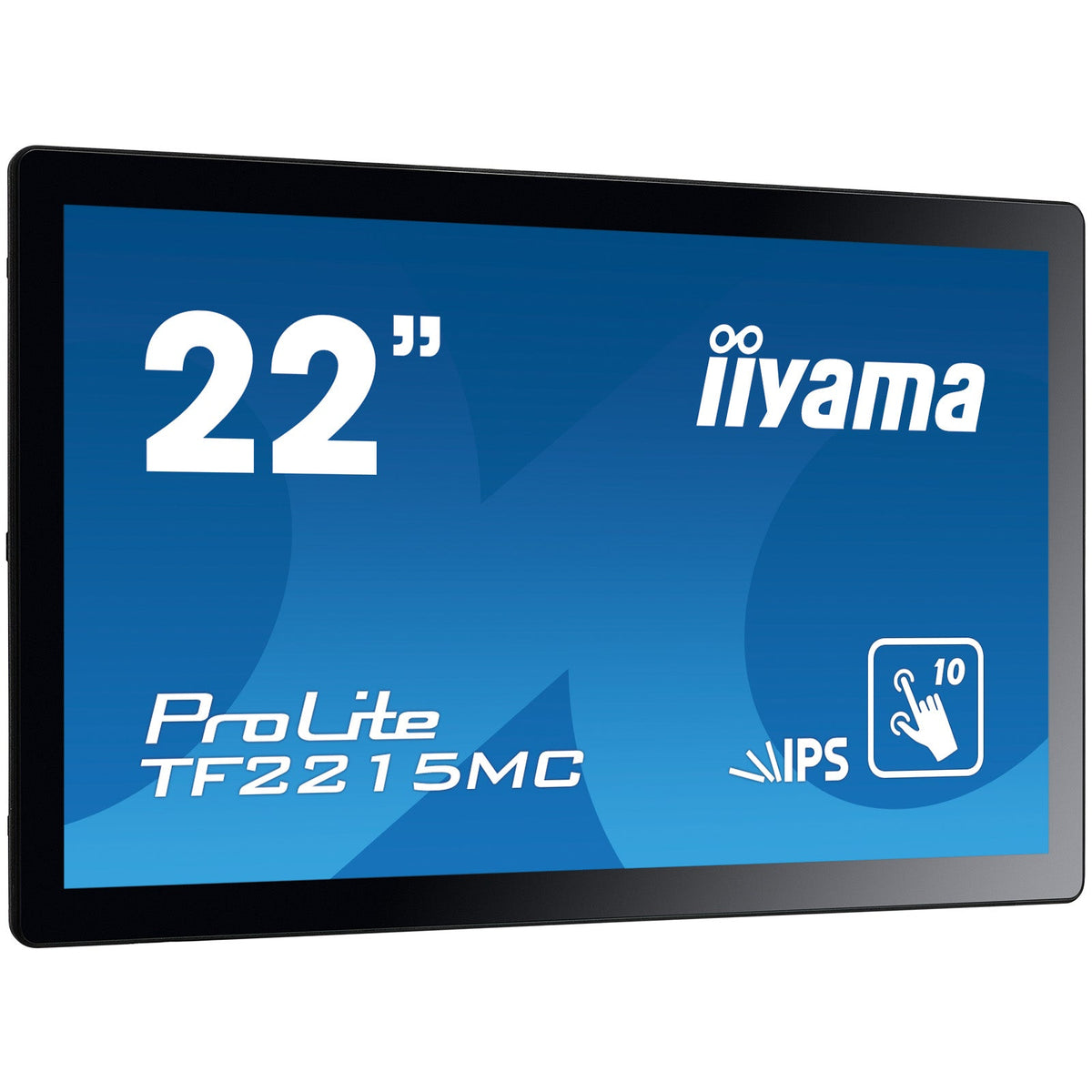

iiyama ProLite TF2215MC-B2 21.5" Open-Frame Touch Monitor, PCAP 10-touch, FHD, Control Pad (TF2215MC-B2)
Regular price
525,88 € +VAT
The iiyama ProLite TF2215MC-B2 is a 21.5" open-frame touch monitor with projected-capacitive (PCAP) 10-point touch, built for integration into kiosks, ticket and vending machines, pick-up lockers and custom enclosures. Its Full HD IPS panel sits behind toughened glass with an IP65 sealed front, and the touch even works through an additional protective glass layer up to 6 mm thick. VGA, HDMI and DisplayPort inputs plus USB touch make it plug-and-play with Windows and Linux systems. This version, TF2215MC-B2, is the 21.5" Full HD model with an external OSD control pad. It ships with an external 12 V power adapter, USB/HDMI/DisplayPort cables and an external OSD control pad.
📦 What's in the box – TF2215MC-B2
- ProLite TF2215MC-B2 21.5" display – Full HD IPS panel, PCAP 10-point touch
- External AC adapter – 12 V DC power adapter with power cable
- Cables – USB, HDMI and DisplayPort
- External control pad – OSD controls that can be placed where service staff can reach them
- Documentation – quick start guide and safety guide
💡 To get started, you might also consider the matching iiyama bracket kit for side mounting, so the open-frame monitor fits neatly into your kiosk or machine front.
Key Features
- Projected-capacitive touch – 10-point HID multi-touch, driver-free under Windows and Linux, works through glass up to 6 mm
- IP65 sealed front – dust- and splash-proof once built into a kiosk or machine front
- Full HD IPS panel – 350 cd/m² (315 cd/m² with touch), contrast 1000:1, viewing angle 178°/178°
- Flexible integration – landscape, portrait or face-up installation, VESA 100×100 mm
- Universal connectivity – VGA ×1, HDMI ×1, DisplayPort ×1, touch via USB
- Toughened glass – 7H glass with anti-fingerprint coating, touch through glass up to 6 mm
- External control pad – OSD controls can be mounted away from the screen, out of customers' reach
Ideal Applications
- Self-service kiosks – ticketing, check-in and ordering terminals
- Vending & pick-up points – parcel lockers, vending and reverse-vending machines
- Industrial HMI – machine panels and control stations
- Wayfinding & information points – shopping centres, hospitals, transport hubs
- Gaming & amusement – cabinet integration with sealed touch front
Technical Specifications
| Part Number | TF2215MC-B2 |
|---|---|
| Model | iiyama ProLite TF2215MC-B2 |
| Screen Size | 21.5" (54.6 cm) |
| Panel Type | IPS |
| Resolution | 1920×1080 (FHD) |
| Aspect Ratio | 16:9 |
| Brightness | 350 cd/m² (315 cd/m² with touch) |
| Contrast (static) | 1000:1 |
| Response Time | 14 ms |
| Viewing Angle (H/V) | 178°/178° |
| Touch Technology / Touch Points | PCAP, 10 touch points |
| Glass / Surface | 7H glass with anti-fingerprint coating, touch through glass up to 6 mm |
| Inputs (video) | VGA ×1, HDMI ×1, DisplayPort ×1 |
| USB / other ports | USB (touch interface) |
| Control / Network | RJ45 monitor control input (external control pad) |
| Audio / Camera | Audio out (3.5 mm mini jack) |
| Orientation | Landscape, portrait, face-up |
| Mounting (VESA) | 100×100 mm |
| Power | External AC adapter (12 V DC); 20.8 W typical |
| Dimensions (W×H×D) | 520 × 315 × 42.5 mm |
| Weight | 4.4 kg |
| Colour | Black |
| Sealing (IP) | IP65 (front) |
| Operating Temperature | 0–40 °C |
| Certifications | CB, CE, cULus, RoHS, ErP, WEEE, REACH |
| Warranty | 36 months |
| In the Box | External 12 V power adapter; USB/HDMI/DisplayPort cables; External OSD control pad |
Versions in this open-frame line differ in screen size and resolution, touch points, glass finish (standard or anti-glare) and whether an external OSD control pad is supplied. Browse all models in our Monitors collection, and contact us for volume pricing, project quotes and availability.
Available Versions
| Part Number | Screen Size | Price | ||
|---|---|---|---|---|
 |
TF1015MC-B3 | 10.1" | 353,60 €+VATIn Stock | |
 |
TF1215MC-B1 | 12.1" | 455,17 €+VATOut of Stock | View |
 |
TF1515MC-B2 | 15" | 405,03 €+VATOut of Stock | View |
 |
TF1615MC-B1 | 15.6" | 465,45 €+VATIn Stock | |
 |
TF2215MC-B2Viewing | 21.5" | 525,88 €+VATOut of Stock | |
 |
TF2415MC-B2 | 23.8" | 577,32 €+VATIn Stock |
