Honeywell Thor VM1A Indoor Forklift Terminal (VM1A-L0N-1A1A20E)
Regular price
3.140,96 € +VAT

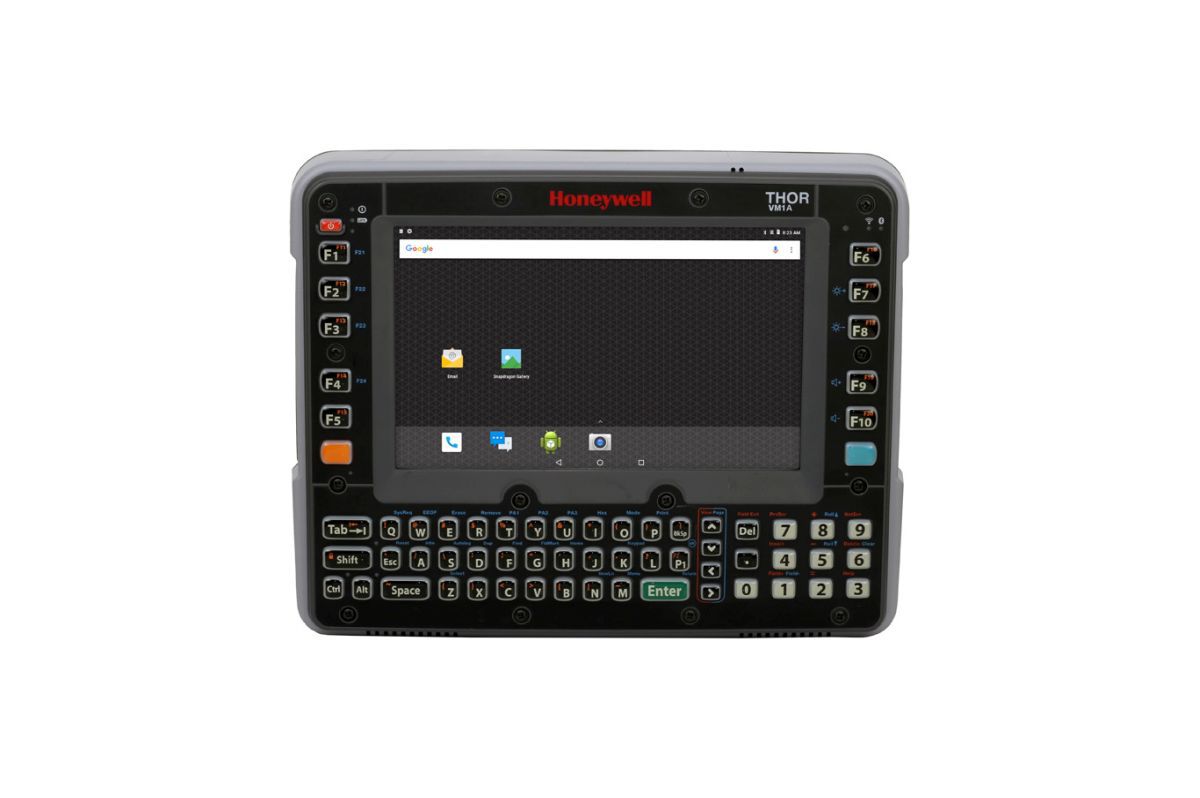

The Honeywell Thor VM1A is a compact, rugged Android vehicle-mounted computer for forklifts and other industrial vehicles in warehouses, manufacturing, ports and intermodal operations. It pairs an 8" WXGA touchscreen with a full integrated 64-key QWERTY keyboard, 2x2 MU-MIMO Wi-Fi 5, Bluetooth 5.0 and NFC, built on Honeywell's Mobility Edge platform with a Qualcomm Snapdragon 660 processor and IP66 sealing. Configuration of this version, VM1A-L0N-1A1A20E: indoor display (400 nits) with resistive touch; two internal Wi-Fi antennas; Android with Google Mobile Services (GMS).
📦 What's in the box – VM1A-L0N-1A1A20E
- ✅ Honeywell Thor VM1A – vehicle-mount computer, 8", indoor, 400 nits, resistive, 4 GB / 32 GB
- ✅ Integrated UPS battery – Li-ion maintenance UPS, fitted – keeps the computer running for about 30 minutes without vehicle power
- ✅ Integrated QWERTY keyboard – 64 backlit keys with number pad and function keys, fitted
- ✅ Internal Wi-Fi antennas – two antennas built in – no external antennas needed
- ✅ Google Mobile Services (GMS) – licensed and preinstalled – Google Play and Google apps ready to use
- ✅ Honeywell Software Client Pack – licence preinstalled – unlocks Honeywell's enterprise software tools
- ❌ Vehicle dock (Smart Dock) – NOT included – required – contains the isolated 10–60 V DC power supply and the I/O ports; see the options below
- ❌ Vehicle power cable – NOT included – supplied with the VM1001VMCRADLE and VM3001VMCRADLE docks
- ❌ Mounting bracket – NOT included – RAM mount kit or U-bracket – choose to suit your vehicle
- ❌ Power supply – NOT included – optional – only for AC mains operation, e.g. at a desk or in a workshop
⚠️ Please note: the Thor VM1A is supplied without vehicle dock, power cable and mount. To install and power it, please order separately: the Honeywell VM1001VMCRADLE standard dock (integrated 10–60 V DC power supply, DC power cable included) or the Honeywell VM3001VMCRADLE enhanced dock with extra USB ports and Ethernet; a RAM mount kit such as the Honeywell VM1002BRKTKIT (round base) or the Honeywell VM1005BRKTKIT (clamp base); optionally, for AC mains use, the Honeywell VM1302PWRSPLY power supply with the Honeywell VM1078CABLE adapter cable and a C13 power cord (e.g. Honeywell 77900507E, UK).
💡 Useful extras: the Honeywell 9000313PWRSPLY DC/DC converter for electric trucks with 50–150 V systems; a spare UPS battery (Honeywell VM1376BATTERY); the Honeywell VM1A540FRONTPNL spare front panel – replaces touchscreen and keyboard on site in minutes; the Honeywell VM1012BRACKET adapter bracket to reuse existing VC5090 mounts; a scanner holder for the vehicle (Honeywell VMHOLDER2K or Honeywell VMHOLDER4K); a Honeywell Edge Service Gold plan (SVCVM1A-SG3N (3 years) or SVCVM1A-SG5N (5 years)).
Key Features
- Compact 8" vehicle computer – 8" WXGA (1280 × 768) display in a compact 268 × 214 mm housing that keeps the driver's view clear.
- Indoor display with resistive touch – 400-nit LED-backlit screen with an industrial resistive touch panel for finger, glove and stylus input; optional screen blanking while driving.
- Integrated 64-key QWERTY keyboard – full backlit keyboard with number pad and 10/20 function keys; all keys except modifiers are remappable, with ANSI and 5250 emulation key labels.

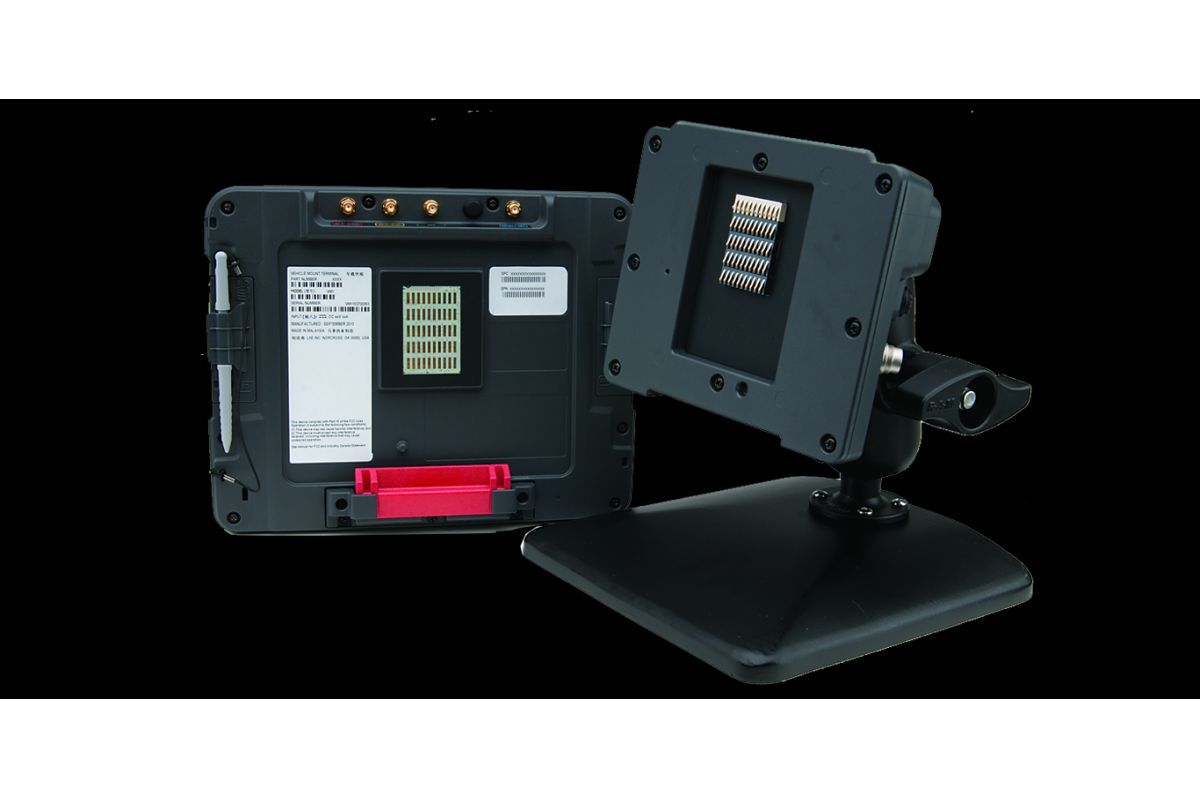

- Smart Dock – lift the computer off its dock in seconds without touching the cabling, so units can move between trucks when a vehicle fails or workloads change.
- Field-replaceable front panel – in-house staff can swap the touchscreen and keyboard on site; a low-cost spare panel replaces a spare computer.
- Mobility Edge platform – Qualcomm Snapdragon 660 octa-core 2.2 GHz, 4 GB RAM / 32 GB Flash, microSD up to 512 GB; Android 8 upgradable through Android 13 with extended security updates.
- Internal Wi-Fi antennas – two built-in antennas with 2x2 MU-MIMO Wi-Fi 5 (802.11ac), Bluetooth 5.0 and NFC; no external antennas to install.
- Built for forklifts – IP66 sealed, vibration-tested to MIL-STD-810F and shock-tested to SAE-J1455, −20 °C to +50 °C; isolated 10–60 V DC input via the dock and an integrated UPS battery for about 30 minutes without vehicle power.
- Ready for enterprise software – Honeywell Terminal Emulator, Enterprise Browser, Launcher and lockdown, provisioning tools and support for third-party MDM solutions.
Ideal Applications
- Forklifts, reach trucks and order pickers in warehouses and distribution centres
- Receiving, put-away, replenishment, cross-docking and shipping
- Cold storage and freezer warehouses (defroster version)
- Ports, intermodal terminals and outdoor yards (outdoor display versions)
- Manufacturing: line-side supply and material handling
- Migration from older Thor VM-series vehicle computers – the same docks, mounts and power accessories
All Thor VM1A Versions
The highlighted row is the version you are currently viewing.
| Part Number | Display | Touch | Wi-Fi Antennas | Operating System | |
|---|---|---|---|---|---|
| VM1A-L0N-1A1A20E (this version) | Indoor, 400 nits | Resistive | Internal | Android (GMS) | Viewing |
| VM1A-L0N-1A1B20E | Indoor, 400 nits | Resistive | Internal | Android (non-GMS) | View product |
| VM1A-L0N-1B1A20E | Indoor, 400 nits | Resistive | External (SMA) | Android (GMS) | View product |
| VM1A-L0N-1A2A20E | Cold storage, defroster | Resistive | Internal | Android (GMS) | View product |
| VM1A-L0N-1A2B20E | Cold storage, defroster | Resistive | Internal | Android (non-GMS) | View product |
| VM1A-L0N-1B2A20E | Cold storage, defroster | Resistive | External (SMA) | Android (GMS) | View product |
| VM1A-L0N-1A3A20E | Outdoor, 900 nits | Resistive | Internal | Android (GMS) | View product |
| VM1A-L0N-1B3A20E | Outdoor, 900 nits | Resistive | External (SMA) | Android (GMS) | View product |
| VM1A-L0N-1B3B20E | Outdoor, 900 nits | Resistive | External (SMA) | Android (non-GMS) | View product |
| VM1A-L0N-1A4A20E | Indoor, 400 nits | Capacitive (PCAP) | Internal | Android (GMS) | View product |
| VM1A-L0N-1A4B20E | Indoor, 400 nits | Capacitive (PCAP) | Internal | Android (non-GMS) | View product |
| VM1A-L0N-1B4A20E | Indoor, 400 nits | Capacitive (PCAP) | External (SMA) | Android (GMS) | View product |
| VM1A-L0N-1A6A20E | Outdoor, 900 nits | Capacitive (PCAP) | Internal | Android (GMS) | View product |
| VM1A-L0N-1B6A20E | Outdoor, 900 nits | Capacitive (PCAP) | External (SMA) | Android (GMS) | View product |
Technical Specifications
| Part Number | VM1A-L0N-1A1A20E |
|---|---|
| Model | Honeywell Thor VM1A vehicle-mounted computer (compact 8-inch model, Mobility Edge platform) |
| Operating System | Android 8 (Oreo) with Google Mobile Services (GMS); upgradable through Android 13, Android 14 committed subject to Qualcomm feasibility; extended security updates (Mobility Edge) |
| Processor | Qualcomm Snapdragon 660 octa-core, 2.2 GHz |
| Memory (RAM / Flash) | 4 GB RAM / 32 GB Flash |
| Expansion | User-accessible microSD slot, up to 512 GB (SDHC/SDXC) |
| Display | 8" WXGA (1280 × 768) LED backlit, indoor display, 400 nits; optional screen blanking while driving |
| Touch Panel | Industrial resistive touch panel – finger, glove and standard stylus; supports swipe |
| Keyboard | Integrated 64-key QWERTY keyboard with number pad and 10/20 function keys; all keys backlit; all keys except modifiers remappable; ANSI and 5250 emulation key labels |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac, 2x2 MU-MIMO, Wi-Fi Alliance certified; 802.11 d/e/h/i/k/r/w, 802.11v and 802.11mc; WPA/WPA2 (Personal and Enterprise); EAP-TLS, PEAP, TTLS, PWD, FAST, LEAP; CCX v4 |
| WLAN Antennas | Dual internal WLAN antennas |
| Bluetooth | Bluetooth 5.0 Class 1.5 + BLE; profiles HFP, PBAP, A2DP, AVRCP, OPP, SPP, GATT |
| NFC | Integrated NFC |
| Mobile Data (WWAN) | Not available – Wi-Fi only |
| Ports | Via the dock – Standard Dock (VM1001VMCRADLE): 2 × powered RS-232 COM, 1 × USB 2.0 powered host (Type A), 1 × USB 2.0 client, headset port, DC power input, ignition control input; Enhanced Dock (VM3001VMCRADLE): additionally 3 × powered USB 2.0 host and 1 × Ethernet RJ45 |
| Voice & Audio | Headset audio, integrated stereo speakers with adjustable volume, integrated microphone |
| Sensors | Ambient light sensor, accelerometer, gyroscope, magnetometer |
| Power Supply | 10–60 V DC isolated (power supply integrated in the dock); optional external converters for 90–240 V AC (VM1302PWRSPLY) and extended-range DC for high-voltage trucks (9000313PWRSPLY, up to 150 V DC) |
| Battery | Integrated Li-ion maintenance UPS – about 30 minutes of operation at 20 °C, charging range 0 °C to +35 °C; replacement battery VM1376BATTERY |
| Docking | Smart Dock – compatible with all Thor VM-series docks: VM1001VMCRADLE standard dock (integrated 10–60 V DC power supply, DC power cable included), VM1002VMCRADLE (with RAM ball, no power cable), VM3001VMCRADLE enhanced dock (extra USB + Ethernet); dock sold separately |
| Mounting | Dock mounts on RAM D-size ball mount kits (VM1001–VM1006BRKTKIT) or the Thor U-bracket kit (VM1010BRKTKIT); VM1012BRACKET adapter for existing VC5090 mounts |
| Software & Management | Honeywell Power Tools and Demos, Terminal Emulator, Enterprise Browser, Application Launcher and Lockdown, Provisioning Tools, Honeywell Mobility SDKs (Android, Web, Xamarin); third-party MDM support; Honeywell Software Client Pack licence |
| Dimensions | Computer: 268 × 214 × 43 mm; dock: 180 × 155 × 64 mm |
| Weight | Computer: 2.1 kg; dock: 1.2 kg |
| Sealing | IP66 (independently certified) |
| Vibration / Shock | Vibration: MIL-STD-810F, composite wheeled vehicles; shock: SAE-J1455; ESD: 8 kV direct / 15 kV air |
| Operating Temperature | −20 °C to +50 °C |
| Storage Temperature | −30 °C to +50 °C |
| Humidity | 5–95% non-condensing |
| Colour | Black |
| Warranty | 12 months (Honeywell one-year factory warranty); Honeywell Edge Service plans available |
| In the Box | Honeywell Thor VM1A vehicle-mounted computer (VM1A-L0N-1A1A20E), integrated Li-ion maintenance UPS battery (fitted), integrated 64-key QWERTY keyboard, internal Wi-Fi antennas, Google Mobile Services (GMS) licence preinstalled, Honeywell Software Client Pack licence – vehicle dock with power supply and DC power cable (e.g. VM1001VMCRADLE), mounting kit and AC power supply NOT included (order separately) |
The Thor VM1A is the Android successor to the popular Thor VM1 and uses the same VM-series docks, mounts and power accessories. Need a bigger screen? The Honeywell Thor VM3A (VM3A-L0N-1A1A20E) offers a 12.1" display on the same platform and docks. Compare all models in our Vehicle-Mount Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
Available Versions
VM1A-L0N-1A1A20E
Selected
Operating System
Android (GMS)
Display
Indoor 400 nits – resistive
Vehicle terminal, 20.3 cm (8''), Touchscreen, resistive, keypad (QWERTY, 64 keys, backlight), brightness: 400cd, Bluetooth, Wi-Fi (802.11ac, internal antenna), NFC, Micro SD-Slot, 1280x768 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP66, MIL-STD 810F, incl.: Google Mobile Services, battery
3.140,96 €Out of Stock
VM1A-L0N-1A1B20E
Operating System
Android (non-GMS)
Display
Indoor 400 nits – resistive
Vehicle terminal, 20.3 cm (8''), Touchscreen, resistive, keypad (QWERTY, 64 keys, backlight), brightness: 400cd, Bluetooth, Wi-Fi (802.11ac, internal antenna), NFC, Micro SD-Slot, 1280x768 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP66, MIL-STD 810F, incl.: battery
VM1A-L0N-1A2A20E
Operating System
Android (GMS)
Display
Cold storage – resistive with defroster
Vehicle terminal, 20.3 cm (8''), Touchscreen, resistive, keypad (QWERTY, 64 keys, backlight), brightness: 400cd, Bluetooth, Wi-Fi (802.11ac, internal antenna), NFC, Micro SD-Slot, 1280x768 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP66, MIL-STD 810F, incl.: Google Mobile Services, battery
VM1A-L0N-1A2B20E
Operating System
Android (non-GMS)
Display
Cold storage – resistive with defroster
Vehicle terminal, 20.3 cm (8''), Touchscreen, resistive, keypad (QWERTY, 64 keys, backlight), brightness: 400cd, Bluetooth, Wi-Fi (802.11ac, internal antenna), NFC, Micro SD-Slot, 1280x768 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP66, MIL-STD 810F, incl.: battery
VM1A-L0N-1A3A20E
Operating System
Android (GMS)
Display
Outdoor 900 nits – resistive
Vehicle terminal, 20.3 cm (8''), Touchscreen, resistive, keypad (QWERTY, 64 keys, backlight), brightness: 900cd, Bluetooth, Wi-Fi (802.11ac, internal antenna), NFC, Micro SD-Slot, 1280x768 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP66, MIL-STD 810F, incl.: Google Mobile Services, battery
VM1A-L0N-1A4A20E
Operating System
Android (GMS)
Display
Indoor 400 nits – capacitive (PCAP)
Vehicle terminal, 20.3 cm (8''), Touchscreen, Projected Capacitive, keypad (QWERTY, 64 keys, backlight), brightness: 400cd, Bluetooth, Wi-Fi (802.11ac, internal antenna), NFC, Micro SD-Slot, 1280x768 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP66, MIL-STD 810F, incl.: battery
VM1A-L0N-1A4B20E
Operating System
Android (non-GMS)
Display
Indoor 400 nits – capacitive (PCAP)
Vehicle terminal, 20.3 cm (8''), Touchscreen, Projected Capacitive, keypad (QWERTY, 64 keys, backlight), brightness: 400cd, Bluetooth, Wi-Fi (802.11ac, internal antenna), NFC, Micro SD-Slot, 1280x768 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP66, MIL-STD 810F, incl.: battery
VM1A-L0N-1A6A20E
Operating System
Android (GMS)
Display
Outdoor 900 nits – capacitive (PCAP)
Vehicle terminal, 20.3 cm (8''), Touchscreen, capacitive, keypad (QWERTY, 64 keys, backlight), brightness: 900cd, Bluetooth, Wi-Fi (802.11ac, internal antenna), NFC, Micro SD-Slot, 1280x768 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP66, MIL-STD 810F, incl.: Google Mobile Services, battery
VM1A-L0N-1B1A20E
Operating System
Android (GMS)
Display
Indoor 400 nits – resistive
Vehicle terminal, 20.3 cm (8''), Touchscreen, resistive, keypad (QWERTY, 64 keys, backlight), brightness: 400cd, Bluetooth, Wi-Fi (802.11ac, external antenna), NFC, Micro SD-Slot, 1280x768 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP66, MIL-STD 810F, incl.: Google Mobile Services, battery
VM1A-L0N-1B2A20E
Operating System
Android (GMS)
Display
Cold storage – resistive with defroster
Vehicle terminal, 20.3 cm (8''), Touchscreen, resistive, keypad (QWERTY, 64 keys, backlight), brightness: 400cd, Bluetooth, Wi-Fi (802.11ac, external antenna), NFC, Micro SD-Slot, 1280x768 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP66, MIL-STD 810F, incl.: Google Mobile Services, battery
VM1A-L0N-1B3A20E
Operating System
Android (GMS)
Display
Outdoor 900 nits – resistive
Vehicle terminal, 20.3 cm (8''), Touchscreen, resistive, keypad (QWERTY, 64 keys, backlight), brightness: 900cd, Bluetooth, Wi-Fi (802.11ac, external antenna), NFC, Micro SD-Slot, 1280x768 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP66, MIL-STD 810F, incl.: Google Mobile Services, battery
VM1A-L0N-1B3B20E
Operating System
Android (non-GMS)
Display
Outdoor 900 nits – resistive
Vehicle terminal, 20.3 cm (8''), Touchscreen, resistive, keypad (QWERTY, 64 keys, backlight), brightness: 900cd, Bluetooth, Wi-Fi (802.11ac, external antenna), NFC, Micro SD-Slot, 1280x768 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP66, MIL-STD 810F, incl.: battery
VM1A-L0N-1B4A20E
Operating System
Android (GMS)
Display
Indoor 400 nits – capacitive (PCAP)
Vehicle terminal, 20.3 cm (8''), Touchscreen, Projected Capacitive, keypad (QWERTY, 64 keys, backlight), brightness: 400cd, Bluetooth, Wi-Fi (802.11ac, external antenna), NFC, Micro SD-Slot, 1280x768 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP66, MIL-STD 810F, incl.: battery
VM1A-L0N-1B6A20E
Operating System
Android (GMS)
Display
Outdoor 900 nits – capacitive (PCAP)
Vehicle terminal, 20.3 cm (8''), Touchscreen, Projected Capacitive, keypad (QWERTY, 64 keys, backlight), brightness: 900cd, Bluetooth, Wi-Fi (802.11ac, external antenna), NFC, Micro SD-Slot, 1280x768 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (8.1), IP66, MIL-STD 810F, incl.: Google Mobile Services, battery
