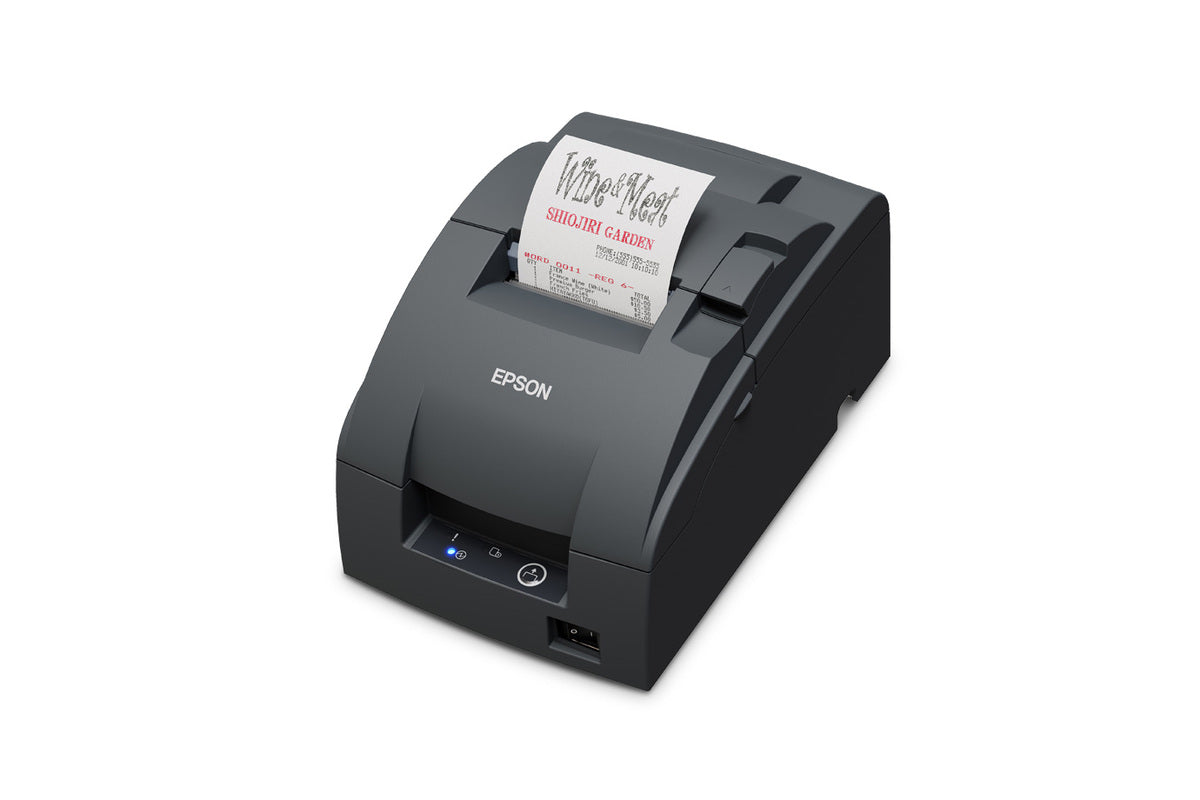

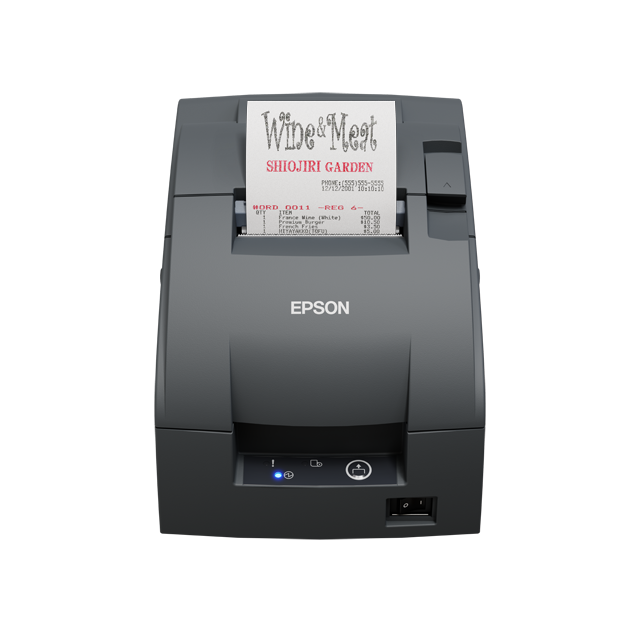

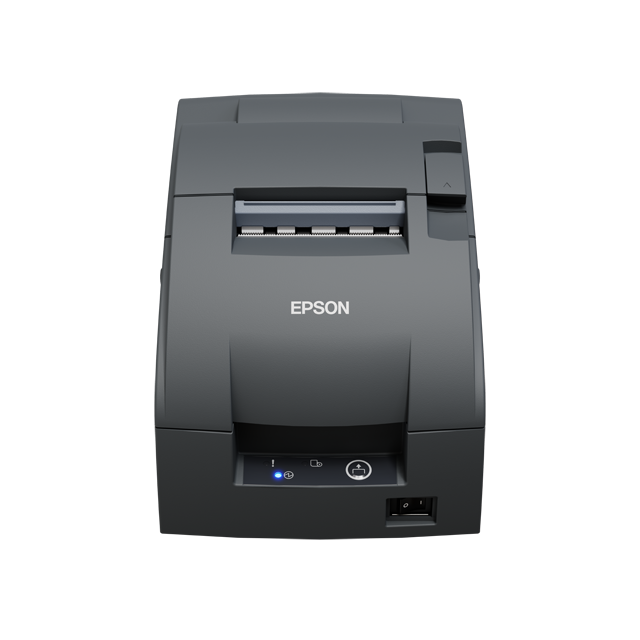

Epson TM-U220IID POS Receipt Printer (C31CL28102P0)

The Epson TM-U220IID is the compact tear-bar version of Epson's proven TM-U220II impact receipt printer – built for restaurant and bar kitchens, hotels, shops and service counters where heat, grease and moisture would ruin thermal receipts. Its 9-pin mechanism prints on plain paper rolls at up to 8.8 lines per second, supports black/red two-colour printing and takes 76, 69.5 or 57.5 mm paper with easy drop-in loading. This version, C31CL28102P0, has a parallel (IEEE 1284) interface and a factory-fitted paper near-end sensor; it ships with the Epson AC adapter, a ribbon cassette and a starter roll – the power cord and the interface cable are ordered separately.

Key Features

• Impact printing on plain paper – kitchen tickets and receipts stay legible near grills, ovens and fryers, and they do not fade like thermal paper.
• Two-colour printing – with the ERC-38BR black/red ribbon, allergens, extras or table numbers stand out in red.
• Parallel (IEEE 1284) interface – keeps existing POS systems with a parallel port running; the near-end sensor warns before the paper runs out.
• Fast for an impact printer – up to 8.8 lines per second (16 columns), 6.0 lps at 30 columns and 4.7 lps at 40 columns.
• Three paper widths – 76, 69.5 or 57.5 mm rolls up to 83 mm in diameter; drop-in paper loading and hassle-free ribbon replacement.
• Simple tear bar – no auto-cutter means fewer moving parts and a compact 160 × 248 mm footprint.
• Larger receive buffer (20 KB) – more orders can arrive at the same time without slowing the kitchen down.
• Copies on demand – one original plus one copy on 2-ply carbonless paper.
• Built to last – MTBF 180,000 hours, MCBF 18 million lines and a print head life of 150 million characters.
• Flexible installation and integration – wall-mountable with the WH-10 bracket, drawer kick-out for two cash drawers, ESC/POS with OPOS, JavaPOS and Epson APD drivers.

Ideal Applications

• Restaurant, bar and hotel kitchens – order tickets that survive heat, grease and steam
• Quick-service restaurants and cafés
• Retail checkouts and service counters
• Ticketing, queue management, banks and post offices
• Replacing older Epson TM-U220D or other impact printers on existing serial or parallel installations

All TM-U220IID Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Which version should you choose? Every TM-U220IID is a tear-bar impact printer with a near-end sensor and comes with the Epson AC adapter, a ribbon and a starter roll – the power cord and the interface cable are ordered separately. C31CL28102 and C31CL28102F0 have a serial (RS-232) port – the F0 kit is supplied with the ERC-38B black ribbon – while C31CL28102P0 has a parallel port. Compare other models in our Dot Matrix Printers collection or contact our team for volume pricing.
