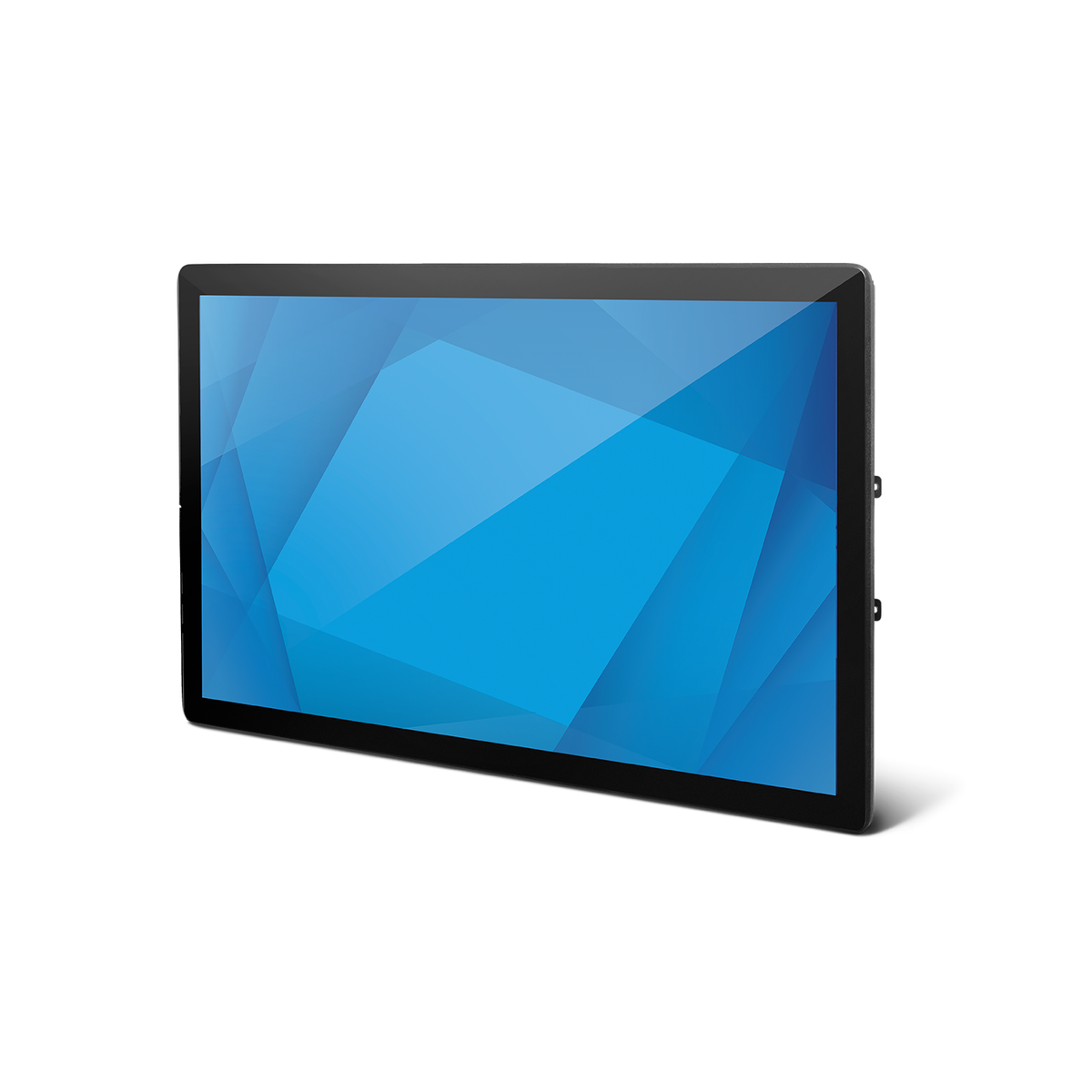

Elo 2495L 23.8" Open-Frame Touch Monitor, PCAP 10-touch, FHD, 600 cd/m² (E506980)

The Elo 2495L is a 23.8" open-frame touch monitor from Elo's 90 Series, designed to be built into kiosks, machines, gaming cabinets and self-service terminals. A high-brightness 600 cd/m² 23.8" Full HD panel keeps content vivid in bright environments and behind shop windows. It pairs a 23.8" 16:9 LCD panel (FHD, 1920 × 1080) with Elo TouchPro projected-capacitive touch with 10 touch points that also works through protective glass up to 6 mm thick. HDMI, VGA and DisplayPort inputs and a compact metal chassis with VESA 200 × 100 mm mounting make integration easy, backed by a 3-year Elo warranty. This version, E506980, has TouchPro PCAP touch and a flush glass front with flush-mount brackets; HDMI, VGA and touch USB cables, a remote OSD keypad and mounting brackets are included, while the 12 V power supply is ordered separately.

Key Features

• TouchPro PCAP, 10 touch points – multi-touch gestures, touch-through up to 6 mm protective glass and an easy-to-clean glass surface
• FHD 23.8" display (16:9) – 600 cd/m² LCD panel, 1000:1 contrast, 14 ms response time
• High-brightness panel – 600 cd/m² keeps content clearly readable in brightly lit locations
• Three video inputs – HDMI, VGA and DisplayPort for easy connection to practically any PC, media player or Elo Backpack
• Built for integration – compact metal chassis, VESA 200 × 100 mm, mounting points on all four sides and flush-mount brackets for a seamless front
• Tamper-resistant controls – tethered remote OSD keypad with OSD and power lock-outs for public installations
• Sealed touchscreen – sealed to the bezel and the LCD to keep out dust and liquids
• Commercial-grade reliability – 50,000-hour MTBF and a 3-year Elo warranty, extendable to 4 or 5 years

Ideal Applications

• Self-service and self-ordering kiosks
• Ticketing, vending and parcel-locker terminals
• Industrial HMI and machine control panels
• Gaming, lottery and amusement machines
• Interactive digital signage and wayfinding

Technical Specifications

Choosing the right version: The Elo 90 Series covers 10.1" to 27" in classic 4:3 / 5:4 and widescreen 16:9 formats. Choose TouchPro PCAP for multi-touch and a flush glass front, IntelliTouch for a pure glass surface with single touch, or AccuTouch resistive for operation with gloves and stylus; high-brightness and outdoor models are available for bright locations. Browse all Monitors to compare sizes and touch technologies, or contact us for volume pricing, project quotes and integration advice.
