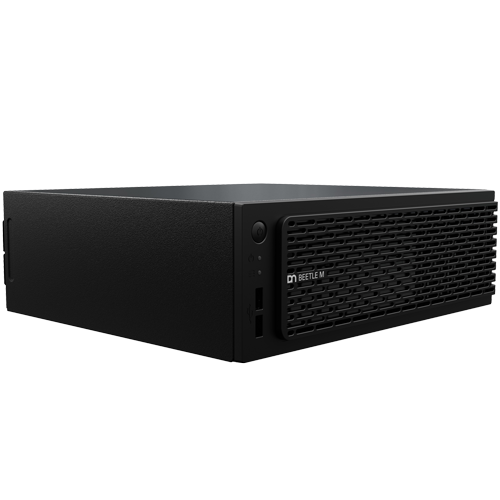

Diebold Nixdorf BEETLE M2110 POS PC, Core 5-120UL, 8 GB / 128 GB, No OS (CRBAS-BLA-JT43)

The Diebold Nixdorf DN Series BEETLE M2110 is a modular, compact POS PC for staffed checkouts, self-checkouts, kiosks and store back offices. Built on Intel Alder Lake PS / Raptor Lake PS embedded processors with DDR5 memory and M.2 NVMe storage, it drives up to three displays and powers scanners, printers and displays directly through PoweredUSB and USB-C, while its 80PLUS Gold power supply keeps energy costs low. This version, CRBAS-BLA-JT43, is equipped with the Intel Core 5-120UL (Raptor Lake PS), 1.3 GHz processor (15 W class), 8 GB DDR5 RAM and a 128 GB SSD, and is supplied without an operating system – ideal when you deploy your own Windows IoT or Linux image, or order a Windows licence with factory installation. The power supply unit and power cable are included; monitor and peripherals are ordered separately.

Key Features

• Modular, service-friendly design – "click & connect" architecture, intrusion sensor, lint filter and cable cover options for long life in retail
• Intel embedded performance – Alder Lake PS and Raptor Lake PS processors from 15 W (fanless-class) to 45 W, up to 64 GB DDR5
• Up to three displays – 2× USB-C with DisplayPort and 1× DisplayPort++ for operator, customer and advertising screens
• Powers your peripherals – 1× 24 V PoweredUSB and 3× 12 V PoweredUSB for printers, scanners and displays; optional 4 more 12 V PoweredUSB
• Rich connectivity – 4× USB-A 3.2, 2× USB-A 2.0, Gigabit LAN, RJ12 cash drawer, audio line in/out and mic; optional 2× RS232
• Fast, dual storage – 2× M.2 NVMe SSD slots for OS and data separation or RAID-like redundancy
• Energy-efficient and manageable – 80PLUS Gold power supply (≥87 % efficiency), TPM 2.0, BEETLEINFO remote management

Ideal Applications

• Staffed retail checkouts – the central PC for operator display, customer display, scanner, printer and cash drawer
• Self-checkout and kiosks – a compact, reliable controller hidden inside the terminal
• Store back office – an energy-efficient workstation for store management and reporting
• Hospitality and QSR – the POS server for kitchen, counter and drive-through displays
• Fuel and convenience – drives several screens and peripherals from one quiet box

Technical Specifications

Choose the 15 W Intel U300L or Core 5-120UL versions for quiet, energy-saving checkouts, or the 45 W Core 3-100HL, Core 5-120HL and Core i5 versions for multi-screen and self-checkout workloads; CRBAS-BLA-JT40 is the only version shipped with Windows 11 IoT Enterprise LTSC 2024. Compare all models in our POS PCs collection, and contact us for volume pricing and project quotes.
