Datalogic Magellan 9600i Counter Scanner (96101001000-000100)

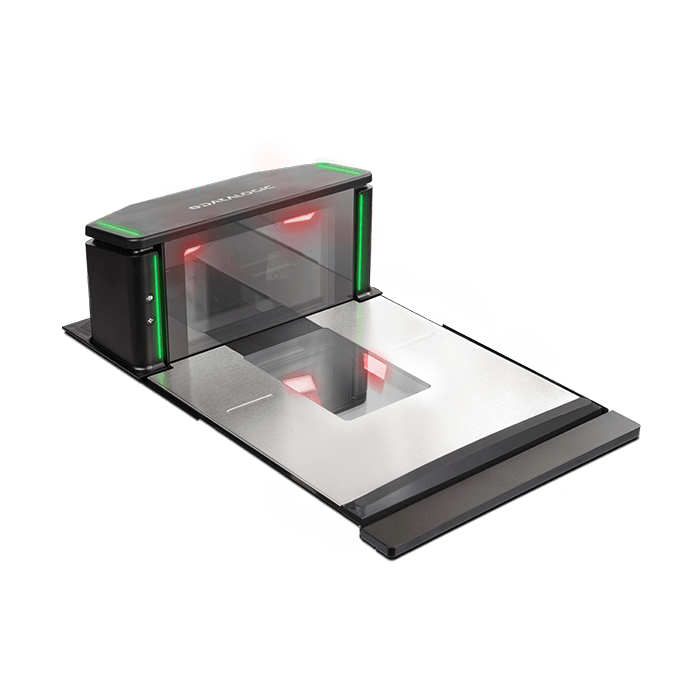

The Datalogic Magellan 9600i is a multi-plane (bi-optic) in-counter barcode scanner for high-throughput assisted and self-checkouts. Its QuadVision™ platform – a multi-core IMX8 processor with four cameras (two horizontal, two vertical) – captures several high-resolution images of every item and reads 1D, 2D, GS1 DataBar and Digimarc® codes in the largest scan volume in its class, even when they are damaged. ScanSentry™ item-movement detection, integrated EAS support and an embedded Linux platform make it ready for AI-based loss prevention. This version, 96101001000-000100, is the short scanner (35.2 cm) with shelf mount, supplied as the scanner only – interface cable and power supply are ordered separately.

Key Features

• QuadVision™ imaging – a multi-core IMX8 processor and four cameras (two horizontal, two vertical) capture several high-resolution images per scan, so even difficult and damaged 1D/2D barcodes, Digimarc® codes and GS1 Digital Link codes are read first time in the largest scan volume in its class.
• Loss prevention, AI-ready – ScanSentry™ detects items crossing the platter without a barcode read and alerts the POS; integrated EAS antenna support for Checkpoint and Nedap plus a Sensormatic deactivation controller; other factory configurations add a vertical color camera for AI workflows such as produce recognition.
• Tailored to every checkstand – three chassis lengths, shelf or flange mounting (conversion kits available) and a 13.4 cm / 5.3 in tower; capacitive touch buttons and smooth surfaces make the above-counter area easy to clean and sanitise.
• Connected checkout – multi-interface RS-232 and OEM (IBM) USB Plus Power, one Ethernet port as standard, two powered USB Type A host ports, powered RS-232, remote scale display and EAS controller ports; optional customer-facing reader for phones and coupons.
• Open, manageable platform – embedded Linux; works with Windows 10, Linux and Android POS systems; OPOS/JavaPOS utilities, free Aladdin configuration software, Magellan SDKs and remote management (WMI, MBeans, IBM Director, Wavelink Avalanche); 1-year factory warranty.

Ideal Applications

• Supermarket and grocery checkout lanes (installed in the counter)
• Self-checkouts and assisted checkouts
• Hypermarkets and other high-volume retail checkouts
• Loss-prevention projects with ScanSentry and AI-based item recognition
• Reading mobile coupons, loyalty cards and GS1 Digital Link codes

All Magellan 9600i Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? All Magellan 9600i versions share the same QuadVision imaging engine. First choose the size – the short scanner (96101001000…) or the medium flush-top scanner (96116001000…) – then the kit: scanner only, with the EU power supply and an RS-232 cable for Wincor Nixdorf BEETLE POS systems, or with the EU power supply and an OEM (IBM) USB POT cable for IBM/Toshiba terminals. Prefer a low 6.8 cm tower? See the Magellan 9900i. Need an integrated weighing scale? Ask us about the Magellan 9600i scanner/scale models. Compare other models in our In-Counter Barcode Scanners collection or contact our team for volume pricing.
