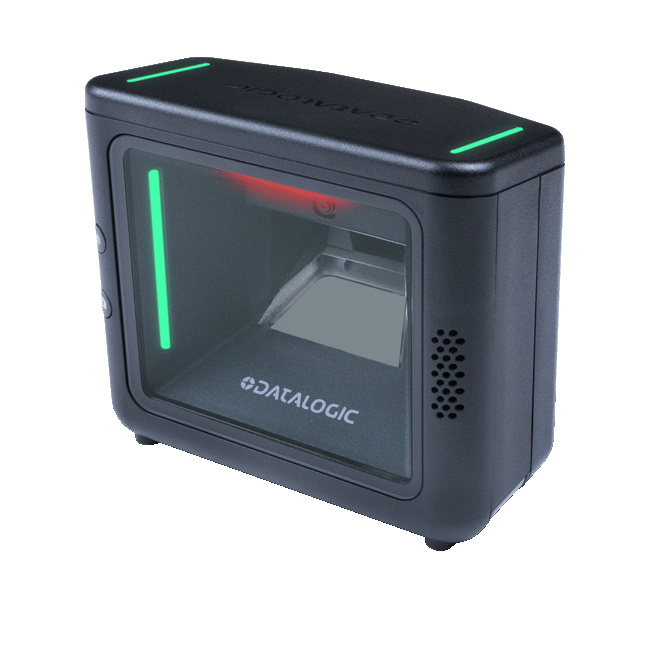

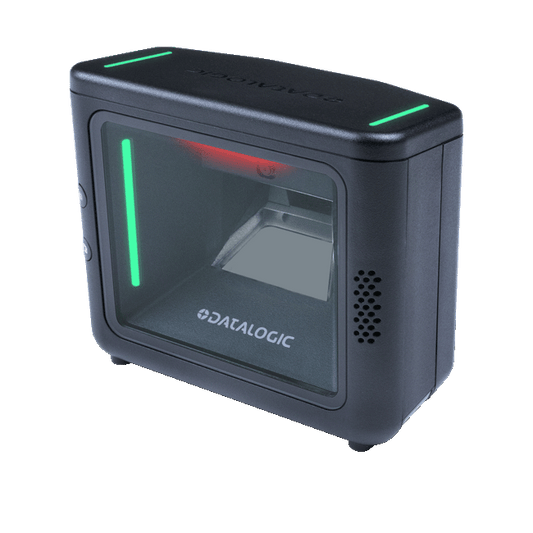

Datalogic Magellan 3670 VSi Presentation Scanner (M3670-010200)

The Datalogic Magellan 3600VSi is a next-generation vertical on-counter presentation scanner for attended checkouts, self-checkouts and kiosks. Its single-plane digital imager reads 1D and 2D barcodes – including GS1 Digital Link, Digimarc and composite codes – on printed labels as well as on phone screens, with high motion tolerance and 25% faster 2D throughput than the previous generation. The compact vertical design fits even tight counters, the soft adaptive illumination is easy on the eyes, and it comes with a 3-year Datalogic warranty. The Magellan 3670VSi is the top model of the series: in addition to color image capture, the AUX port and USB-C power delivery it has a built-in 1 MP color video camera for loss prevention and item recognition. This version, M3670-010200, is supplied as the scanner only – an interface cable, mount and power supply are not included.

Key Features

• Next-generation single-plane scanning – advanced digital imaging with a 1360 × 1120 global-shutter sensor reads 2D codes 25% faster than the previous generation and tolerates fast item movement; printed, mobile, damaged and hard-to-read codes are read with ease.
• Ready for the latest standards – reads all common 1D and 2D codes plus GS1 Digital Link, Digimarc digital watermarks, GS1 DataBar composite codes and OCR (e.g. ID data for age verification).
• 1 MP color video camera – a 1280 × 800 global-shutter camera (40 fps, USB Video Class) records security footage at the checkout or feeds external AI applications for loss prevention, ticket-switching detection and item recognition; plus color image capture, a powered AUX port, USB-C Power Delivery and UHF RFID support.
• Loss prevention built in – compatible with Checkpoint Systems EAS (integrated EAS hardware for Counterpoint IX and Evolve D11) and Sensormatic; a cable retention harness keeps the cable secure.

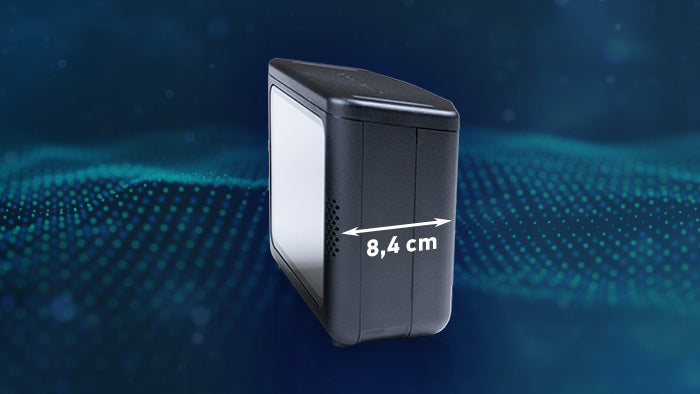

• Compact vertical design – fits tight counters and self-checkouts; subtle, adaptive illumination is comfortable for cashiers and shoppers, and solid-state electronics ensure silent, reliable operation.
• Multiple interfaces in every unit – USB Keyboard, USB COM, OEM (IBM) USB and RS-232, selected by the cable; OPOS, JavaPOS and Android SDK for Windows, Linux and Android; easy configuration with Datalogic Aladdin.
• IoT remote management – diagnostics, software upgrades and configuration remotely across the whole fleet.
• Green design – only 1.2 W nominal power consumption, 85% TÜV-certified recycled plastics and eco-friendly packaging.
• Reliable every day – IP52 sealing, 25 kV ESD protection and a 3-year Datalogic factory warranty; EASEOFCARE service plans are available.

Ideal Applications

• Retail checkouts – grocery, convenience, discount, specialty, hardware and fashion stores and pharmacies

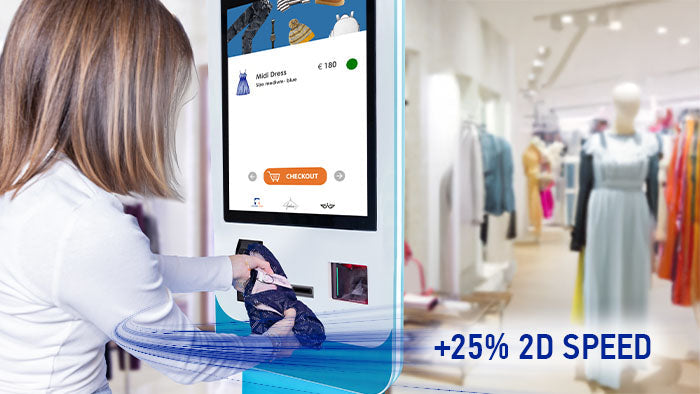

• Self-checkouts, kiosks and price verification
• Hospitality, ticketing and access control
• ID and age verification, loss prevention and EAS tag deactivation
• Mobile coupons, loyalty cards and GS1 Digital Link promotions

All Magellan 3600VSi Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? All Magellan 3600VSi versions share the same fast single-plane 2D imager. The 3610VSi is the standard model, the 3650VSi adds color image capture, a powered AUX port and USB-C power delivery, and the 3670VSi also adds a color video camera. Versions supplied as the scanner only need a cable (USB for PCs and modern POS systems, RS-232 with a power supply for serial terminals). Compare other models in our Presentation Barcode Scanners collection or contact our team for volume pricing.
