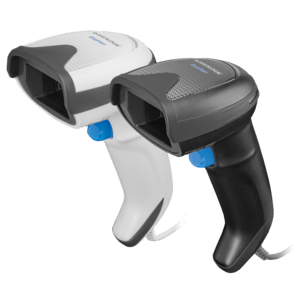

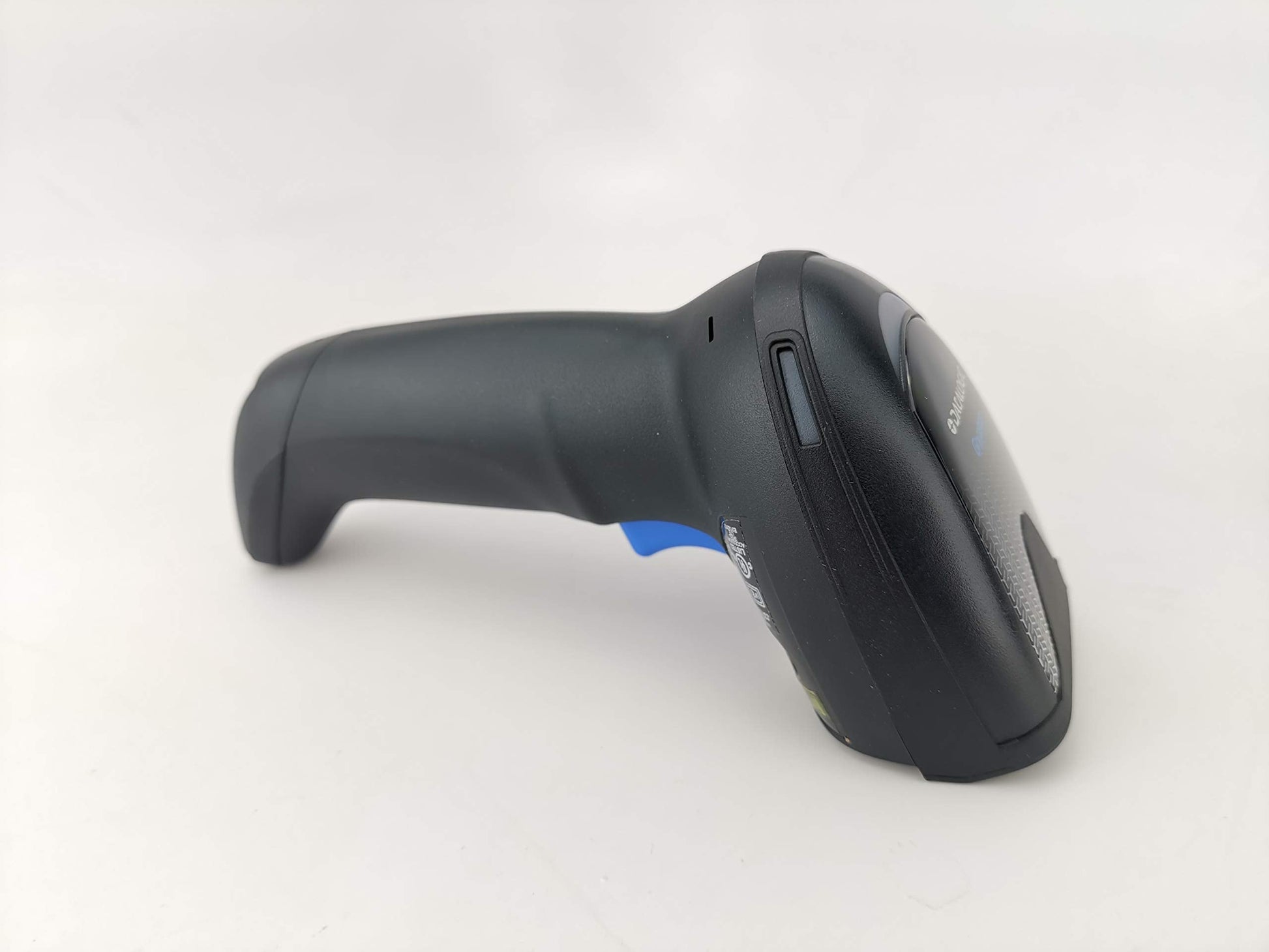

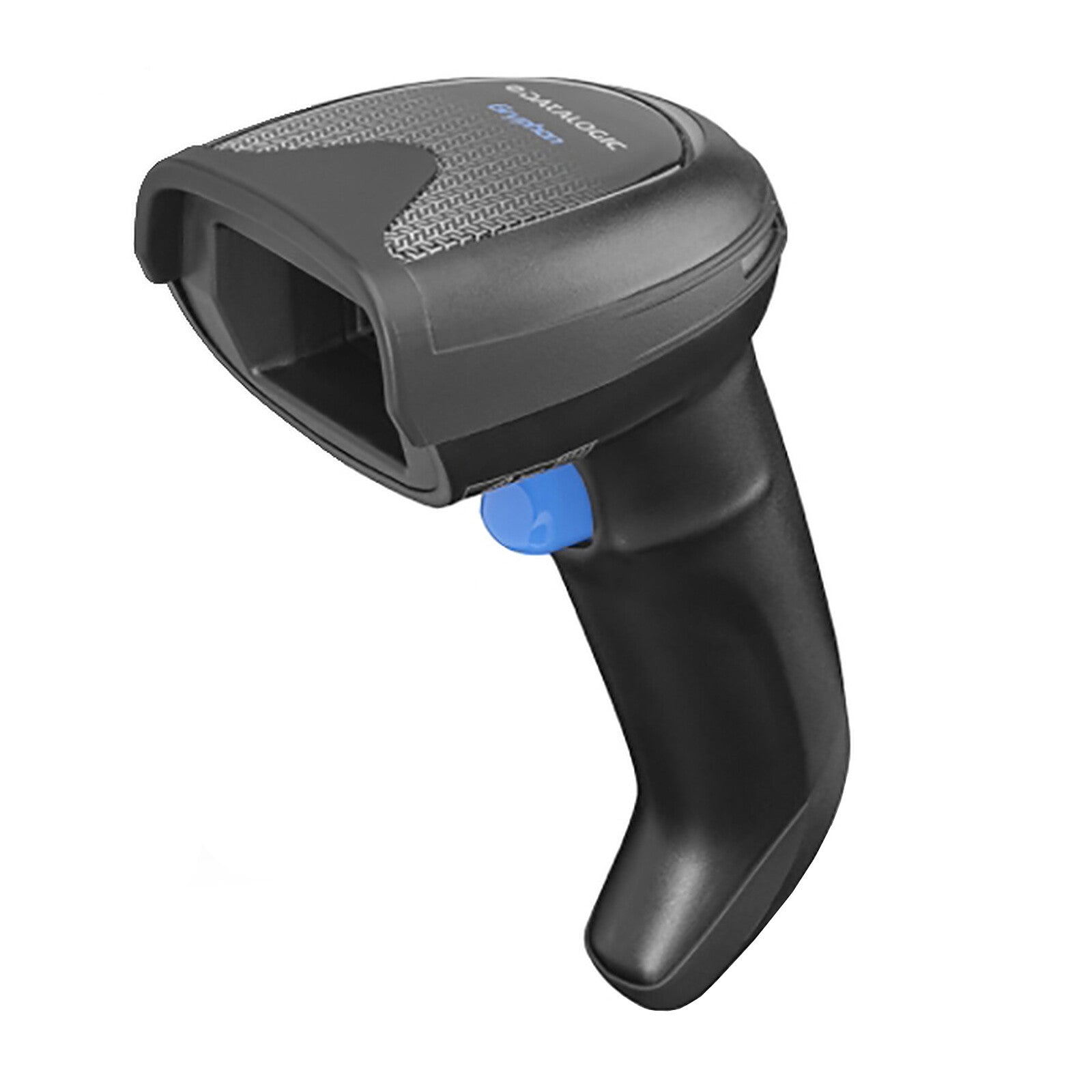

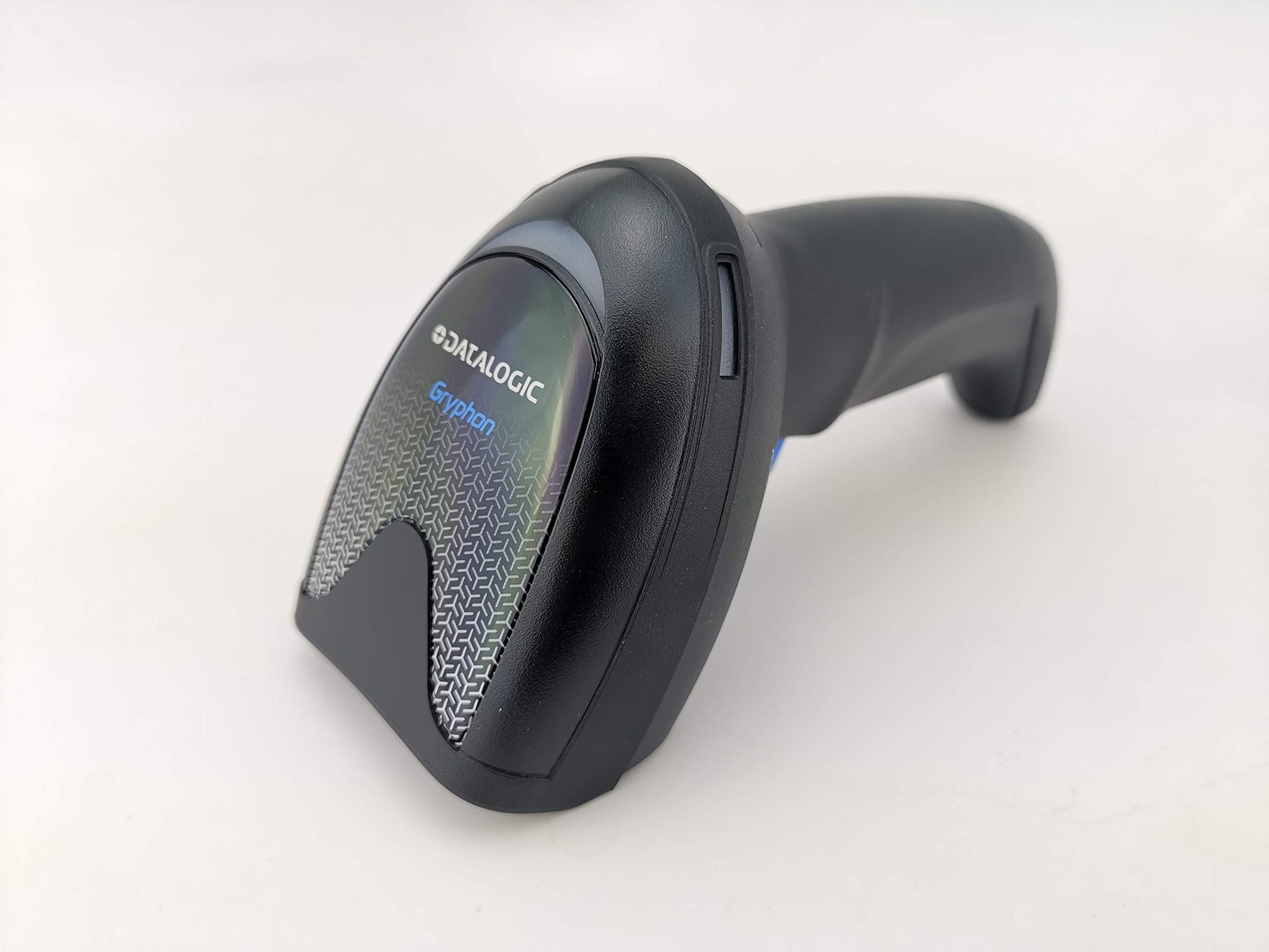

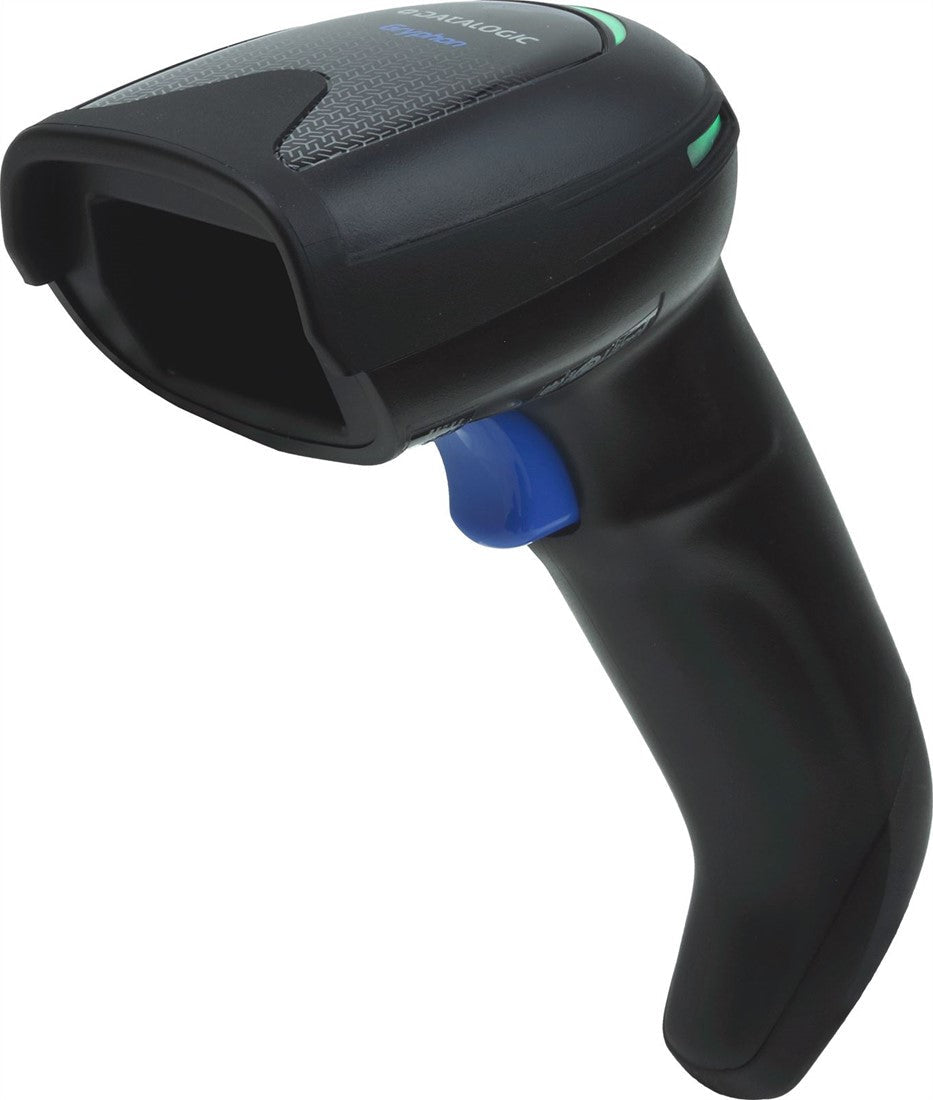

Datalogic Gryphon I GD4590 Barcode Scanner (GD4590-BK-B)

The Datalogic Gryphon I GD4500 series is Datalogic's premium range of corded 2D handheld imagers. The 1 MP sensor with white illumination and a 4-dot aimer reads 1D, 2D, postal and stacked codes – from paper labels and from phone screens – and every good read is confirmed by Datalogic's Green Spot and 3GL™ (Three Green Lights). The disinfectant-ready housing withstands daily cleaning, and every corded model is backed by a 5-year Datalogic warranty. This version, GD4590-BK-B, is the GD4590 multi-interface model (USB, USB-C, RS-232, keyboard wedge): it has Standard Range (SR) optics – the all-round choice for everyday barcodes, comes in black and is supplied mounted in an all-in-one fixed tilting stand for hands-free scanning – an interface cable is not included.

Key Features

• Reads 1D, 2D and postal codes – omnidirectional reading of linear, 2D, postal, stacked and composite codes plus Dot Code, from paper labels and from phone or tablet screens (mobile tickets, loyalty cards, e-coupons).
• 1 MP imager with white illumination – Datalogic's highly visible warm-white illumination and 4-dot aimer with centre cross make targeting easy, and improved motion tolerance (35 IPS) captures fast-moving codes.
• Standard Range (SR) optics – reads 13 mil EAN/UPC codes from 1 to 71 cm and resolves codes down to 4 mil – the best all-rounder for checkouts and service counters.
• All-in-one In-Stand design – the scanner is permanently mounted in a tilting stand, so codes are simply presented to it hands-free; the stand stays put even on busy counters.
• Green Spot and 3GL™ feedback – a green spot projected onto the code plus Three Green Lights confirm every good read, even in noisy environments.
• Motionix™ motion sensing – switches seamlessly between handheld and presentation reading modes.
• Image and document capture – capture images and documents as BMP, JPEG or TIFF files.
• Disinfectant-ready housing – withstands regular daily cleaning with the harsh disinfectant solutions commonly used in healthcare.
• Flexible connectivity – USB, USB-C, RS-232 and keyboard wedge multi-interface (4.5–14 VDC), depending on the cable; free Datalogic Aladdin configuration tool, OPOS/JavaPOS utilities and Remote Host Download.
• Built to last – withstands repeated 1.8 m drops to concrete, IP52 sealed, with a 5-year (60-month) Datalogic warranty.

Ideal Applications

• Retail point of sale – checkout, loyalty cards and mobile coupons
• Healthcare – laboratories, pharmacies and in-room patient care
• Light manufacturing – work-in-progress tracking and order processing
• Access control, transport and entertainment – ticketing and admissions
• Commercial services – post offices, banks, public administration and utilities

All Gryphon I GD4500 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? Choose the GD4520 if you connect via USB only – it is also available as a kit with a USB cable – or the GD4590 multi-interface model if you need RS-232 or keyboard wedge. Standard Range (SR) is the best all-rounder; pick High Density (HD) for very small codes, the Digimarc version (GD4590-BK-DGM) for Digimarc-enhanced packaging, an antimicrobial DRA kit for healthcare, and a fixed-stand version for a permanent hands-free counter. Scanner-only versions need a Datalogic interface cable – the Datalogic USB cable 90A052258 suits most setups. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
