| Dalies numeris | RS21C0-TS00ZWR |

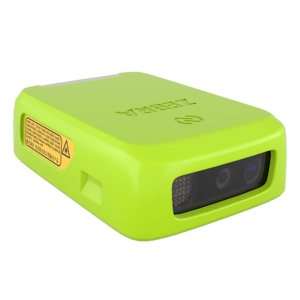

| Modelis | Zebra RS2100 (RS2100 series) |
| Skaitytuvo tipas | Bluetooth wearable back of hand scanner, 1D/2D area imager |
| Skenavimo modulis | SE4770 1D/2D standard range imaging engine with PRZM Intelligent Imaging |
| Vaizdo jutiklis | 1280 × 800 pixels |
| Matymo laukas | 48° H × 30° V |
| Skenavimo atstumas | 3 mil Code 39: 7.6–14.7 cm; 5 mil Code 128: 5.8–24.9 cm; 5 mil PDF417: 7.6–20.1 cm; 6.67 mil PDF417: 6.3–25.7 cm; 10 mil Data Matrix: 5.3–27.8 cm; 13 mil UPC-A (100%): 4.1–63.2 cm; 15 mil Code 128: 6.1–70.6 cm; 20 mil Code 39: 4.1–91.7 cm; 20 mil QR Code: 2.8–44.5 cm (typical) |
| Posvyris / pokrypis / pasukimas | Skew ±60° / pitch ±60° / roll 360° |
| Šviesos šaltinis | Aiming: 655 nm laser; illumination: 1 hyper red 660 nm LED |
| 1D simbolikos | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI, UPC/EAN, Interleaved 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D simbolikos | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, Data Matrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes |
| OCR | OCR-A, OCR-B |
| Belaidis ryšys | Bluetooth 4.0, Class 1 and 2, with Bluetooth Low Energy (BLE); profiles SPP, HID, SDAP; Wi-Fi Friendly Mode |
| Susiejimas | NFC tap-to-pair with NFC-enabled Zebra devices; Scan-to-Connect pairing barcode |
| Suderinami įrenginiai | Zebra handheld and wearable mobile computers (e.g. WT6300, TC2x, TC5x); Android and Apple iOS smartphones and tablets; PCs via Bluetooth (HID) or the Zebra Bluetooth adapter (up to 7 scanners per adapter) |
| Nešiojimo būdas | Back of hand mount with embedded trigger – palm-free, one size, right- or left-hand version (sold separately) |
| Akumuliatorius | 480 mAh Li-ion, embedded (not removable) – included |
| Indikatoriai | 2 RGB LEDs on the back; beeper up to 85 dBA at 10 cm; haptic vibration |
| Spalva | Green |
| Matmenys (A × P × G) | 14.6 × 35.5 × 52 mm |
| Svoris | 31 g |
| Maitinimas | 480 mAh embedded Li-ion battery; charged in the RS2100 2-slot (CRD-RS2X-2SCHG-01) or 20-slot (CRD-RS2X-20SCHG-01) charger |
| Apsaugos klasė | IP54 (IEC 60529) |
| Kritimai / vartymas | Multiple 1.8 m drops to concrete across the operating temperature range; 1,000 tumbles at 0.5 m |
| Elektrostatinė iškrova | ±15 kV air, ±8 kV contact discharge |
| Atsparumas aplinkos šviesai | Up to 107,639 lux (direct sunlight) |
| Darbinė temperatūra | 0 °C to 50 °C |
| Laikymo temperatūra | −40 °C to 60 °C |
| Drėgmė | 5–95% RH, non-condensing |
| Programinė įranga ir valdymas | 123Scan, Scan-to-Connect, Device Tracker (optional licence, Mobility DNA) |
| Garantija | 12 months |
| Pakuotės turinys | RS2100 wearable scanner (SE4770 1D/2D imager) with integrated 480 mAh Li-ion battery, regulatory guide – back of hand mount (SG-RS2X-HMTRA-01 right / SG-RS2X-HMTLA-01 left) and charger NOT included (order separately) |
