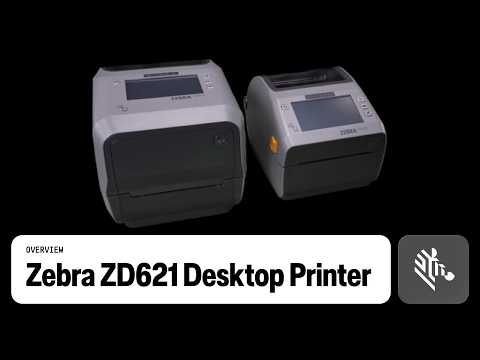

Zebra ZD621-HC Desktop Label Printer (ZD6AH43-30ER02EZ)

The Zebra ZD621t-HC is the healthcare version of Zebra's premium 4-inch ZD621 desktop printer – the successor to the ZD620-HC, made for prescription, lab and specimen, blood and IV bag and patient record labels as well as patient ID wristbands. As a thermal transfer model with a dual-capacity ribbon holder it takes both 74 m and 300 m ribbons for durable, smudge-proof labels on paper and synthetic materials. It prints sharp 300 dpi labels up to 108 mm wide at up to 152 mm/s (6 ips), and the standard 4.3-inch colour touch display guides staff through setup, media loading and calibration. White, disinfectant-ready and UV-resistant plastics with a sealed button interface withstand constant cleaning, and the IEC 60601-1 certified power supply is approved for use in healthcare facilities. This version, ZD6AH43-30ER02EZ, adds the latest Wi-Fi 6 (802.11ax) + Bluetooth 5.3 radio to USB, USB Host, Ethernet and RS-232 serial for fast, secure wireless network and mobile printing; the power supply, EU and UK power cords and a USB cable are included, so it is ready to print as soon as you add labels and a ribbon.

Key Features

• Built for healthcare – white, disinfectant-ready plastics withstand frequent cleaning, the UV-resistant housing supports UV disinfection and the sealed buttons keep liquids out; the power supply is IEC 60601-1 certified.
• Dual-capacity ribbon holder – use economical 300 m Zebra ribbons (1:4 ribbon-to-media ratio) or compact 74 m ribbons; adapters for non-Zebra 300 m ribbons are included.
• 300 dpi (12 dots/mm) – crisp small text, 2D codes and tiny labels at up to 152 mm/s (6 ips)
• 4.3-inch colour touch display as standard – step-by-step setup wizards, media-loading and calibration guidance and troubleshooting animations, plus five status icons that show the printer state at a glance.
• Handles virtually any media – roll-fed or fanfold labels, tags and continuous receipt paper, plus patient wristbands from 15 mm to 118 mm wide, with a movable black-mark sensor and a multi-position gap sensor.
• Wi-Fi 6 + Bluetooth 5.3 – factory-installed 802.11ax radio for fast, stable wireless printing on busy hospital networks and Bluetooth for mobile devices, on top of Ethernet, serial, USB and USB Host.
• Fits into your existing fleet – supports ZPL II and EPL 2, emulates other printer languages with Print DNA Virtual Devices and runs your existing GK-series label formats unchanged.
• Secure and remotely manageable – Print DNA with PrintSecure and Printer Profile Manager Enterprise; 512 MB flash, 256 MB SDRAM, real-time clock and ENERGY STAR certification.
• Upgrade on site – field-installable cutter or label dispenser (peeler), an attached battery base with 2750 mAh battery and carrying case for printing at the bedside or on carts, and the ZKDU keyboard display for stand-alone use.

Ideal Applications

• Pharmacy – prescription and medication labels
• Laboratory – lab and specimen labels for sample tubes and containers
• Patient identification – patient ID wristbands and patient record labels
• Blood bank and wards – blood and IV bag labels
• Hospital administration and sterile services – asset, file and instrument tray labels

All ZD621-HC Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Which ZD621-HC should you choose? The ZD621d-HC (direct thermal) needs no ribbon and suits patient wristbands, specimen and short-life labels; the ZD621t-HC uses 74 m or 300 m ribbon rolls for durable labels on paper and synthetic media – for example lab labels that must survive freezers and solvents. 203 dpi suits most barcodes and labels, while 300 dpi gives crisper small text and tiny 2D codes on specimen tubes. Every version has Ethernet and serial; choose Wi-Fi 5 or Wi-Fi 6 to print wirelessly on the hospital network. Compare other models in our Desktop Label Printers collection or contact our team for volume pricing.
