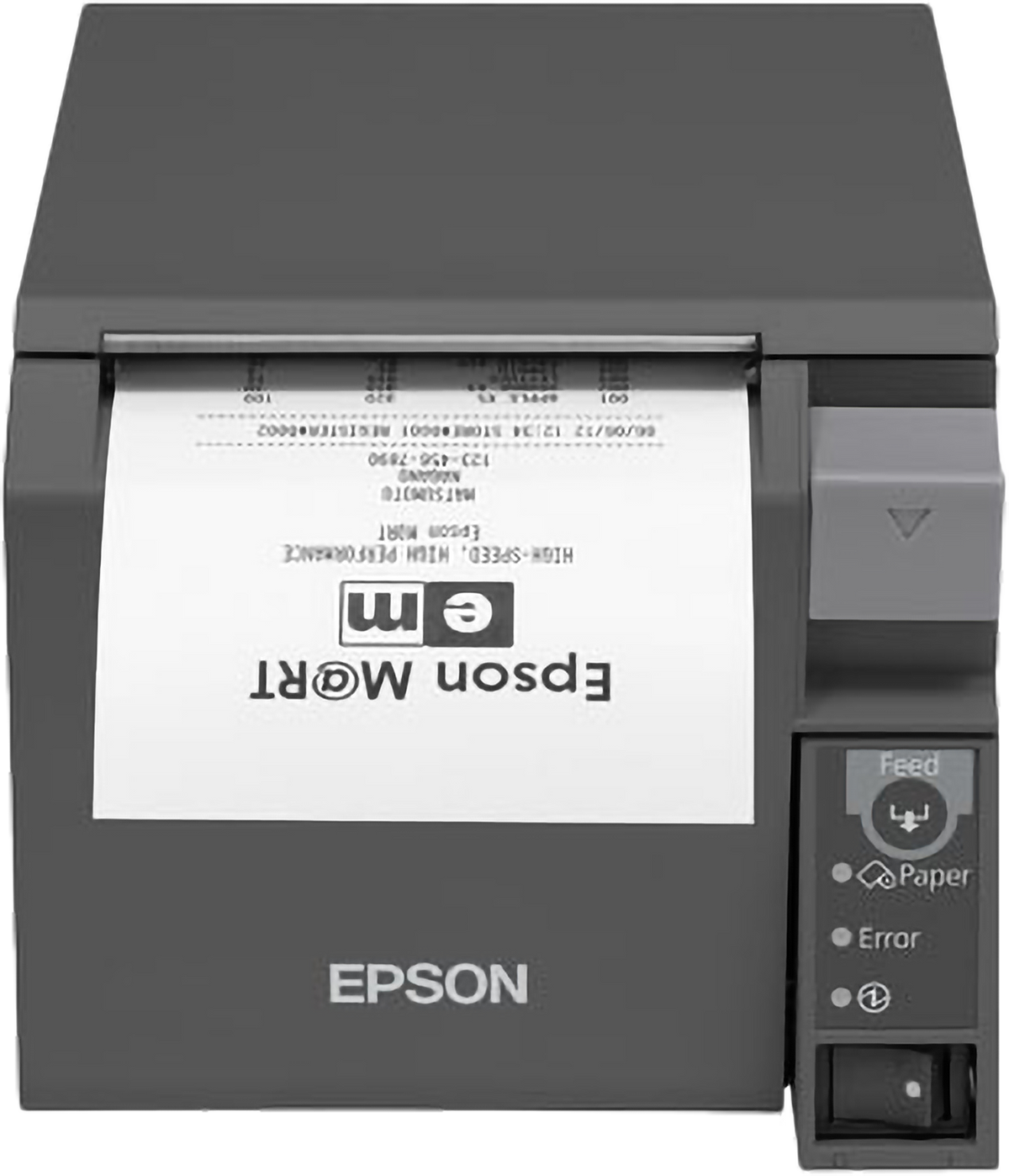

The Epson TM-T70II is a compact 80 mm thermal receipt printer with full front operation – paper loading, receipt exit and all buttons are at the front, so it fits under most counters (it is the same height as most cash drawers) and frees up valuable counter space. It prints sharp 180 dpi receipts, logos and barcodes at up to 250 mm/s, cuts them automatically and saves paper with near-margin-free printing – ideal for restaurants, bars, retail and hospitality. This version, C31CD38025C0, has a black housing and USB + Ethernet interfaces; it comes with an Epson power supply and a power cord with an EU (Schuko) plug – an interface cable is not included.

📦 What's in the box – C31CD38025C0

✅ Epson TM-T70II printer – black, built-in USB + Ethernet (UB-E04 interface board)
✅ Power supply – Epson PS-190, 24 V DC (earlier batches: PS-180)
✅ Power cord – EU plug (Schuko)
❌ Interface cable (USB / Ethernet) – NOT included
✅ Starter paper roll – 80 mm thermal paper to get you started
✅ Power switch cover – prevents the printer from being switched off by accident
✅ Setup guide
✅ Manuals CD – drivers, utilities and manuals (also a free download from Epson)

⚠️ Please note: no interface cable is included. The printer cannot be connected to your computer or POS system without one – please order a USB cable separately: the Bixolon USB-KAB-G USB cable (USB A to B) fits, as does any standard USB 2.0 A-to-B printer cable. For a network connection, use a standard RJ45 Ethernet patch cable (not included).

💡 Useful extras: 80 mm thermal paper rolls (Zebra Z-Perform 1000D 60, 80 mm (3013286) or Zebra Z-Perform 1000D 80, 80 mm (3012973)); the Epson OT-WL06 Wi-Fi dongle for wireless network printing; the Epson OT-BZ20 external buzzer – an audible alert for new orders in busy kitchens. The RJ12 drawer kick-out port opens a standard 24 V cash drawer automatically with every sale.

Key Features

Full front operation – paper loading, receipt exit, power switch and buttons are all at the front, so the printer can be operated even when it is built in under the counter.
Fits under the counter – a small footprint (125 × 194 mm) and the same height as most cash drawers (114 mm) free up valuable space on the counter.
Fast 250 mm/s printing – sharp 180 dpi receipts with logos, graphics and barcodes, including greyscale printing for high-quality images.
USB + Ethernet – connect a POS PC via USB or share the printer over the network; the UB-E04 Ethernet board supports Epson ePOS-Print for printing from tablets and web apps, and its USB port takes the optional OT-WL06 Wi-Fi dongle.
Paper-saving functions – print receipts and logos almost to the top edge and reduce paper use, which lowers running costs and is better for the environment.
Built for heavy use – MTBF of 360,000 hours, MCBF of 65 million lines, a print mechanism rated for 17 million lines, a 120 km print head life and an auto-cutter rated for 1.7 million cuts.
Cash drawer port and optional buzzer – the drawer kick-out port opens a cash drawer automatically; add the optional OT-BZ20 external buzzer to alert staff to new orders.
Easy drop-in paper loading – 80 mm thermal rolls up to 83 mm in diameter, loaded from the front in seconds.
Broad software support – ESC/POS command set with APD (Windows), OPOS, JavaPOS and CUPS (Linux) drivers; works with virtually all POS software, including Loyverse.

Ideal Applications

Restaurants, bars, cafés and quick-service counters with little counter space
Kitchen order tickets – printers installed under the counter or in cabinets
Retail checkouts and convenience stores
Hotels, hospitality and service counters
Integrated POS desks and kiosks where the printer must be operated from the front

All TM-T70II Versions

The highlighted row is the version you are currently viewing.

Part Number	Interfaces	Color	Power Cord	Buzzer
C31CD38025C0 (this version)	USB + Ethernet	Black	EU (Schuko)	Optional (OT-BZ20)	Viewing
C31CD38022A1	USB + Ethernet	Dark grey	EU (Schuko)	Built-in	View product
C31CD38025A0	USB + RS-232	Black	EU (Schuko)	Optional (OT-BZ20)	View product
C31CD38032	USB + RS-232	Dark grey	EU (Schuko)	Optional (OT-BZ20)	View product
C31CD38032A0	USB + RS-232	Dark grey	UK	Optional (OT-BZ20)	View product

Technical Specifications

Part Number	C31CD38025C0
Model	Epson TM-T70II (25C0)
Printer Type	POS thermal receipt printer – front operation and front paper exit (under-counter)
Print Method	Direct thermal line printing (greyscale supported)
Resolution	180 × 180 dpi (7 dots/mm)
Print Speed	Max. 250 mm/s
Paper Width	80 mm (79.5 ± 0.5 mm)
Characters per Line	42 / 56 (Font A / Font B)
Roll Diameter	Max. 83 mm
Auto-cutter	Auto-cutter (partial cut); life 1,700,000 cuts
Interfaces	Built-in USB 2.0 (Type-B); Ethernet 10Base-T/100Base-TX (RJ45) on the exchangeable UB-E04 interface board, with a USB Type-A port for the optional Wi-Fi dongle
Wireless	Optional Wi-Fi: Epson OT-WL06 dual-band USB dongle (plugs into the UB-E04 board) or the UB-R05 wireless interface board
Drawer Kick-out	Yes – RJ12 drawer kick-out port (24 V, 2 drawers)
Buzzer	Not built in – optional Epson OT-BZ20 external buzzer (C32C890634)
Emulation / Command Set	ESC/POS; Epson ePOS-Print (via the UB-E04 Ethernet interface)
Fonts / Character Sets	Font A 12 × 24, Font B 9 × 17 dots; 95 alphanumeric, 18 international character sets, 128 × 43 graphic pages (incl. user-defined page)
Barcodes	1D: UPC-A, UPC-E, EAN-13, EAN-8, Code 39, Code 93, Code 128, ITF, Codabar, GS1-128, GS1 DataBar; 2D: PDF417, QR Code, MaxiCode, 2D GS1 DataBar, Composite Symbology
Drivers & Software	APD (Windows), OPOS, OPOS for .NET, JavaPOS, CUPS (Linux), TM Utility
Mobile Printing	iOS, Android and Windows over the network (Ethernet or optional Wi-Fi) via the Epson ePOS SDK / ePOS-Print
Data Buffer	Receive buffer 4 KB or 45 bytes (selectable)
Sensors	Paper end, paper near-end, roll paper cover open
Power Supply	Epson PS-190 AC adapter included (earlier batches PS-180), 24 VDC ± 7%; AC 100–240 V, 50/60 Hz
Power Consumption	Approx. 2.0 A (mean, printing); approx. 0.1 A standby
Dimensions (W × D × H)	125 × 194 × 114 mm
Weight	Approx. 1.7 kg (printer only)
Color	Black
Installation	Horizontal; front operation – fits under most counters (same height as most cash drawers)
Operating Temperature	5 °C to 45 °C
Storage Temperature	−10 °C to 50 °C
Humidity	10–90% RH (operation and storage)
Noise Level	Approx. 55 dB(A)
Reliability	MTBF 360,000 hours; MCBF 65,000,000 lines; print mechanism life 17,000,000 lines
Print Head Life	120 km
Certifications	CE, TÜV, ENERGY STAR
Warranty	24 months (carry-in)
In the Box	Epson TM-T70II printer (USB + Ethernet, black), Epson PS-190 power supply (earlier batches PS-180) with EU (Schuko) power cord, power switch cover, starter paper roll, setup guide, CD-ROM with drivers and manuals – interface cable (USB / Ethernet) NOT included (order separately)

Which version should you choose? Pick USB + Ethernet to share the printer over the network – 025C0 (black) or 022A1 (dark grey, with built-in buzzer) – or USB + serial (RS-232) for cash registers and older POS systems – 025A0 (black) or 032 (dark grey); 032A0 is the dark grey serial version with a UK power cord. All other versions come with an EU (Schuko) power cord. Compare other models in our POS Receipt Printers collection or contact our team for volume pricing.
