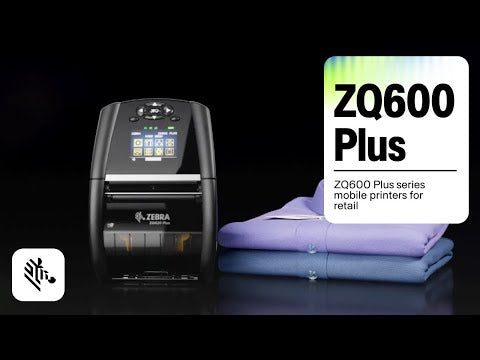

The Zebra ZQ620 Plus is a premium 3-inch mobile printer for labels and receipts – built for shelf-edge and markdown labels, mobile point of sale, click & collect, warehouse picking and shipping. It prints sharp 203 dpi direct thermal labels and receipts up to 72 mm wide at up to 115 mm/s, has a large colour display, IP54 sealing and 1.5 m drop protection, and is backward compatible with QLn accessories. This version, ZQ62-AUWAE14-00, has a Wi-Fi 5 (802.11ac) + Bluetooth 4.2 dual radio, USB, RS-232 and NFC tap-to-pair; it ships with a 3250 mAh battery, a belt clip and a shoulder strap – the charger is sold separately.
📦 What's in the box – ZQ62-AUWAE14-00
- ✅ Printer – Zebra ZQ620 Plus – Black, Wi-Fi 5 + BT 4.2 + USB + RS-232 + NFC
- ✅ Battery – 3250 mAh PowerPrecision+ Li-ion, removable (BTRY-MPP-34MA1-01)
- ✅ Belt clip – fitted to the printer
- ✅ Shoulder strap – for comfortable carrying over the shoulder
- ❌ AC adapter (charger) – NOT included
- ❌ USB cable – NOT included – not needed for Wi-Fi or Bluetooth printing
- ❌ Paper / label media – NOT included
- ✅ Setup guide – drivers, utilities and manuals are a free download from Zebra
⚠️ Please note: no charger is included. To charge the battery inside the printer, please order the Zebra P1031365-042 AC adapter (EU plug) or the Zebra P1031365-041 AC adapter (UK plug) separately. Spare batteries can also be charged in an external battery charger (see below).
💡 Useful extras: a spare battery (Zebra BTRY-MPP-34MA1-01 or Zebra BTRY-MPP-EXT1-01); an external battery charger (Zebra SAC-MPP-1BCHGEU1-01 (1-slot) or Zebra SAC-MPP-3BCHGEU1-01 (3-slot)); the Zebra P1031365-035 single Ethernet charging cradle or the Zebra P1031365-047 4-slot Ethernet cradle – charging plus wired remote management; the Zebra P1031365-029 soft case (shoulder strap included); the Zebra SG-MPP-Q4HLSTR1-01 waist holster; the Zebra P1031365-055 USB cable for a wired connection.
Key Features
- Wi-Fi 5 + Bluetooth 4.2 – dual-band 802.11ac and Bluetooth Classic + BLE run simultaneously, with WPA2/802.1x enterprise security, 802.11r fast roaming and instant wake-up.
- Labels, receipts and tags – 203 dpi barcodes, text and graphics up to 72 mm wide on die-cut labels, tags and receipt paper; rolls up to 66 mm on 19 mm or 34.9 mm cores.
- Large colour display – 288 × 240 pixel screen with colour alerts, 5-way navigation and two soft keys on the familiar Link-OS menu, so the printer status is clear at a glance.
- Power for the longest shift – removable 3250 mAh PowerPrecision+ battery with health metrics, an extended-capacity battery option and Power Smart Print Technology that saves 20–30% battery power.
- Business tough – over-moulding, tempered-glass display and a seamless one-piece design; multiple 1.5 m drops to concrete and IP54 dust and water resistance.
- Peel-and-present – the label present sensor issues labels one at a time; black-mark and gap sensing, tear bar and centre-loading clamshell for media from 25 mm to 79 mm.
- Backward compatible with QLn accessories – keep your batteries, chargers, cases and Ethernet cradles; the Ethernet cradle adds charging plus wired remote management.
- Zebra Print DNA and Link-OS – CPCL, EPL and ZPL, PrintSecure, Printer Profile Manager Enterprise and support for AirWatch, SOTI MobiControl and Ivanti Avalanche.
Ideal Applications
- Retail – shelf-edge, markdown and price labels, replacement tags, returns and mobile POS receipts
- Click & collect (BOPIS), queue-busting and merchandising
- Warehousing and manufacturing – pick-and-pack labels, raw materials, finished goods and cycle counts
- Transport and logistics – receiving, put-away, cross-docking, staging and shipping labels
- Field service and delivery – invoices, receipts and proof of delivery
All ZQ620 Plus Versions
The highlighted row is the version you are currently viewing.
| Part Number | Connectivity | Media Type | Battery | |
|---|---|---|---|---|
| ZQ62-AUXAE14-00 | Wi-Fi 6 + BT 5.3 | Standard | 3250 mAh | View product |
| ZQ62-AUWAE14-00 (this version) | Wi-Fi 5 + BT 4.2 | Standard | 3250 mAh | Viewing |
| ZQ62-AUFAE14-00 | Bluetooth 4.2 | Standard | 3250 mAh | View product |
| ZQ62-AUX2E14-00 | Wi-Fi 6 + BT 5.3 | Linerless | 3250 mAh | View product |
| ZQ62-AUWBE14-00 | Wi-Fi 5 + BT 4.2 | Linerless | 3250 mAh | View product |
| ZQ62-AUXAEC4-00 | Wi-Fi 6 + BT 5.3 | Standard | 6500 mAh | View product |
Technical Specifications
| Part Number | ZQ62-AUWAE14-00 |
|---|---|
| Model | Zebra ZQ620 Plus (ZQ600 Plus Series) |
| Printer Type | Mobile label and receipt printer, 3-inch |
| Print Method | Direct thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | Up to 115 mm/s (4.5 in/s) |
| Print Width | 72 mm (2.8 in) |
| Media Width | 25 mm to 79 mm (1.0–3.125 in) |
| Roll Diameter | Max. 66 mm (2.6 in) OD on 19 mm (0.75 in) or 34.9 mm (1.375 in) core |
| Paper Thickness | 0.058–0.140 mm tag stock or up to 0.165 mm label stock (2.3–5.5 mil tag, 6.5 mil label); label length 12.7–813 mm |
| Media Type | Die-cut labels and tags, receipt paper, black-mark and gap media |
| Sensors | Black mark and gap (fixed centre position); label present sensor for peel-and-present |
| Interfaces | USB 2.0 full-speed (Mini-B connector, optional strain relief); 14-pin RS-232C serial up to 115.2 kbps; 10/100 Ethernet via optional charging cradle |
| Wireless | Wi-Fi 5 (802.11ac) dual radio; WPA/WPA2, 802.1x, EAP-FAST/TTLS/TLS, PEAP, LEAP; 802.11r fast roaming + simultaneous Bluetooth 4.2 (Classic + BLE); MFi certified |
| NFC | Zebra Print Touch – NFC tap-to-pair and web help pages |
| Emulation / Command Set | CPCL, EPL, ZPL, ZBI 2.x, XML; Link-OS |
| Fonts / Character Sets | 25 bitmapped + 1 smooth scalable font (CG Triumvirate Bold Condensed); optional downloadable fonts and Chinese, Japanese, Korean, Thai, Vietnamese character sets |
| Barcodes | 1D: Code 39, Code 93, UCC/EAN-128, Code 128, Codabar (NW-7), Interleaved 2 of 5, UPC-A, UPC-E, EAN-8, EAN-13 (2/5-digit add-ons), GS1 DataBar, MSI/Plessey, Postnet; 2D: PDF417, MicroPDF417, MaxiCode, QR Code, Data Matrix, Aztec, TLC39 |
| Memory | 256 MB RAM / 512 MB Flash (128 MB user available) |
| Display | Large colour display (288 × 240 pixels), 5-way navigation, 2 soft keys, colour alerts |
| Drivers & Software | Zebra Print DNA, Link-OS, Printer Setup Utilities, Printer Profile Manager Enterprise, PrintSecure; AirWatch, SOTI MobiControl, Ivanti Avalanche |
| Mobile Printing | Android, Apple iOS (MFi), Windows |
| Battery | 3250 mAh (23.4 Wh) PowerPrecision+ Li-ion, removable (BTRY-MPP-34MA1-01) – included; optional extended-capacity battery |
| Charging | Built-in charger – via AC adapter (P1031365-042 EU / P1031365-041 UK) or single / 4-slot Ethernet charging cradle; spare batteries in 1-, 3- or 6-slot chargers – all sold separately |
| Environmental Sealing | IP54 |
| Drop Specification | Multiple 1.52 m (5 ft) drops to concrete |
| Dimensions (W × D × H) | 117.9 × 173.7 × 76.9 mm (W × L × H) |
| Weight | 0.73 kg with battery |
| Color | Black |
| Operating Temperature | −20 °C to 50 °C |
| Storage Temperature | −25 °C to 65 °C |
| Humidity | 10–90% non-condensing |
| Certifications | FCC Part 15 Subpart B, EN 55022 Class B, EN 60950, EN 55024, EN 61000-4-2/3/4/5, VCCI Class B; CE, TÜV, CSA; ENERGY STAR; FIPS support available |
| Warranty | 12 months |
| In the Box | Zebra ZQ620 Plus printer (Wi-Fi 5 + Bluetooth 4.2, USB, RS-232, NFC, black), 3250 mAh PowerPrecision+ Li-ion battery (BTRY-MPP-34MA1-01), belt clip (fitted), shoulder strap, quick start guide – AC adapter/charger, USB cable and media NOT included (order separately) |
Which version should you choose? AUX versions have the latest Wi-Fi 6 + Bluetooth 5.3 radio, AUW versions Wi-Fi 5 + Bluetooth 4.2 and AUF is Bluetooth-only. Choose a linerless version (AUX2 / AUWB) for liner-free labels, or …EC4 for the extended-capacity battery. For hospitals and clinics, see the disinfectant-ready Zebra ZQ620 Plus Healthcare. Compare other models in our Mobile Receipt Printers collection or contact our team for volume pricing.
Available Versions
ZQ62-AUFAE14-00
Wireless
Bluetooth 4.2
Linerless
No
mobile printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 79 mm, print width (max.): 72 mm, roll diameter (max.): 66 mm, speed (max.): 115 mm/s, Label Taken Sensor, Black Mark Sensor, Gap Sensor, mini-USB, RS232, Bluetooth (BLE), RAM: 256 MB, Flash: 512 MB, incl.: belt clip, shoulder strap, battery, 3250 mAh
ZQ62-AUWAE14-00
Selected
Wireless
Bluetooth 4.2 + Wi-Fi 5
Linerless
No
mobile printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 79 mm, print width (max.): 72 mm, roll diameter (max.): 66 mm, speed (max.): 115 mm/s, Label Taken Sensor, display (colour), Black Mark Sensor, Gap Sensor, mini-USB, RS232, Bluetooth (BLE), Wi-Fi (802.11ac), RAM: 256 MB, Flash: 512 MB, incl.: belt clip, shoulder strap, battery, 3250 mAh
866,42 €Out of Stock
ZQ62-AUWBE14-00
Wireless
Bluetooth 4.2 + Wi-Fi 5
Linerless
Yes
mobile printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 79 mm, print width (max.): 72 mm, roll diameter (max.): 66 mm, speed (max.): 115 mm/s, linerless platen, Label Taken Sensor, display, Black Mark Sensor, Gap Sensor, Bluetooth, Wi-Fi (802.11ac), RAM: 256 MB, Flash: 512 MB, EPL, ZPL, ZPLII, CPCL, incl.: belt clip, shoulder strap, battery, 3250 mAh
ZQ62-AUX2E14-00
Wireless
Bluetooth 5.3 + Wi-Fi 6
Linerless
Yes
mobile printer, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 79 mm, 72 mm, 66 mm, speed (max.): 115 mm/s, linerless platen, Black Mark Sensor, Gap Sensor, connection: USB (2.0), Bluetooth (Class 5.3), Wi-Fi (Wi-Fi 6), RAM: 256 MB, Flash: 512 MB, EPL, ZPL, CPCL, incl.: belt clip, 3250 mAh, removable battery, QSG, IP54
ZQ62-AUXAE14-00
Wireless
Bluetooth 5.3 + Wi-Fi 6
Linerless
No
mobile printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 79 mm, print width (max.): 72 mm, roll diameter (max.): 66 mm, speed (max.): 115 mm/s, Label Taken Sensor, Black Mark Sensor, Gap Sensor, mini-USB, RS232, Bluetooth (BLE, Class 5.0), Wi-Fi 6, RAM: 256 MB, Flash: 512 MB, incl.: belt clip, shoulder strap, battery, 3250 mAh
ZQ62-AUXAEC4-00
Wireless
Bluetooth 5.3 + Wi-Fi 6
Linerless
No
mobile printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 79 mm, print width (max.): 72 mm, roll diameter (max.): 66 mm, speed (max.): 115 mm/s, Label Taken Sensor, Black Mark Sensor, Gap Sensor, mini-USB, RS232, Bluetooth (BLE, Class 5.0), Wi-Fi 6, RAM: 256 MB, Flash: 512 MB, incl.: belt clip, shoulder strap, battery, extended, 6500 mAh
