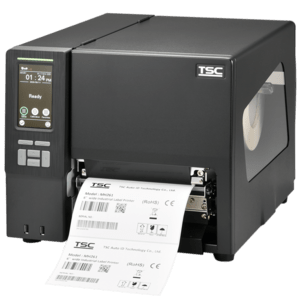

TSC MH261T Industrial Label Printer (MH261T-A001-0302)

The TSC MH261T is the 6-inch member of TSC's MH241/MH261 family – a mainstream industrial printer for wide labels with up to 168 mm print width, such as pallet, shipping and drum labels or warning and caution signage. A die-cast print mechanism, a large clear media window and a 4.3-inch colour touchscreen make it robust and easy to use. It prints in thermal transfer and direct thermal at 203 dpi and up to 305 mm/s, takes media 50.8–172.7 mm wide on 208 mm rolls and 450 m ribbons, and connects via USB, RS-232, parallel, Ethernet and two USB host ports as standard. This version, MH261T-A001-0302, comes with the standard tear-off bar – optional peel-off, cutter and internal rewinder kits are available.

Key Features

• 6-inch industrial workhorse – die-cast print mechanism, large clear media window and 168 mm print width for wide shipping, pallet and compliance labels.
• 4.3-inch colour touchscreen – intuitive multi-language menus with touch and six-button operation, plus LED status indicators.
• Thermal transfer and direct thermal – up to 305 mm/s at 203 dpi with a maximum print width of 168 mm.
• Large media capacity – label rolls up to 208 mm in diameter on 38/76 mm cores, media 50.8–172.7 mm wide; continuous, die-cut, black-mark, notched and fanfold media.
• 450 m ribbons – long ribbons on a 1-inch core mean fewer changes; ribbons coated inside or outside both work.
• Multi-connectivity – USB 2.0, RS-232, Centronics parallel, 10/100 Ethernet and two front USB host ports as standard; optional slot-in Wi-Fi 802.11ac + Bluetooth 4.2 module and GPIO.
• TSC Sense Care and remote management – self-diagnostic printhead care, near real-time status and warnings, plus SOTI Connect and TSC Console for remote fleet management.
• Easy replacement of other brands – TSPL-EZD with EPL, ZPL, ZPL II and DPL emulation runs existing label formats without changes.
• Upgrade options – heavy-duty cutter, peel-off kit, internal rewinder kit (5-inch OD), Wi-Fi + Bluetooth module, GPIO and KP-200 Plus keyboard display.

Ideal Applications

• Manufacturing – work-in-process, product marking, compliance and industrial-duty labels
• Transport and logistics – packing, order fulfilment, shipping and receiving, pallet labels
• Warehousing – inventory, location and asset labels
• Healthcare and pharma – specimen, pharmaceutical and asset tracking labels
• Wide labels – A5 shipping labels, pallet and drum labels, GHS and warning labels, custom signage

All MH261 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Which MH261 should you choose? 203 dpi is the fastest choice for barcodes and shipping labels; 300 dpi gives crisper small text, logos and fine 2D codes. Compare other models in our Industrial Label Printers collection or contact our team for volume pricing.
