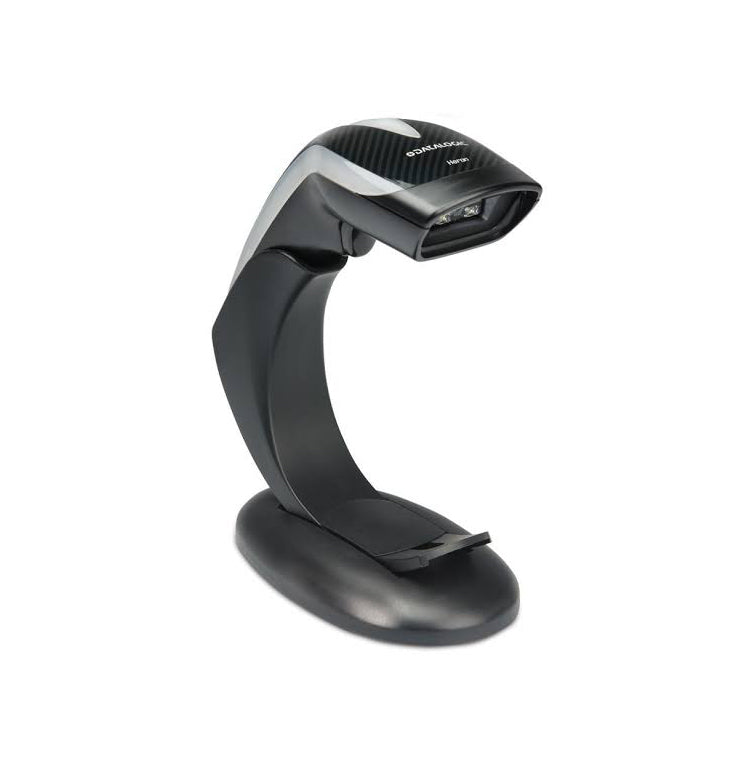

The Datalogic Heron HD3130 is a stylish corded 1D linear imager designed for modern point-of-sale checkouts, especially in fashion and specialty retail. Its distinctive design, in-mold decorated top cover, colour-changing LEDs and polyphonic speaker make it a real eye-catcher on the counter, while the CCD linear imager reliably reads all standard 1D barcodes at up to 270 scans per second. The scanner comes with a stand and switches automatically between handheld and hands-free scanning. This version, HD3130-BKK1B, is the USB kit, supplied with the AutoSense stand and a 2 m USB cable, ready to plug in and scan.
📦 What's in the box – HD3130-BKK1B
- ✅ Datalogic Heron HD3130 scanner – black, 1D linear imager, multi-interface: USB, RS-232, keyboard wedge (KBW)
- ✅ AutoSense stand – black, for hands-free scanning – the scanner switches automatically between handheld and hands-free mode

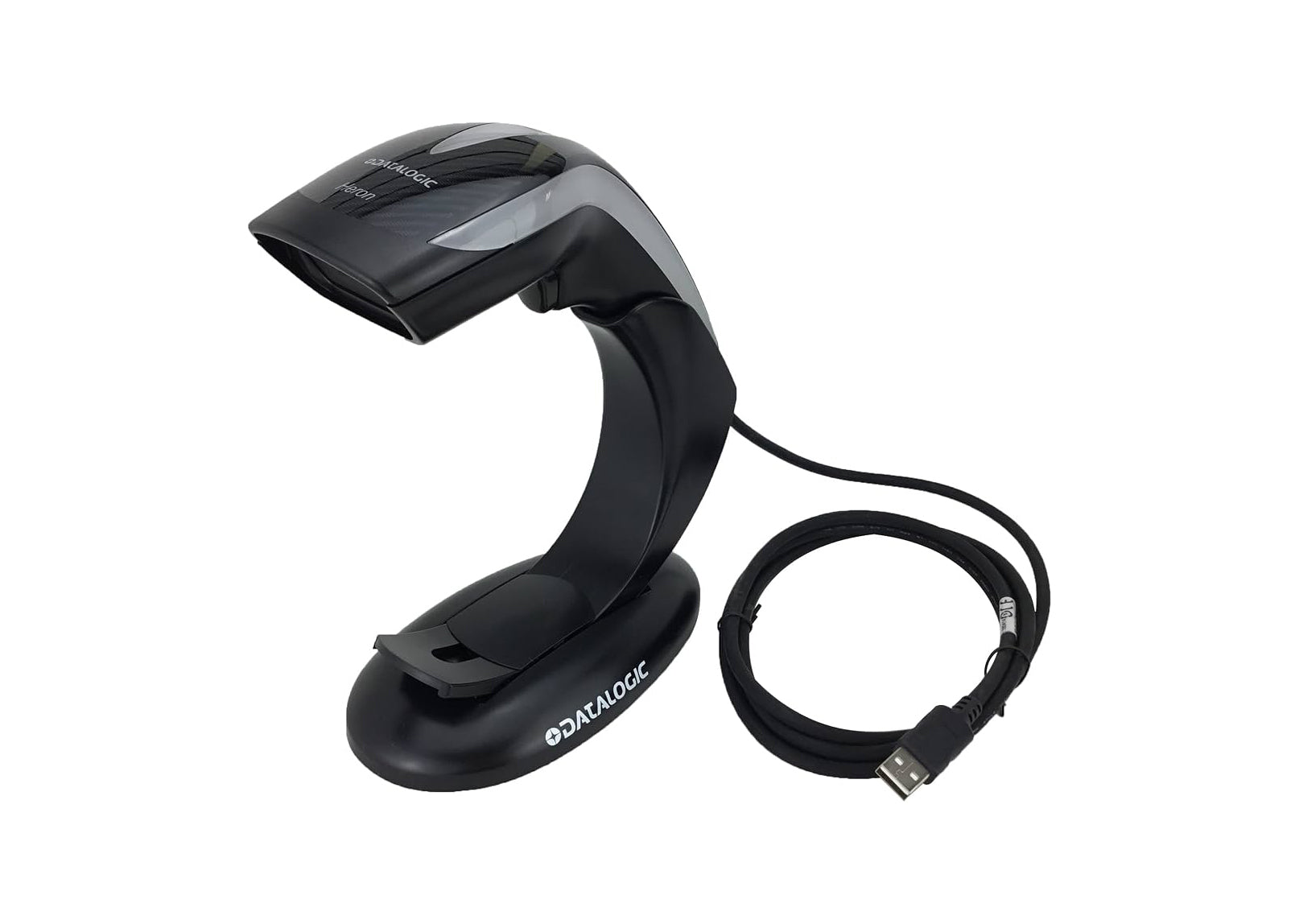

- ✅ USB cable – Type A, straight, 2 m, Datalogic 90A052065
Key Features
- 1D linear imager – reads all standard 1D barcodes, including GS1 DataBar, at up to 270 scans per second with resolution down to 4 mil. Please note: it does not read 2D codes such as QR codes or Data Matrix; for those, choose the 2D model Datalogic Heron HD3430.
- Comfortable reading range – up to 40 cm on 13 mil barcodes and up to 60 cm on 20 mil barcodes – ideal for the checkout counter.
- Handheld or hands-free – the stand is included, and the scanner switches automatically between handheld and hands-free operation.
- Datalogic Green Spot – a green spot projected onto the barcode helps with aiming and confirms every good read, even in noisy environments.
- Eye-catching, customisable design – in-mold decorated top cover (carbon-fibre or silver design), colour-changing LEDs on the sides and top and a polyphonic speaker; for larger orders the scanner can be customised with your logo, top cover and light and sound feedback (minimum order quantities apply).
- Multi-interface – USB, RS-232 and keyboard wedge in one scanner, the interface is selected by the cable; 5 VDC input; easy setup with the free Datalogic Aladdin tool and OPOS/JavaPOS utilities.
- Built for daily use – IP40 sealed, withstands repeated 1.5 m drops to concrete and works in lighting of up to 100,000 lux.
Ideal Applications
- Fashion and specialty retail – stylish checkout counters
- Retail point of sale – shops, kiosks and convenience stores
- Pharmacies and drugstores
- Hospitality – hotel front desks, cafés and restaurants
- Service counters – post offices, libraries and ticket offices
All Heron HD3130 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Stand | Cable | |
|---|---|---|---|
| HD3130-BK | ✅ AutoSense stand | ❌ Not included | View product |
| HD3130-BKK1B (this version) | ✅ AutoSense stand | USB, straight 2 m | Viewing |
Technical Specifications
| Part Number | HD3130-BKK1B |
|---|---|
| Model | Datalogic Heron HD3130 (Heron HD3100 series) |
| Scanner Type | Corded handheld 1D linear imager (does not read 2D codes) |
| Image Sensor | Solid-state CCD linear sensor, 2,500 pixels |
| Depth of Field (typical) | 5 mil: 5–15 cm; 10 mil: 2–35 cm; 13 mil: 2–40 cm; 20 mil: 2–60 cm |
| Maximum Resolution | 4 mil (0.100 mm) |
| Scan Rate | Up to 270 scans/s |
| Minimum Print Contrast | 15% |
| Symbologies | All standard 1D codes incl. GS1 DataBar linear and stacked codes, China Post (auto-discrimination) |
| Host Interfaces | USB, RS-232, Keyboard Wedge (multi-interface) – interface depends on the cable used |
| Reading Indicators | Datalogic Green Spot, colour-changing side and top illumination, good-read LED, polyphonic speaker (adjustable tone and volume) |
| Color | Black |
| Dimensions | 15.2 × 15.3 × 6.8 cm |
| Weight | 150 g |
| Input Voltage | 5 VDC ± 5% |
| Current Draw | Typical: < 300 mA; maximum: < 500 mA (at 5 V) |
| Environmental Sealing | IP40 |
| Drop Resistance | Repeated 1.5 m drops to concrete |
| Electrostatic Discharge | 16 kV (air discharge) |
| Ambient Light Immunity | 0–100,000 lux |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | −20 °C to 70 °C |
| Humidity | 5–90% RH, non-condensing |
| Software & Management | Datalogic Aladdin configuration tool, OPOS / JavaPOS utilities, remote host download |
| Warranty | 60 months |
| In the Box | Heron HD3130 scanner (black), AutoSense stand (black), USB cable (Type A, straight, 2 m, 90A052065) |
Not sure which version you need? For a PC or POS with a standard USB port, the HD3130-BKK1B USB kit is ready to use straight out of the box. If you need an RS-232 or keyboard wedge connection or want to reuse an existing Datalogic cable, choose the HD3130-BK and order the matching cable. Need to read QR codes or other 2D codes? Choose the 2D model Heron HD3430 instead. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
Available Versions
HD3130-BK
1D linear imager, multi-interface (USB, RS232, KBW)
Includes: AutoSense stand
Interface cable not included
handheld scanner, retail, 1D, linear imager, Green Spot, 270 scans/sec., multi-interface (RS232, KBW, USB), IP40, incl.: stand, order separately: interface cable, colour: black
HD3130-BKK1B
Selected
1D linear imager, multi-interface (USB, RS232, KBW)
Includes: AutoSense stand, USB cable (2 m)
handheld scanner, retail, 1D, linear imager, Green Spot, 270 scans/sec., multi-interface (RS232, KBW, USB), IP40, incl.: cable (USB), stand, colour: black
121,54 €In Stock
