| Dalies numeris | A40L-A001-0002 |

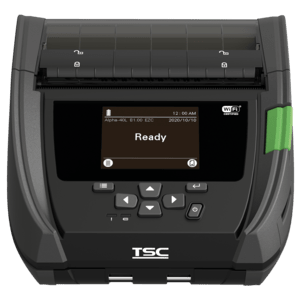

| Modelis | TSC Alpha-40L |
| Spausdintuvo tipas | Mobile label and receipt printer, 4-inch |
| Spausdinimo būdas | Direct thermal |
| Skyra | 203 dpi (8 dots/mm) |
| Spausdinimo greitis | Up to 127 mm/s (5 in/s) |
| Maks. spausdinimo plotis | 104 mm (4.09 in); max. print length 2,794 mm |
| Medžiagos plotis | 50.8–112 mm (2–4.4 in) with liner |
| Etiketės ilgis | 12.7–2,794 mm; 25.4–152.4 mm in peel mode |
| Ritinėlio skersmuo | Max. 67 mm (2.64 in) outer diameter |
| Šerdies skersmuo | 12.7 mm (0.5 in); 19.1 mm (0.75 in) with core adaptor |
| Popieriaus storis | 0.06–0.16 mm |
| Medžiagų tipai | Die-cut labels, black-mark media, receipt paper, fanfold, continuous (outside wound) |
| Jutikliai | Reflective (black mark), transmissive (gap), peel, head-open |
| Medžiagos apdorojimas | Tear-off, built-in peeler (peel-and-present) |
| Sąsajos | USB 2.0 Type-C (communication only) |
| Belaidis ryšys | Apple MFi Bluetooth 5.0 |
| NFC | Passive NFC tag – tap-to-pair |
| RFID | No |
| Spausdintuvo kalbos | TSPL-EZC (EPL2, ZPL2, CPCL emulation) or ESC/POS |
| Šriftai / simbolių rinkiniai | 8 alphanumeric bitmap fonts; Monotype CG Triumvirate Bold Condensed scalable font |
| Brūkšniniai kodai | 1D: Code 128 (UCC, subsets A/B/C), EAN-128, Interleaved 2 of 5, Standard / Industrial 2 of 5, Code 39, Code 93, EAN-13, EAN-8, UPC-A, UPC-E, EAN/UPC add-on, Codabar, Postnet, MSI, Plessey, China Post, ITF-14, EAN-14, Code 11, Telepen, Planet, Code 49, Deutsche Post Identcode / Leitcode, LOGMARS; 2D: Codablock F, GS1 DataBar, GS1 DataMatrix, MaxiCode, Aztec, PDF417, MicroPDF417, QR Code, TLC39 |
| Atmintis | 128 MB SDRAM, 128 MB Flash, microSD slot (up to 32 GB); 32-bit RISC CPU; real-time clock |
| Ekranas | 2.3-inch colour LCD (320 × 240), 7 buttons, 2 status LEDs |
| Tvarkyklės ir programinė įranga | TSC Console, SOTI Connect, OPOS driver, SDKs for Windows, Windows Mobile (CE), Android and iOS; TSC Mobile Utility app |
| Mobilusis spausdinimas | Android, iOS (MFi certified), Windows |
| Akumuliatorius | 6200 mAh, 7.4 V Li-ion smart battery, removable (included); spare battery OP-P-SB-001-0001 |
| Įkrovimas | In-printer with the supplied power adapter; 1-slot / 4-slot battery chargers (OP-P-BC1-001 / OP-P-BC4-001); 1-slot / 4-slot docking cradles (OP-P-DC1-001 / OP-P-DC4-001); 12–24 V and 12–60 V vehicle power adapters |
| Apsaugos klasė | IP54 without case (paper path excluded) |
| Atsparumas kritimams | 1.8 m (2.5 m with protective case); 1.0 m tumble; MIL-STD-810G drop and vehicle vibration |
| Matmenys (P × G × A) | 160 × 79 × 191 mm |
| Svoris | 985 g (with battery) |
| Spalva | Black |
| Darbinė temperatūra | −20 °C to 50 °C, 10–90% non-condensing (charging 0–40 °C) |
| Laikymo temperatūra | −30 °C to 70 °C, 10–90% non-condensing |
| Garantija | 24 months (battery 12 months; print head 25 km or 12 months, platen 50 km or 12 months) |
| Pakuotės turinys | TSC Alpha-40L printer (Bluetooth + USB-C + NFC, black), 6200 mAh 7.4 V Li-ion smart battery, power adapter with EU power cable, belt clip, quick start guide – USB-C cable, labels and protective case NOT included (order separately) |
